vCenter Upgrade fails with error "[Errno 2] No such file or directory: '/storage/updatemgr/software-update#######/stage/update/patching_backup_config.json'"

Products

• VMware vCenter Server

Issue/Introduction

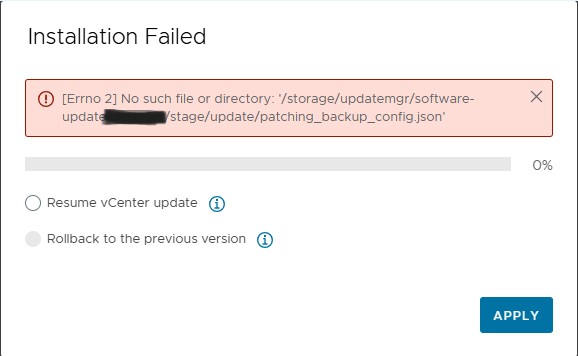

• Upgrading vCenter via VAMI fails with error:

  [Errno 2] No such file or directory: '/storage/updatemgr/software-update#######/stage/update/patching_backup_config.json'

• In the /var/log/vmware/applmgmt/update_microservice.log we see error:

  The provided token is not entitled for accessing the Broadcom online repository for the selected version. Please provide a valid active token for the selected version.

Environment

VMware vCenter Server

Cause

The vCenter server is unable to download the RPMs due to an invalid token.

Resolution

1. Generate a valid token by following the steps at VCF authenticated downloads configuration update instructions
2. Update the download URLs in the VAMI > Update > settings.
3. Update Lifecycle Manager depository URL at vSphere Client.

Additional Information

• If you are not seeing the link to generate/download tokens. For more information please check Not seeing the link to Generate download token for vCenter or ESX updates.


• Similar symptoms might occur due to various reasons:
  • license version mismatch or wrong site ID. For more information please check "A general system error occurred: Cannot download VIB" error while staging the ESXi patch using lifecycle manager with Token based URL - Token Not Entitled.


  • vCenter Server Update Fails with "[errno 2] No such file or directory: '/storage/updatemgr/software-update-stage/update/patching_backup_config.json'. " and "Timeout" Errors When ISO is Attached via Remote Console


  • Error: "No such file or directory: patching_backup_config.json" during vCenter patching due to Input/Outout error


  • Error: "No such file or directory: patching_backup_config.json" when updating vCenter via vCenter Server Appliance Management Interface (VAMI)


  • vCenter Upgrade Fails with Error: "No such file or directory: patching_backup_config.json"
