SRM Server cannot connect to Unknown Service error after upgrade - VMware Live Recovery
Article ID: 441483
Updated On:
Products
Issue/Introduction
Introduction
You encounter an authentication failure in VMware Live Recovery (VLR) after performing a version upgrade. This issue typically appears when you attempt to re-pair sites or configure protection groups. The underlying cause is often an unsupported interoperability state between the vCenter Server and the recovery appliance, which prevents the acquisition of the required security tokens.
Symptoms
You see the following error in the VLR interface:
SRM Server cannot connect to Unknown Service at https:####:443/sms/sdk. Access to perform the operation was denied.
Your vmware-dr.log on the VLR appliance contains these entries:
SOAP request returned HTTP failure; , ####>), /pbm/sdk>, method: fetchResourceType; code: 500(Internal Server Error); fault: (vmodl.fault.SecurityError)msg = "Received SOAP response fault from [####, ####>), /pbm/sdk>]: fetchResourceType --> Error while fetching ActAsToken"N2Dr5Fault22PbmConnectionDownFault9ExceptionE(Fault cause: dr.fault.PbmConnectionDownFault)
VLR site pairing appears connected, but the error persists after recreating the site pair or restarting vCenter/VLR servers
Environment
vCenter Server 9.0.2
VMware Live Recovery 9.0.2
VMware Site Recovery Manager 9.0.2
Cause

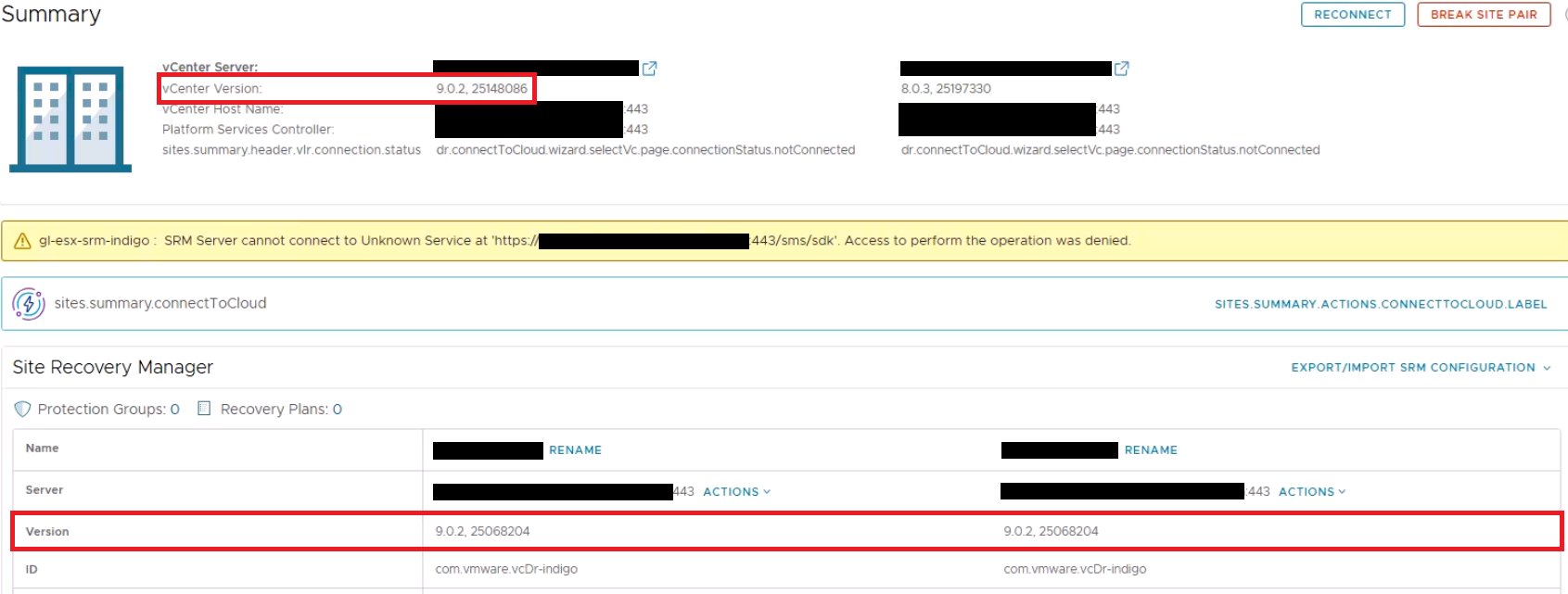

Unsupported interoperability configuration, which breaks the SAML token delegation chain, causing the 'Error while fetching ActAsToken' when the appliance attempts to connect to the vCenter Storage Profile Service. From the VLR Site Pair summary page screenshot above, vCenter Server 9.0.2 is incompatible with VMware Live Recovery 9.0.2
Resolution
Upgrade your VMware Live Recovery or SRM appliances to version 9.0.4 or 9.0.5 as required by your vCenter version:
- Verify Compatibility: Review the Broadcom Interoperability Matrix to confirm the supported versions for your vCenter and SRM/VLR components
- Perform Upgrade: See Download Broadcom products and software for steps to download this release and General Procedure to upgrade VMware Live Recovery(SRM) and vSphere Replication(VRMS) for the upgrade procedure
- Appliance Convergence: If you are moving to version 9.0.4 or later, you must follow the appliance convergence path. Refer to Steps to Converge to VMware Live Recovery Appliance for instructions
- Reconfigure Site Pairing: After the upgrade, re-establish the site pair to refresh the solution user registrations and security tokens
