vSAN -- "vSAN Cluster Configuration Consistency" error is showing up along with "Stats Elections" (= Stats Primary Election)

Products

• VMware vSAN
• VMware vSAN 7.x
• VMware vSAN 8.x
• VMware vSAN

Issue/Introduction

The following vSAN Health Alarms are observed:



• vSAN Cluster Configuration Consistency - Stats object policy configuration is inconsistent

Showing one or more vSAN Hosts

Sample output:

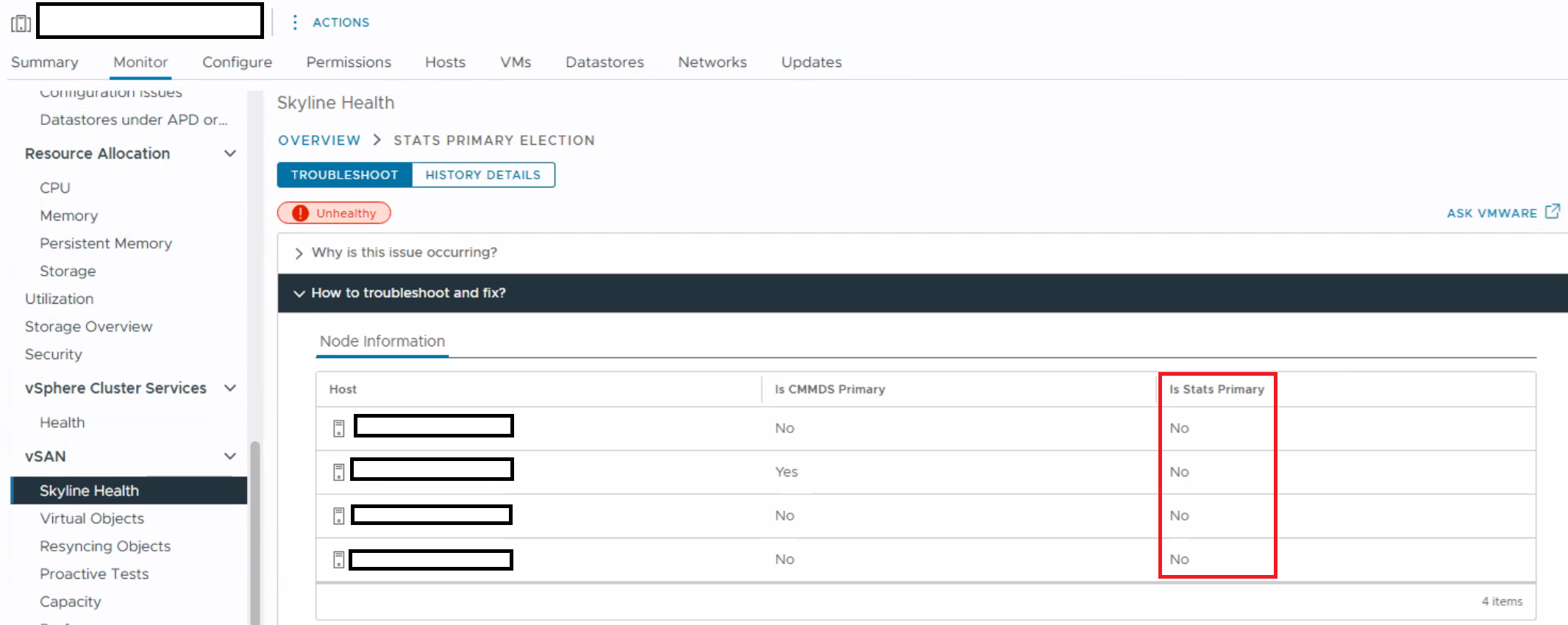

• Stats Primary Election - None of the listed Hosts are shown as "Is Stats Primary"

Sample output:



Environment

VMware vSAN (All Versions)

Cause

One or more vsan.stats Objects are in state "missing".

This can be determined by:

1.) Open a SSH/Putty Session to any of the vSAN Hosts

2.) Run the following command:

esxcli vsan debug object list | grep "vsan.stats"



3.) Output is showing one or more "vsan.stats" with state "missing"

Sample output:

Resolution

1.) Delete all vsan.stats objects(= folders) by following the steps outlined in the section "Resolution" in KB 401679

2.) Restart the vsanmgmtd service on all vSAN Hosts by opening an SSH/Putty Session to each Host and run:



/etc/init.d/vsanmgmtd restart

Additional Information

vSAN Health Service - Performance Service - Stats DB object conflicts check
