Troubleshooting NSX OSPF

Products

VMware NSX

Issue/Introduction

When troubleshooting NSX OSPF failures there are a few fundamental guidelines to follow in getting to a resolution. This article outline the different steps to follow in analyzing and resolving OSPF issues.

Environment

VMware NSX

Cause

Common OSPF failure reasons seen in NSX are :

Peer connectivity issue
Hello timers mismatch
Mismatch areas
Mismatch passwords
Routing loops

Resolution

Verify basic connectivity
- Verify the T0 interface is connected to the correct segment/VLAN and OSPF is enabled at interface level.
- Check there is connectivity between the Edge T0 and the TOR.
Verify OSPF Configuration/settings
- From NSX UI go to the T0 GW and verify the OSPF config. Click on edit if needed.
- Verify OSPF route redistribution is enabled to OSPF.
- Network Types: (should match)
  - Broadcast: A router will only form an OSPF adjacency on a broadcast network with a DR/BDR
  - Point to Point: No DR/BDR Election. Simpler output and less adjacencies to track
- Topology type:
- Active/Standby: Metric 65534 (hard coded)
- Active/Active: OSPF ECMP up to 8 links. 2 interfaces can be enabled per edge node. Metric 20.
- Commands:
  - get ospf database external x.x.x.x
- Parameters:
  - Parameters in the Hello packets (Dst IP: 224.0.0.5 – All SPF Routers) must match between OSPF:
    - Area
    - Subnet Mask configured on that interface
    - MTU (MTU-Ignore is not supported by NSX-T)
    - OSPF Timers (Hello / Dead)
    - Interface Type (P2P / Broadcast ...)
    - Router Priority
    - Unique Router-ID (If no loopback, the highest interface IP add is used)
    - Authentication (if setup)
Verify OSPF Neighbor states:
- From NSX UI go to the T0 GW and click on OSPF neighbors > View to check the states:
  - - Down – No hello packets
    - Attempt – Used for manually configured neighbors
    - Init – Hello packets have been received from neighbor
    - 2 way - Identifies compatible neighbors
    - Exstart/Exchange – Master/Slave relationship.
    - Loading – Link State information is exchanged. LSR/LSA/LSU
- Full - Full state indicates everything is functioning normally
  - Note that the 2-way state is normal in a broadcast network. In this case, routers only achieve the FULL state with their DR and BDR.
Commands and logs:
- get logical-router
- vrf <t0_sr_vrf_id>
- get route || ospf
- get ospf | interface | neighbor | database | route
- get bfd-config | bfd-sessions
- Logs:
  - <Edge bundle>/var/log/frr/: ospf_support_bundle.log and frr.log
  - <Edge bundle>/var/log/syslog
  - <Edge bundle>/edge/tier0_sr_get_ospf | route | neighbor | interface | database
- Edge CLI Debugs
  - Set debug logs on OSPF
  - From inside the T0 VRF
    - set debug
    - set routing debug ospf
    - get routing debug ospf
  - To disable debug logs:
    - press ctrl C
    - clear routing debug ospf
    - clear debug
Verify there are no routing loops
- traceroute <target IP>
- VMs may not be able to ping their destination.

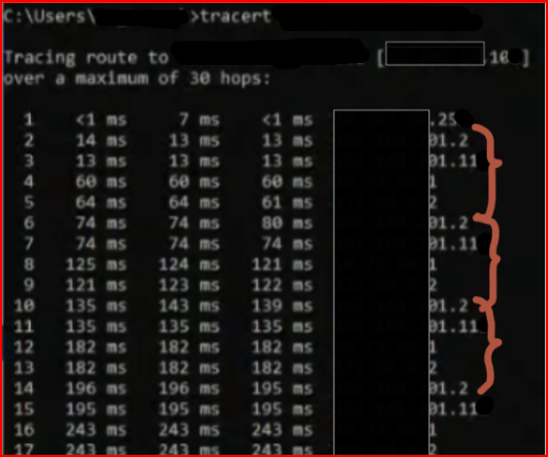

  - You will see something similar to:
    - In the above example this is a routing loop in physical infrastructure and not within NSX
