The Hardware Compatibility Check fails with "Device compatibility must be verified manually" due to the device firmware being blank (VCF 9.1, ESXi 9.0.2, Cisco HSM)

Products

• VMware vSphere ESXi

Issue/Introduction

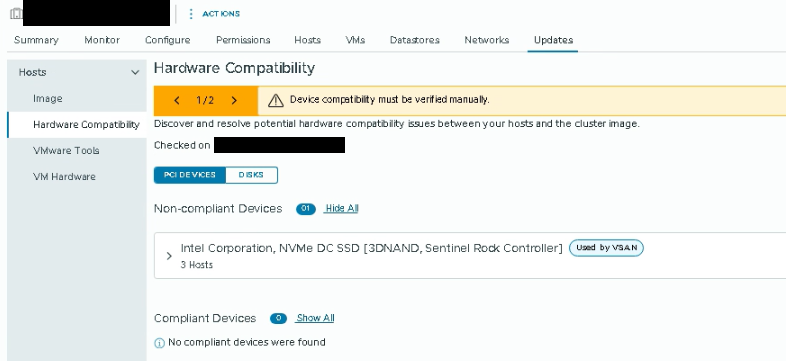

Trying to upgrade ESX hosts from 9.0.2 to 9.1 fails with "Device compatibility must be verified manually" and "No compliant devices were found." This will be present on VSAN hosts in the cluster.

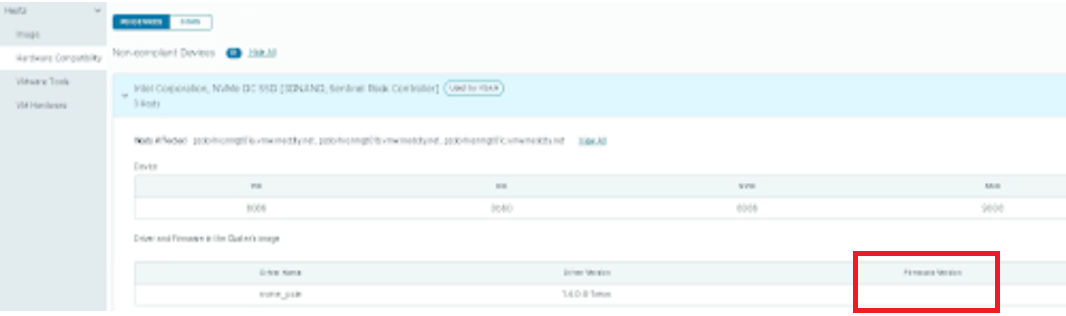

The firmware section of cluster image compliance scan shows an empty value for the Firmware Version:















Environment

• VMware vCenter 9.1.0.0100
• VMware ESX 9.0.2.0 (current)
• VMware ESX 9.1 (upgrading to)
• VMware VSAN ESA
• Cisco Intersight HSM

Cause

Cisco Intersight HSM is not certified or supported for vLCM HCL validation. This lack of certification is the reason the hardware compatibility check fails to retrieve firmware data, resulting in a blank firmware status.

Resolution

Stop using HCL validation for firmware in vSphere Lifecycle Manager (vLCM) until a version of Cisco Intersight HSM is released that officially supports this feature.

Additional Information

vLCM Remediation Warning: Firmware Information Unavailable Without Hardware Support Manager
https://knowledge.broadcom.com/external/article?articleNumber=412988

VMware Hardware Compatibility Matrix
https://compatibilityguide.broadcom.com/

Contact Broadcom support for additional assistance
