System Settings details are hidden or invisible for Read-Only users after upgrading to version 30.2.7

Products

• VMware Avi Load Balancer

Issue/Introduction

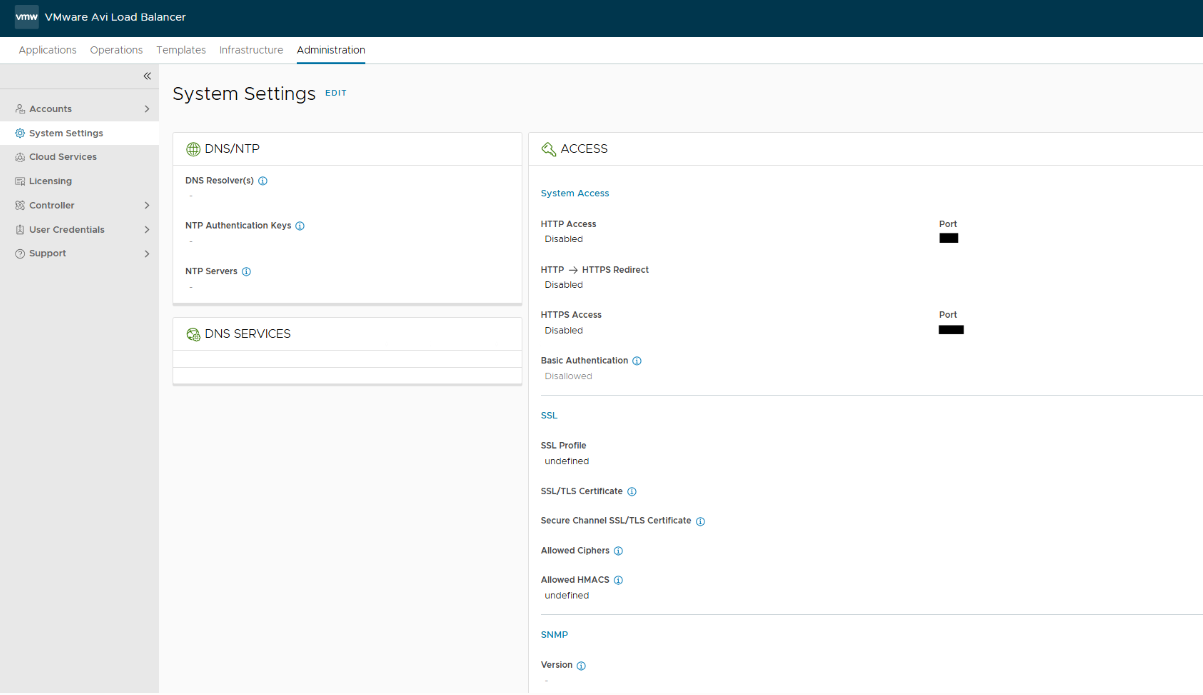

• Upgrading to version 30.2.7 introduces an issue where users with Read-Only access are unable to view the details within the Administration > System Settings section.

Resolution

Workaround:

1.There is currently no workaround available within the GUI.

2. Affected users must use CLI/API to view the system configuration details.

3. Please follow the below steps to view the system configuration.



CLI :

• Log in to the controller CLI interface.
• Navigate to the shell environment by executing the shell command.

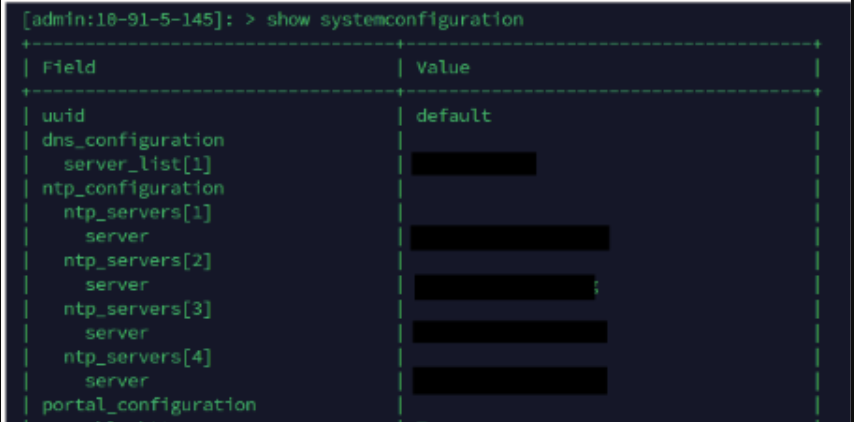

• Run the show systemconfiguration command.
• The necessary details will be visible directly inside the system configuration output screen.



API :

• Use the below API request to get the system settings page.

  https://<Controller IP address>/api/systemconfiguration


  Fix :

  • Fix for this issue is targeted to be released in future version release of Avi LB software.
    • Subscribe to this article to be updated on the fix status; see Subscribe to a Broadcom knowledge article by article or product
