PAIR NAMESPACE option is greyed out in VCF Automation 9.1

book

Article ID: 447027

calendar_today

Updated On:

Products

VMware Live Recovery

Issue/Introduction

  •  In VCF Automation (VCFA) 9.1, the PAIR NAMESPACE option is unavailable or appears greyed out in the Protection and Recovery interface.
  • The following error appears in snap-service.log:

{"level":"error","message":"Failed to get cluster for datastore native snapshot capability check","error":"DB record not found"}

snap-service.log. {"level":"info","timestamp":"2026-06-25T08:49:38.701Z","C":"capability/local_datastore_capability_service.go:87","message":"Datastore capability check result","opID":"6a3b4961","datastoreMoId":"datastore-33","siteId":"eada4c1f-c145-4178-a16a-####","capability":"snapshot","hasCapability":false}

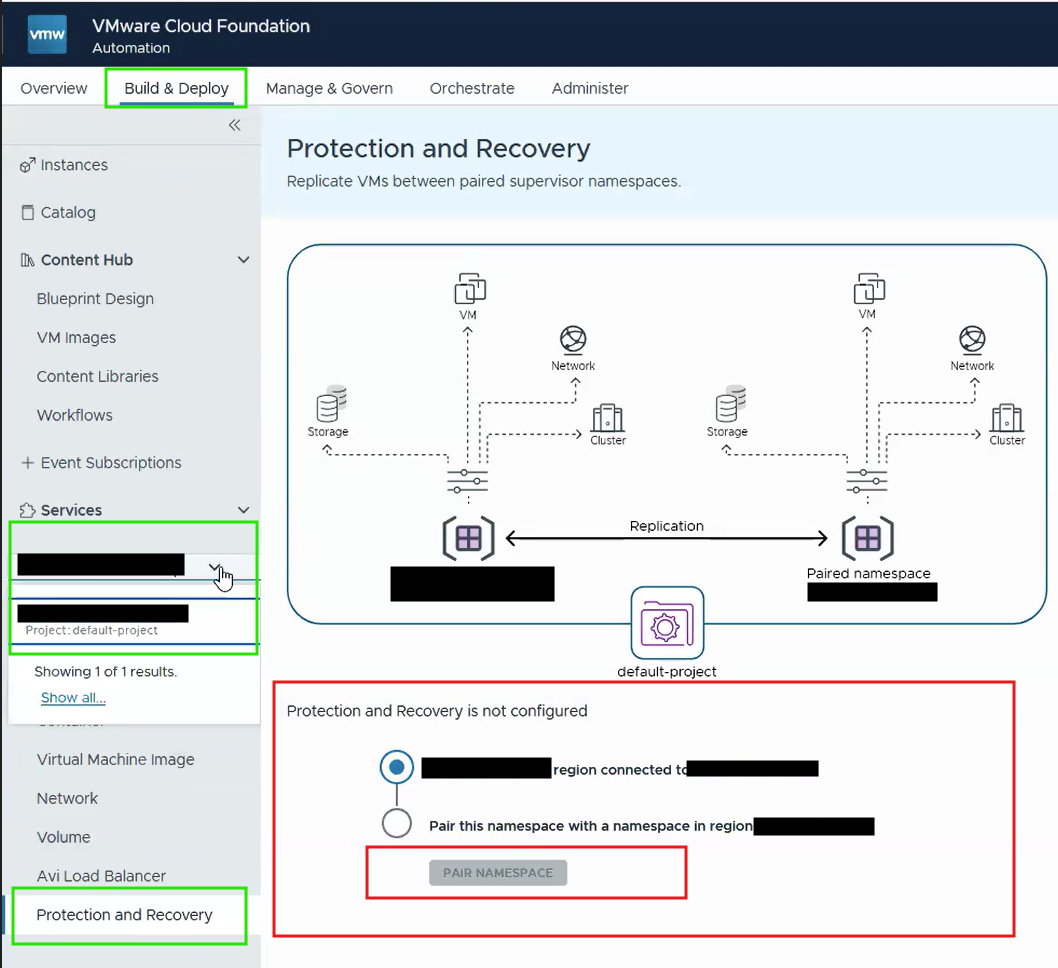

  • From VCFA UI, it would show as below.

Environment

  • VCF Automation 9.1.x

  • VMware Live Recovery 9.1.x

  • vSAN ESA  9.1 with Compute-only cluster configuration.

Cause

  • The pairing option is disabled due to an unsupported storage configuration. This occurs when the target site uses a "Compute only cluster - vSAN" that points to a remote vSAN datastore identical to the primary site's datastore. This prevents the system from identifying local native snapshot capabilities required for pairing.

  • Sharing the same vSAN Datastore as the source site with the target site is an unsupported configuration.

  • vSAN Compute Cluster Purpose-built vSphere cluster optimized to consume storage from vSAN storage cluster or vSAN HCI cluster.

  • Upon checking the log /var/log/vmware/snapservice/snap-service.log  on Data Protection Appliance, the below events would show up for compatibility.

/var/log/vmware/snapservice/snap-service.log:

snap-service.log.2:{"level":"info","timestamp":"2026-06-25T08:49:38.701Z","C":"capability/local_datastore_capability_service.go:87","message":"Datastore capability check result","opID":"6a3b4961","datastoreMoId":"datastore-33","siteId":"eada4c1f-c145-4178-a16a-####","capability":"snapshot","hasCapability":false}

{"level":"info","timestamp":"2026-06-28T12:10:46.937Z","C":"vcenter/configuration.go:109","message":"Cannot determine whether cluster has NativeSnapshot capability for cluster.","opID":"6a3f5f24","cluster":"domain-c9","err":"DB record not found Failed during DB operation record not found"}

{"level":"error","timestamp":"2026-06-28T11:58:46.928Z","C":"capability/local_datastore_capability_service.go:113","message":"Failed to get cluster for datastore native snapshot capability check","opID":"6a3f5df6","datastoreMoId":"datastore-1600","siteId":"07259f92-60d6-47f9-ab3f-####","error":"DB record not found Failed during DB operation record not found"

Resolution

  1. Verify if the target cluster is configured as a Compute Cluster - vSAN.

  2. Ensure the target site utilized a vSAN datastore that is different from the primary site vSAN datastore.

  3. If using non-vSAN storage (e.g., NFS), disable the compute-only vSAN cluster setting.

  4. Migrate virtual machines out of the remote datastore before unmounting or changing configurations.

  5. For further assistance, Contact Broadcom Support.
