Unable to copy suspended vApp template from one catalog to another catalog

Products

• VMware Cloud Director

Issue/Introduction

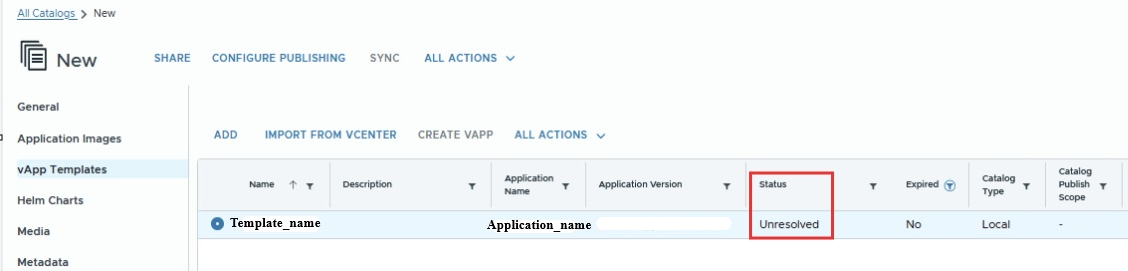

• While copying a suspended vApp template from one catalog to another, template shows as “unresolved” state in the destination catalog.



• The copy operation fails with the error "Internal Server Error - query did not return a unique result: 2".



• In the /opt/vmware/vcloud-director/logs/vcloud-container-debug.log you can see error as below:

  ERROR | Backend-activity-pool-2387 | CopyContentsActivity | [Activity Execution] Uncaught Exception during Activity execution. Recent phase: com.vmware.vcloud.vdc.impl.CopyContentsActivity$AfterCopyPhase@7b59e9d7 - Handle: urn:uuid:#########-####-####-####-########, Current Phase: CopyContentsActivity$AfterCopyPhase | requestId=#########-####-####-####-########,request=POST https://domain_name/api/catalog/#########-####-####-####-########/action/copy,requestTime=1773649537071,remoteAddress=##.##.##.##:20520,userAgent=Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:148.0) Gecko/201...,accept=application/*+xml;version 40.0.0-alpha vcd=#########-####-####-####-########,task=#########-####-####-####-######## activity=(com.vmware.vcloud.backendbase.management.system.Task
Activity,urn:uuid:#########-####-####-####-########) activity=(com.vmware.vcloud.vdc.impl.CopyContentsActivity,urn:uuid:#########-####-####-####-########)
java.util.concurrent.ExecutionException: com.vmware.ssdc.util.LMException: Internal Server Error
        at com.vmware.vcloud.activity.executors.ActivityRunner.run(ActivityRunner.java:136)
        at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:515)
        at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
        at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
        at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
        at java.base/java.lang.Thread.run(Thread.java:829)
Caused by: com.vmware.ssdc.util.LMException: Internal Server Error
        at com.vmware.ssdc.util.LMException.wrap(LMException.java:135)
        at com.vmware.ssdc.library.ExceptionFactory.createFromMultiple(ExceptionFactory.java:32)
        at com.vmware.vcloud.vdc.impl.CopyContentsActivity.afterWaitForFabricInTx(CopyContentsActivity.java:1287)
        at com.vmware.vcloud.vdc.impl.CopyContentsActivity$AfterCopyPhase.invoke(CopyContentsActivity.java:1086)
        at com.vmware.vcloud.activity.executors.ActivityRunner.runPhase(ActivityRunner.java:175)
        at com.vmware.vcloud.activity.executors.ActivityRunner.run(ActivityRunner.java:112)
        ... 5 more
Caused by: com.vmware.vcloud.api.presentation.service.InternalServerErrorException: Internal Server Error
        at com.vmware.vcloud.common.future.FutureUtil.convertExecutionException(FutureUtil.java:264)
        at com.vmware.vcloud.common.future.FutureUtil.checkCompletedFuture(FutureUtil.java:203)
        at com.vmware.vcloud.fabric.storage.storedVm.impl.CreateFromExistingStoredVmNonBlockingActivity$WaitForVmCloudUuidInInventoryPhase.invokeInt(CreateFromExistingStoredVmNonBlockingActivity.java:988)
        at com.vmware.vcloud.fabric.storage.storedVm.impl.CreateFromExistingStoredVmNonBlockingActivity$WaitForVmCloudUuidInInventoryPhase.invoke(CreateFromExistingStoredVmNonBlockingActivity.java:955)
        ... 7 more
Caused by: org.hibernate.NonUniqueResultException: query did not return a unique result: 2
        at org.hibernate.impl.AbstractQueryImpl.uniqueElement(AbstractQueryImpl.java:844)
        at org.hibernate.impl.CriteriaImpl.uniqueResult(CriteriaImpl.java:328)
        at jdk.internal.reflect.GeneratedMethodAccessor157.invoke(Unknown Source)
        at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.base/java.lang.reflect.Method.invoke(Method.java:566)
        at com.vmware.vcloud.common.db.HibernateClassLoaderHelperBeanPostProcessor$SessionInvocationHandler.invoke(HibernateClassLoaderHelperBeanPostProcessor.java:280)
        at com.sun.proxy.$Proxy150.uniqueResult(Unknown Source)
        at com.vmware.vcloud.common.persist.CriteriaProxy.uniqueResult(CriteriaProxy.java:261)
        at com.vmware.vcloud.ovf.scaffold.OvfScaffoldHibernateVirtualMachineDao.findVirtualMachineByValRef(OvfScaffoldHibernateVirtualMachineDao.java:63)
        at com.vmware.vcloud.fabric.storage.copy.impl.CopyVmActivity.getSourceVmSnapshotForClone(CopyVmActivity.java:261)
        at com.vmware.vcloud.fabric.storage.copy.impl.CopyVmActivity$IntraVcCopyPhase.invoke(CopyVmActivity.java:357)
        ... 7 more

Environment

VMware Cloud Director 10.6.x

Cause

The issue occurs due to duplicate database entries for the VM reference, causing a non-unique result error during the copy operation of the suspended vApp template.

Resolution

Broadcom is aware of this issue and a fix is planned for an upcoming release of VMware Cloud Director. Please subscribe to this KB by following the steps in the article:Subscribe an article for future updates on the resolution.
