NSX Manager Search Service Degraded due to Indexing Exception
Article ID: 433070
Updated On:
Products
Issue/Introduction

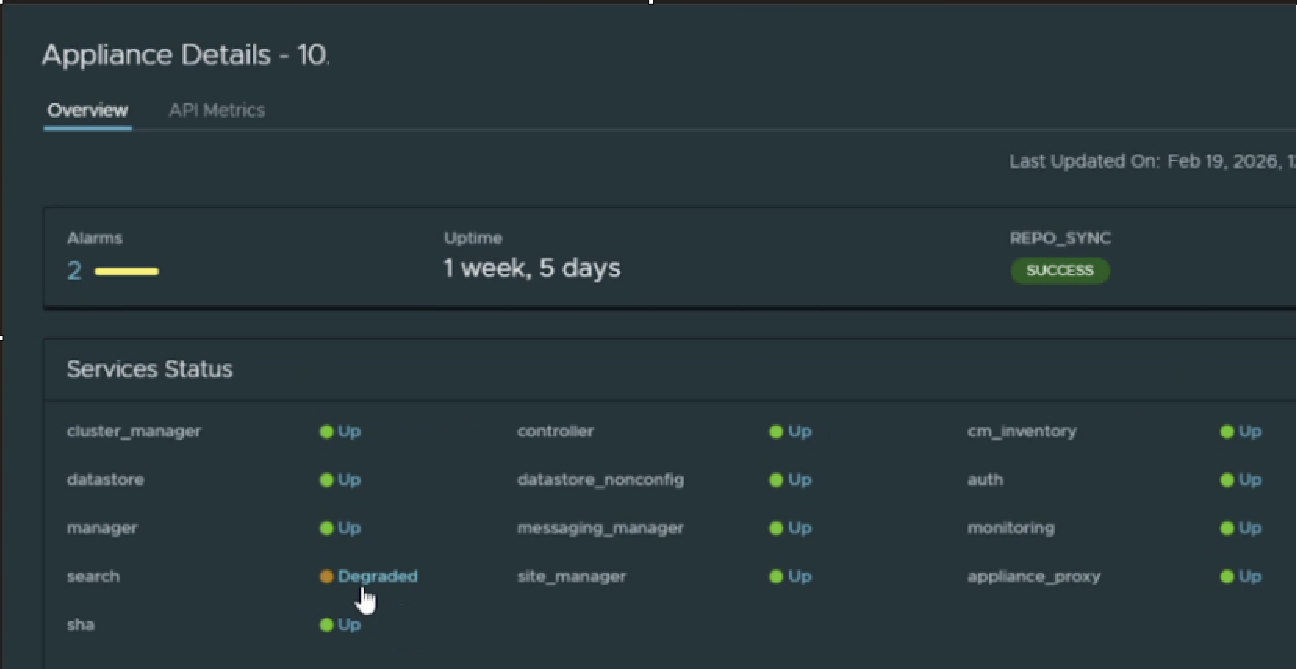

The NSX Manager Search service status displays as Degraded in the UI, and users are unable to perform inventory searches. A rolling reboot of the NSX Manager cluster does not resolve the issue.
The var/log/manager/ logs indicate an indexing failure associated with a specific group ERROR [nsx@6848 comp="nsx-manager" errorCode="MP60511" level="ERROR" subcomp="manager"] [Indexing: DataProvider] Could not convert UFO object to Dto UfoObject{operationType=CREATE, descriptor=IndexingTypeDescriptor{tableName='Group', streamTag=POLICY}, identifier=string_id: "/global-infra/domains/<DOMAIN_NAME>/groups/<GROUP_ID>=="...}java.lang.reflect.InvocationTargetException: null at jdk.internal.reflect.GeneratedMethodAccessor.invoke(Unknown Source) ~[?:?]...Caused by: com.vmware.nsx.management.search.common.exceptions.SearchException: INDEXING_EXCEPTION at com.vmware.nsx.management.search.dataprovider.PolicyGroupDataProvider.getIsGeoIpGroupToIndex......ERROR [nsx@6848 comp="nsx-manager" errorCode="MP60503" level="ERROR" subcomp="manager"] [Indexing: Processing] An error occurred while trying to process UfoObject...com.vmware.nsx.management.search.common.exceptions.SearchException: CANNOT_INVOKE_PROVIDER
Environment
Cause
During site or configuration onboarding in a federated environment, a parent group is onboarded to the Global Manager (GM) containing a PathExpression that references a nested child group. If the child group is a Transport Node (TN) member group, it is correctly excluded from onboarding. However, the parent group bypasses the filter, resulting in a dangling path reference on the GM. When the system attempts to resolve this missing group path, it throws an ObjectNotFoundException, which causes an INDEXING_EXCEPTION that crashes the indexing process and degrades the Search service.
Resolution
To resolve the issue following the KB NSX Manager Search service status is not UP
If the above steps do not resolve the issue, raise a support ticket with Broadcom support selecting NSX as the product.
Handling Log Bundles for offline review with Broadcom support.
