Invalid IP range format error when creating a VPN endpoint using certificates.

Products

• VMware NSX

Issue/Introduction

• Local endpoints are being modified or created to include a site certificate using multi-hyphenated FQDNs in CN or SAN field.
  • vpn-test.com certificate is able to be applied to the endpoint and the GUI shows it as successfully realised.
  • vpn-test-2.com certificate does not work.


• VPN Local Endpoint status remains in a "Failed" or "Error" state during realization.

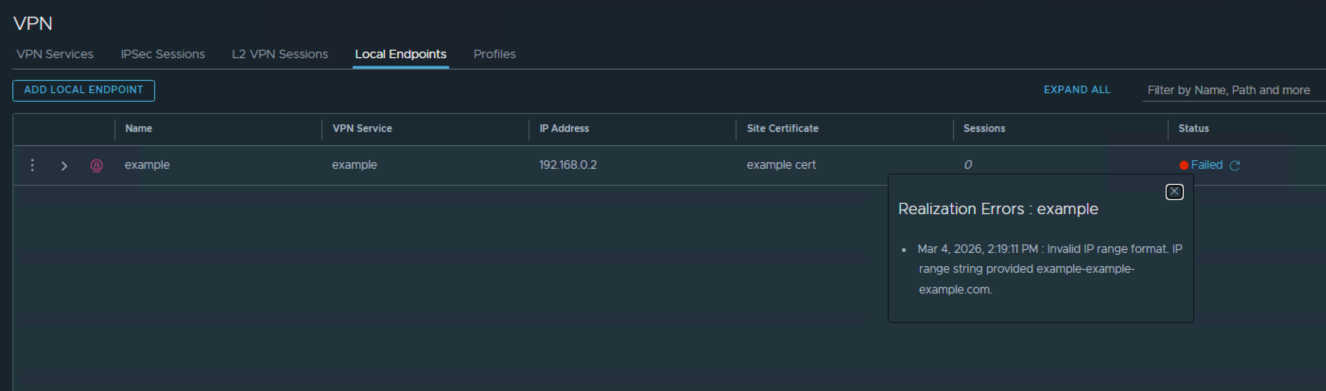

• The following error message appears in the NSX UI  (when clicking the failed state) or API response: Invalid IP range format. IP range string provided [FQDN-With-Double-Hyphen]


• Log lines similar to the below are encountered on the NSX Manager in /var/log/syslog .

2026-02-23T14:00:02.795Z <Manager Name> NSX 124518 POLICY [nsx@6876 comp="nsx-manager" level="WARNING" subcomp="manager"] IPSecVpnLocalEndpoint /infra/tier-1s/<Tier1>/ipsec-vpn-services/<IPsec VPN Name>/local-endpoints/<Endpoint Name> Realization failed Error com.vmware.nsx.management.common.ip.utils.InvalidIPRangeFormatException: Invalid IP range format. IP range string provided <FQDN involved in Cert>

Note: The preceding log excerpts are only examples. Date, time, and environmental variables may vary depending on your environment.

Environment

 VMware NSX

Cause

This issue is due to a defect in the product code where the validation engine incorrectly identifies FQDNs with multiple hyphens as malformed IP ranges.

Resolution

This issue is resolved in VMware NSX 4.2.4, available at Broadcom downloads.

If you are having difficulty finding and downloading software, please review the Download Broadcom products and software KB.


Workaround

Use an alternative FQDN/Certificate that does not use multiple hyphens.

Additional Information

Add Local Endpoints - TechDocs
