Inaccessible vSAN objects after disk failure on vSAN node with vSAN FS enabled

Products

• VMware vSAN

Issue/Introduction

The vSAN cluster previously experienced disk failure on one or more hosts; following disk replacement, the following symptoms were observed.

Symptoms :

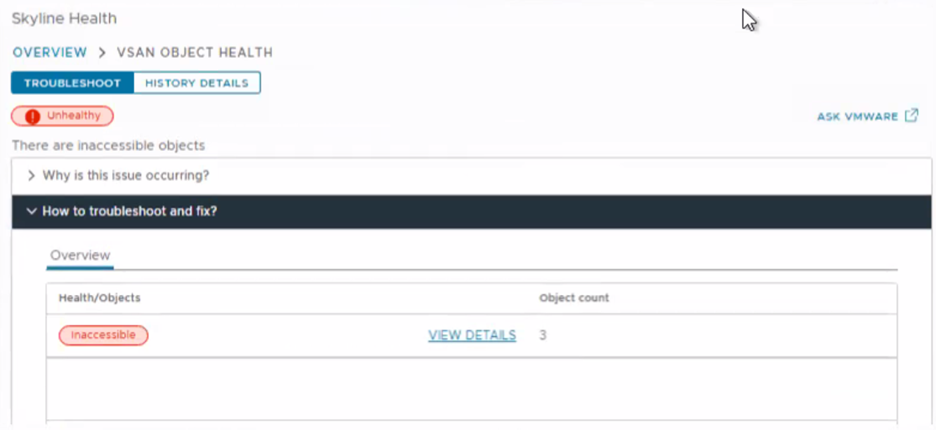

• vSAN skyline health check - VSAN OBJECT HEALTH reports Inaccessible objects,



• There are no VMs or any workload impacted.

• vSAN file service infrastructure health check is healthy



Environment

VMware vSAN 8.x

Cause

• The inaccessible objects are stale and belong to FSVM(File Server VM) which were residing on the host with a faulty disk.

• The objects are stale as the components which make up these objects resided on failed disk.

• Example of an inaccessible FSVM object impacted by this issue:

   Object UUID: ########-####-####-####-############
   Version: 20
   Health: inaccessible - Lost data availability.(APD)
   Owner: 00000000-0000-0000-0000-000000000000
   Size: 0.00 GB
   Used: 0.00 GB
   Used 4K Blocks: 0.00 GB
   Policy:
      stripeWidth: 1
      proportionalCapacity: [0, 100]
      hostFailuresToTolerate: 0
      affinity: ['########-####-####-####-############']
      forceProvisioning: 1
      affinityMandatory: 1
      spbmProfileId: ########-####-####-####-############
      spbmProfileGenerationNumber: 0
      objectVersion: 20
      migrateForDecom: 1
      CSN: 1237
      spbmProfileName: FSVM_Profile_DO_NOT_MODIFY
      locality: HostLocal

     Configuration:

        Component: ########-####-####-####-############
        Component State: ABSENT,  Address Space(B): 8589934592 (8.00GB),  Disk UUID: ########-####-####-####-############,  Disk Name: N/A
        Votes: 1,  Host UUID: None

     Type: N/A
   Path: N/A
   Group UUID: ########-####-####-####-############
   Directory Name: N/A



• It could be seen that :

  • They belong to FSVMs from the "sbpmprofilename".

  • This object belongs to FSVM pinned to host with UUID mentioned in the affinity parameter. To find this host the output of command esxcli vsan cluster get can be validated.

  • The object is inaccessible as the component is absent from "Component State"

  • The inaccessible object is stale as the "Disk Name" and "Host UUID" is empty.

Resolution

If the above symptoms and cause match, kindly open a case with Broadcom Technical Support to assist with clearing up the stale inaccessible vSAN objects.
