VCF Installer fails to add hosts during deployment due to hostname mismatch with subject alternative name

Products

• VMware Cloud Foundation

Issue/Introduction

• This article provides steps to address the issue encountered during VMware Cloud Foundation Installation while validating ESX hosts to be added to the management domain. The error message

  "javax.net.ssl.SSLPeerUnverifiedException: Certificate for <esx.example.com> doesn't match any of the subject alternative names: [localhost.localdomain]" and "Certificate for <esx.example.com> doesn't match any of the subject alternative names: [localhost.localdomain]"

  "javax.net.ssl.SSLPeerUnverifiedException: Certificate for <esx-short-name> doesn't match any of the subject alternative names: [esx.example.com]" and "Certificate for <esx.example.com> doesn't match any of the subject alternative names: [esx.example.com]"

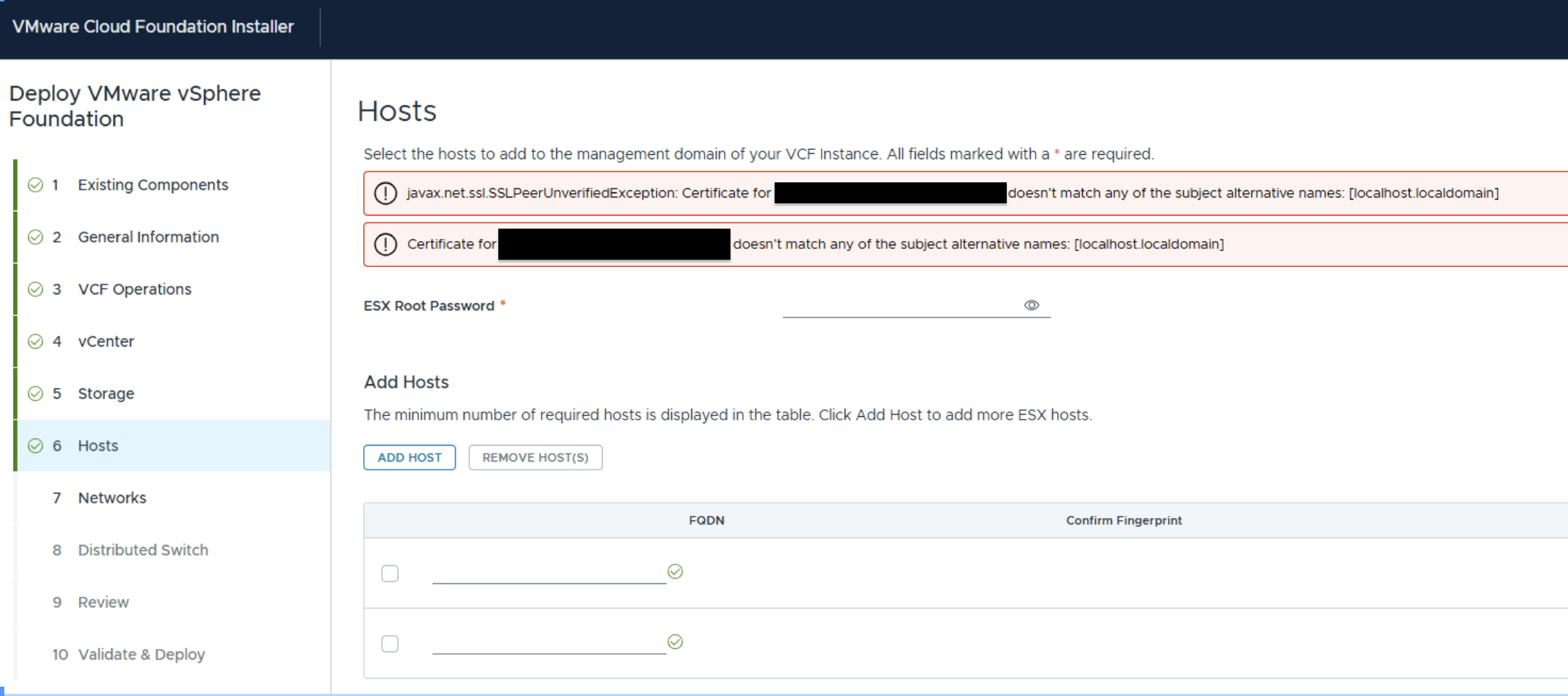

• A similar error message is seen in the VCF Installer UI.


• The following error may be observed in /var/log/vmware/vcf/domainmanager/domainmanager.log

ERROR [vcf_dm,####,f722] [c.v.e.s.c.c.v.esx.EsxCommandExecutor,dm-exec-8]  Failed to connect to <esx.example.com>
com.vmware.vim.vmomi.client.exception.SslException: javax.net.ssl.SSLPeerUnverifiedException: Certificate for <esx.example.com> doesn't match any of the subject alternative names: [localhost.localdomain]


Environment

VCF 9.0

Cause

Once you have configured the ESX host's identity by providing a hostname, you must regenerate the self-signed certificate to ensure the correct common name is defined.

During the installation of ESX, the installer generates a self-signed certificate for each ESX host, but the process is performed prior to the ESX identity being configured. This means all ESX hosts have a common name in their self-signed certificate of localhost. localdomain. To ensure that the connection attempts and validation do not fail, you must manually regenerate the self-signed certificate after the hostname has been configured.

Resolution

Procedure: Generate ESX Host Certificate

1. Configure the Hostname and FQDN

• • Ensure the ESX host has a valid Fully Qualified Domain Name (FQDN) configured in the Direct Console User Interface (DCUI).

  • If the DNS name is incorrect or missing, update the hostname immediately.

    • Reference: Changing the hostname of an ESX host.

2. Validate FQDN via SSH

• • SSH into the ESX host.

  • Run the hostname command to verify that the FQDN is being returned correctly.

3. Regenerate the Certificate

• • Generate a new host certificate.

    • Reference: Regenerate the Self-Signed Certificate on ESX Hosts.

4. Reboot the Host

• • Reboot the ESX host directly from the DCUI to apply the changes.

    • Reference: Rebooting an ESX Server host.

5. Validate Certificate in Browser

• • Open a web browser and navigate to https://esx-fqdn.example.com.

  • Inspect the certificate in the browser settings.

  • Go to Details > Certificate Subject Alternative Name to confirm the correct FQDN is listed.

    • NOTE: If, after following the procedure above to regenerate the self-signed certificates, the certificate still shows the default name, see the steps in the Additional Information below.

6. Finalize in VCF Installer

• • Return to the VMware Cloud Foundation (VCF) Installer.

  • Remove the hosts from the current list.

  • Re-enter the host FQDN.

  • Select "Confirm all signatures" and click Next.

Additional Information

The suggested changes are part of ESX host preparation. For more details, refer to VCF 9.0 Documentation under a sub-section of  Preparing ESX Hosts for VMware Cloud Foundation or vSphere Foundation

If regenerating the self-signed certificates does not appear to be working, these additional steps may be necessary on the ESX host(s):

1. Navigate to the SSL folder, run the command:
       # cd /etc/vmware/ssl
2. Create a folder named Backup, run the command:
       # mkdir backup
3. Move the existing SSL certificate files (rui.crt and rui.key) to the backup folder, run the command:
     # mv rui.* backup
4. Regenerate the new SSL certificates, run these commands:
      # /sbin/generate-certificates.sh
5. Verify that the rui.* files were recreated in /etc/vmware/ssl.
6. Restart management agents (services.sh restart). For more information, see Restarting the Management agents on an ESXi or ESX host (320280).
