Error: Duplicate key host when adding VMs or reprotecting in vSphere Replication

Products

• VMware Live Recovery

Issue/Introduction

Symptoms:

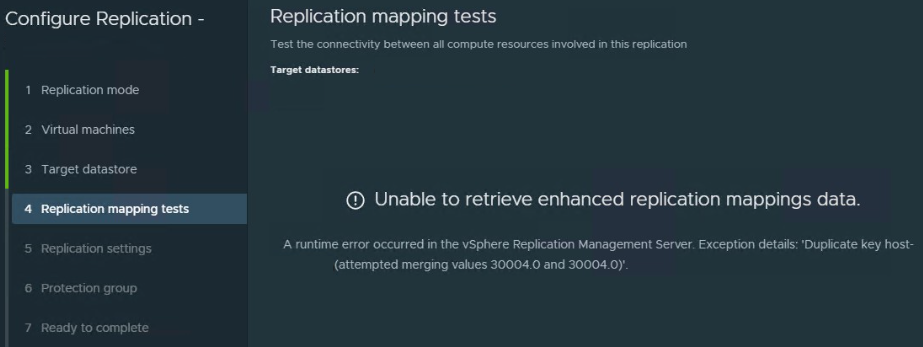

• Unable to Add VMs to Enhanced Replications.

Error: "Unable to retrieve enhanced replication mappings data"
"A Runtime error occurred in the vSphere Replication Management Server. Exception deails: 'Duplicate key host-#### (attempted merging values 30004.0 and 30004.0)'.

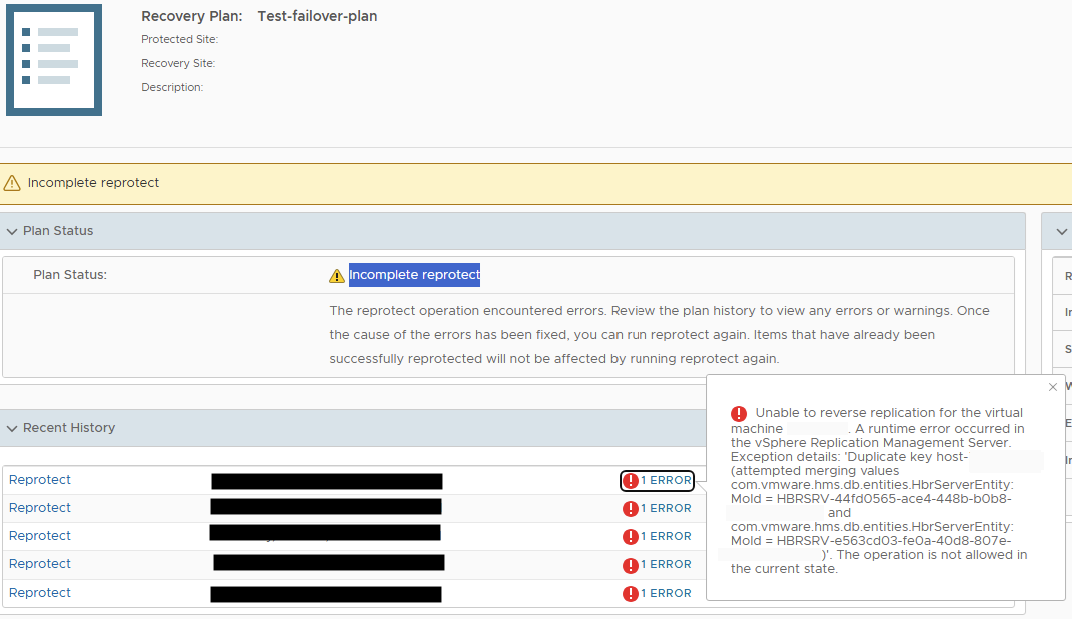

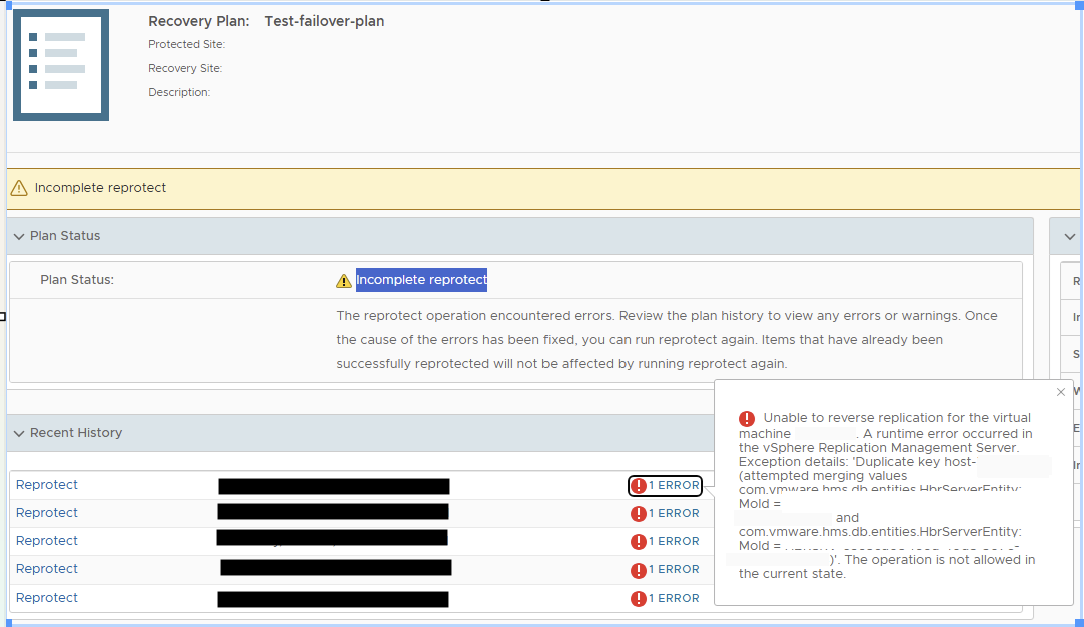

• Unable to reprotect recovered VMs. Reprotect operations fail with the following error:

"Unable to reverse replication for the virtual machine 'vm_name'. A runtime error occurred in the vSphere Replication Management Server. Exception details: 'Duplicate key host-## (attempted merging values com.vmware.hms.db.entities.HbrServerEntity: MoId = HBRSRV-44fd0565-ace4-448b-b0b8-######### and com.vmware.hms.db.entities.HbrServerEntity: MoId = HBRSRV-e563cd03-fe0a-40d8-807e-#########)'. The operation is not allowed in the current state."

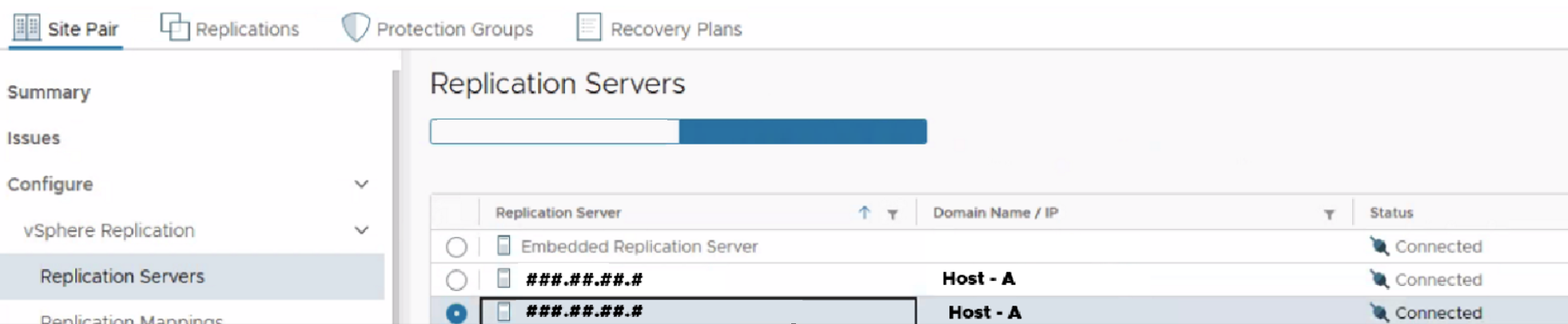

• Duplicate host entries appear under replication servers sections:




• Validation of /opt/vmware/hms/logs/hms.log confirms that the workflow fails because multiple vSphere Replication Server entries exist for the same ESXi host, resulting in a duplicate key condition during replication processing.

####-##-## ##:##:##.### ERROR response.filter.I18nActivationResponseFilter [tcweb-2] (..hms.fault.ExceptionToFaultConverter) {operationID=40b41651-d19d-49d7-9652-0bc9aca88478-reprotect:mx:gn:m4-HMS-1393195} [] | Fault conversion needed. Method 'getReverseReplicationInfo' cannot throw
com.vmware.vim.binding.vim.fault.InvalidState: Duplicate key host-## (attempted merging values com.vmware.hms.db.entities.HbrServerEntity: MoId = HBRSRV-44fd0565-ace4-448b-b0b8-######## and com.vmware.hms.db.entities.HbrServerEntity: MoId = HBRSRV-e563cd03-fe0a-40d8-807e-########)



Environment

• VMware vSphere Replication 9.x
• VMware Live Recovery 9.x

Cause

• The issue is caused by duplicate host entries in the vSphere Replication Management Server database.
• The VRMS database contains multiple records for the same ESXi host (host-##). During reprotect, vSphere Replication attempts to identify the replication server associated with the host but encounters multiple matching entries, resulting in a duplicate key exception.
  • This condition is commonly introduced when:
    • ESXi hosts are removed or disconnected while replications are active.
    • Stale replication server records are not cleaned up correctly.
    • Database inconsistencies remain after upgrades, reconfigurations, or replication server changes.
  • As a result, reverse replication cannot be created and the reprotect operation fails.



Resolution

If the symptoms and log entries described in this article match your environment, and the cause has been confirmed, contact Broadcom Support for assistance. The resolution requires validation of the environment and application of the appropriate corrective action.
