How do I look at underlying Delivery metrics from my Experience paths (Underlying Delivery Paths)?

Products

• AppNeta

Issue/Introduction

We are investigating an issue with Experience paths, and would like to review the underlying Delivery path and determine if there's network related issues being caused by the path.

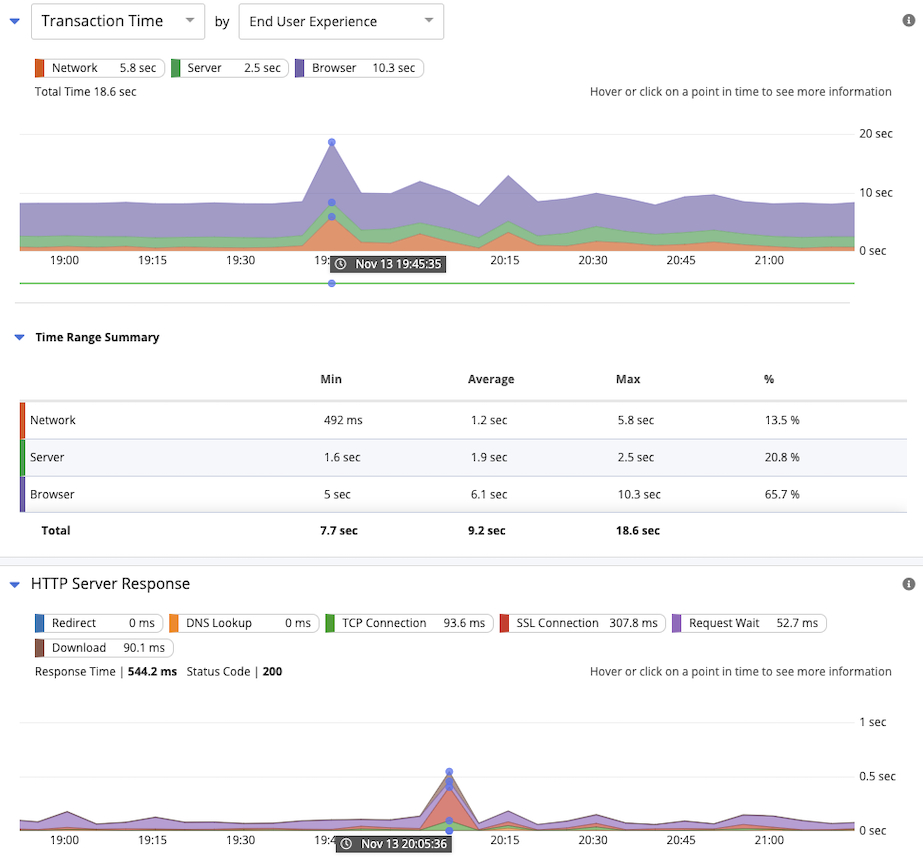

For example, we want to learn more about the following spike in Transaction Time from our web path that we see from this particular time 18:52 - 21:14, focusing on the increase in time seen at 19:45:35:

Resolution

When reviewing Experience paths data, you can switch to the delivery path for the shown timeline by clicking on "Application Delivery":

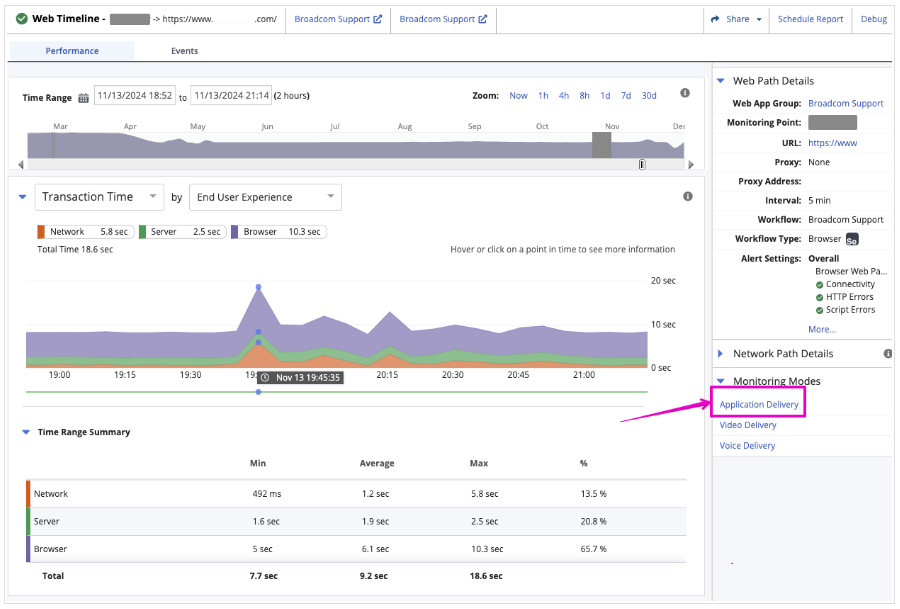

1.  For the above example, select the Application Delivery link on the right hand side:

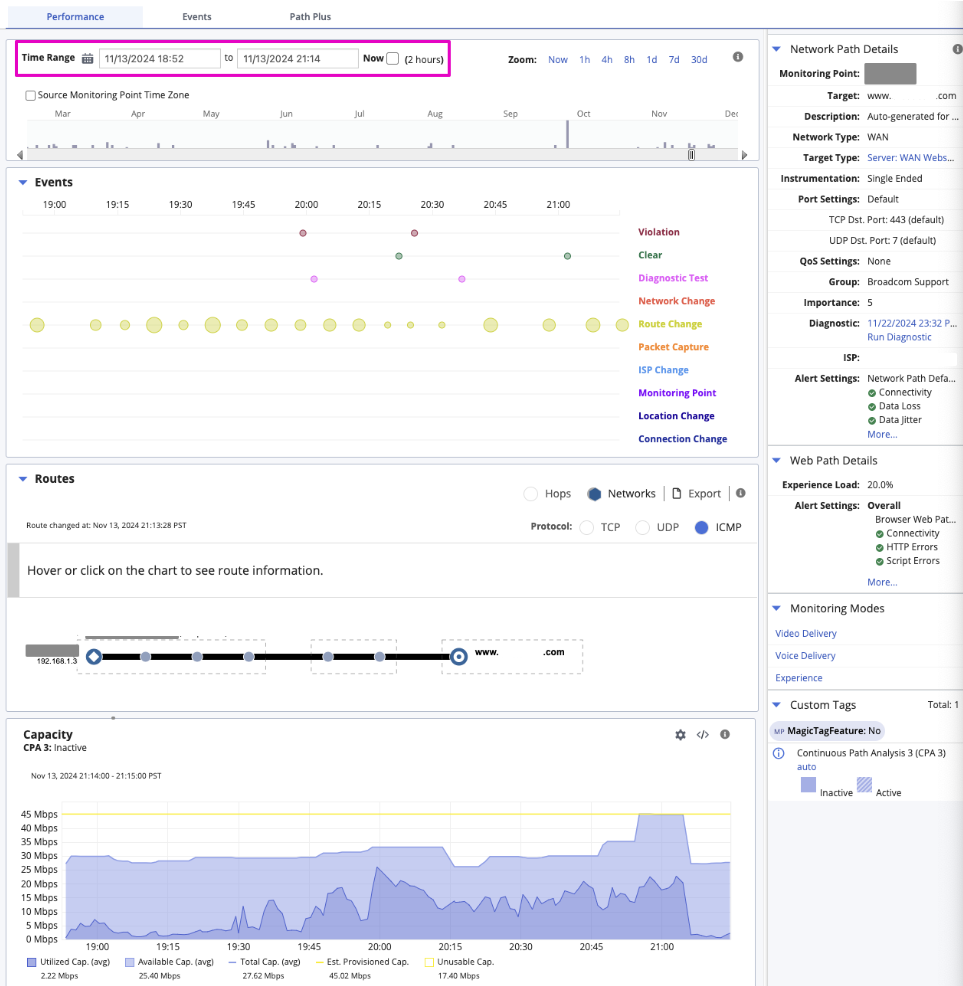

2.  This will switch to Webpaths Delivery page, we can see the Delivery metrics for the application in questions without having to adjust the windowed time:

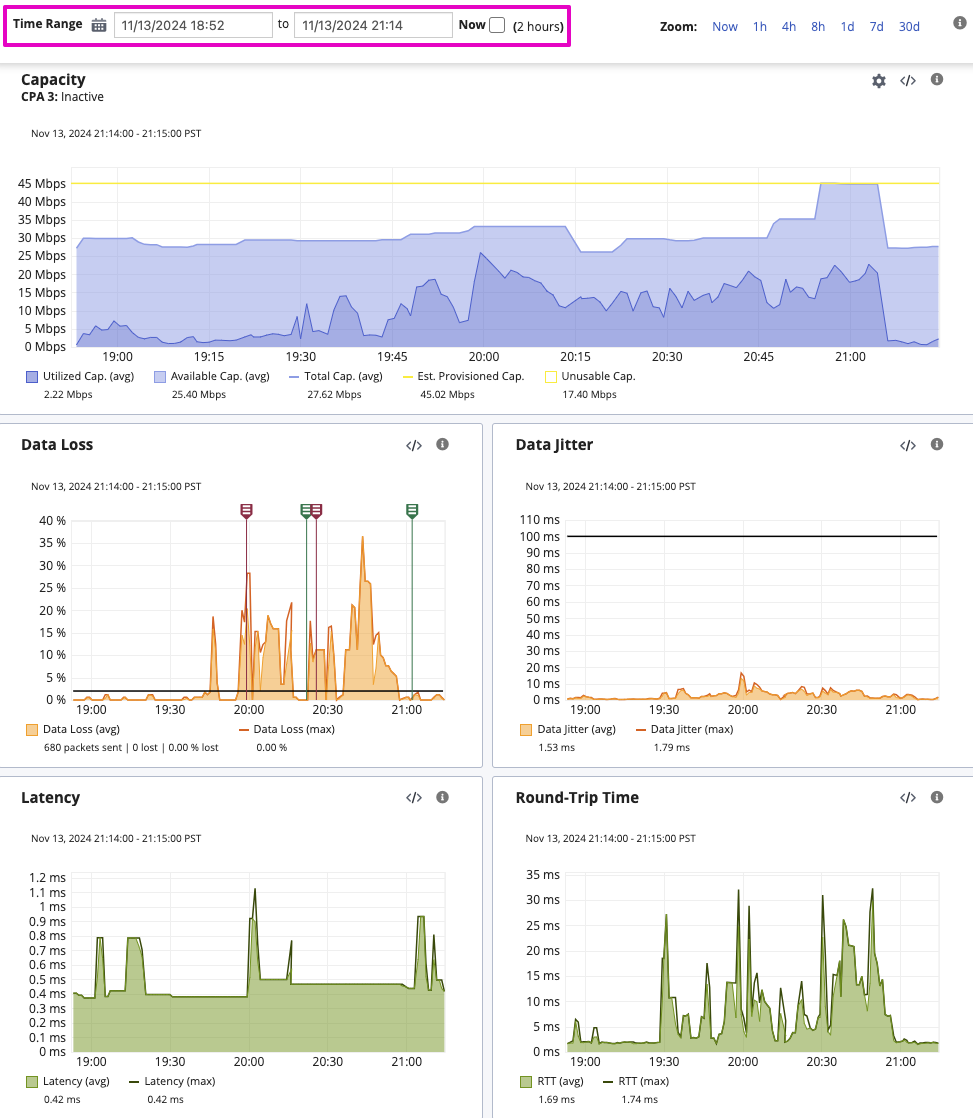

3.  We can quickly scroll down to review the available metrics for this path, such as data loss, data jitter, latency and round-trip time:





4.  We can still share the deeplink to the Delivery or Experience path using the Share option, as seen below.
