Oracle 19c Quick Install Guide for Windows

Products

Data Loss Prevention Oracle Standard Edition 2

Issue/Introduction

This is a Quick Install guide for the Oracle Database Server

For the full "DLP Quick Install Guides" please visit the following link: DLP Quick Install Guides

Environment

Windows

Cause

This is a quick install guide for an Oracle Standard installation

Resolution

VERSION DISCLAIMER:
Please note that the following instructions are version agnostic, and can generally be used on any currently supported version. As such you will find several variables denoted such as "<DLPversion>" to indicate where a version number "should" be used. You will need to replace these variables with the appropriate version that you are attempting to use. Below are a few examples of such translations...

<DLPversion> = 15.8, 16.0, 16.0.1 or 16.0.2
<DLPfullversion> = 16.0.10000.60631
<ORACLEversion> = 193000 or 19.3.0.0
<JREversion> = jdk8u322-b06 or 8u322b06

Note: Username and Passwords provided below are for example only, choose your own values to match your company requirements.

Download the Oracle Software: https://support.broadcom.com/

Oracle 19c Implementation Guide:

https://techdocs.broadcom.com/us/en/symantec-security-software/information-security/data-loss-prevention/16-0-2/implementing-the-database.html

Installation_Tools.zip: This is found in the DLP Platform Package "Symantec_DLP_<DLPversion>_Platform_Win-IN_<DLPfullversion>.zip"

Stand Alone Installation: When installing Oracle on its own server, please note that you MUST install the Oracle Client on the Enforce Server.

Downloading the Oracle Tools: Extract the "Symantec_DLP_<DLPversion>_Platform_Win-IN_<DLPfullversion>.zip" file
1 - Browse the installation directory for "DLP\<DLPversion>\New_Installs\Oracle_Configuration\<ORACLEversion>_64_bit_Installation_Tools_Win"
2 - Create the following directory…
C:\Oracle_Installers\Tools
3 - Unzip the "<ORACLEversion>_64_bit_Installation_Tools_Win.zip" into the new "C:\Oracle_Installers\Tools" directory

Open Firewall Ports:
Quick Configuration Guide for Windows Firewall

Installing Oracle:
1 - Create the "C:\oracle\product\<ORACLEversion>\db1" directory

2 - Copy the contents of the "WINDOWS.X64_<ORACLEversion>_db_home.zip" into the "C:\oracle\product\<ORACLEversion>\db1" directory
3 - Set the ORACLE_HOME environment variable
Creating Environment Variables Quick Install Guide
4 - Open CMD (Administrator)
5 - CD %ORACLE_HOME%

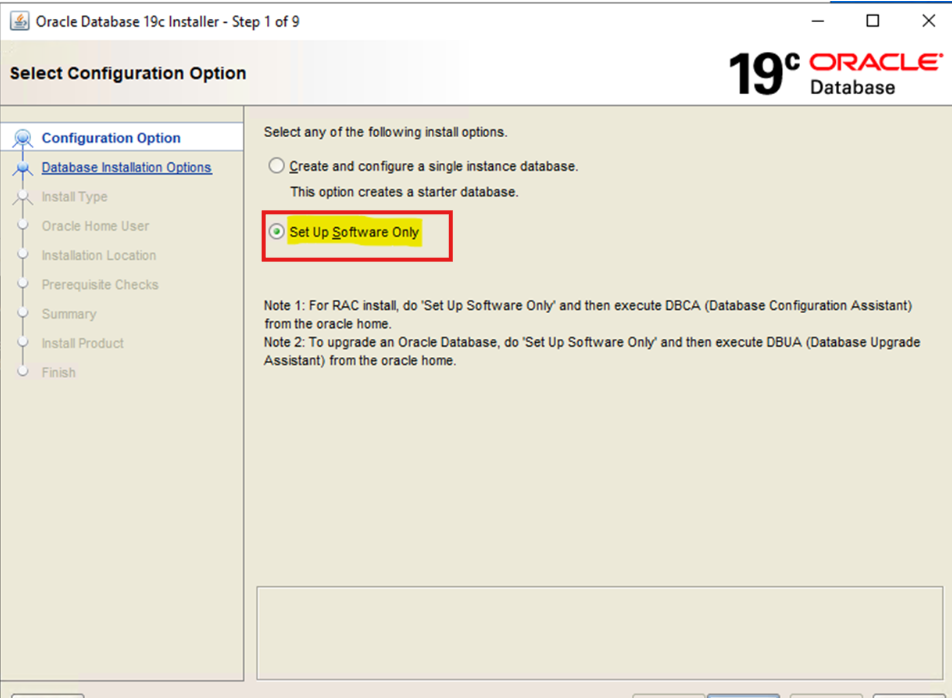

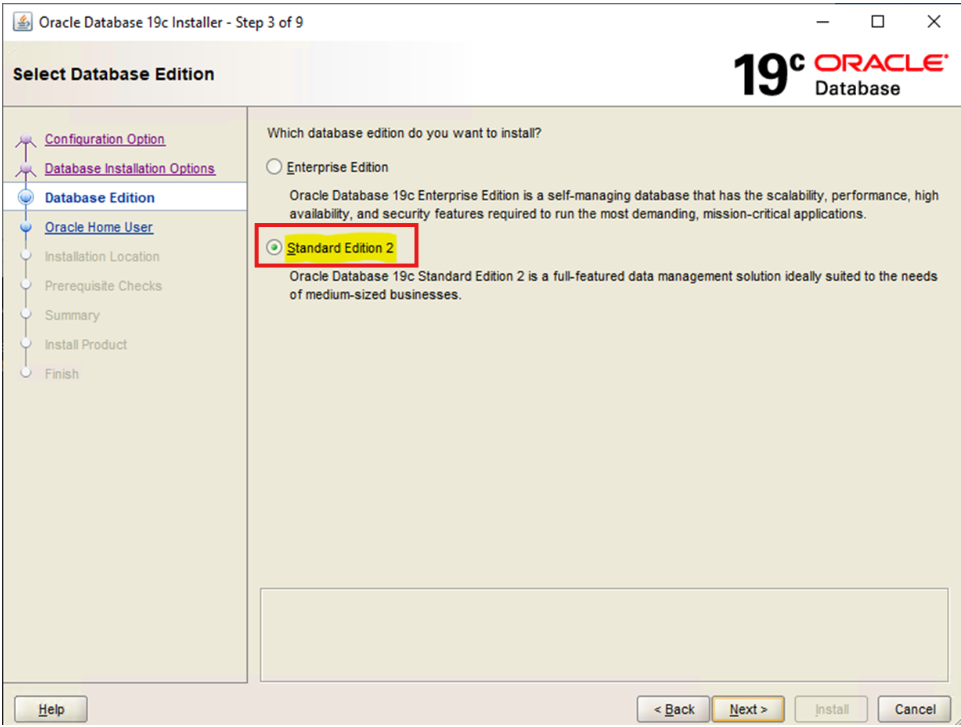

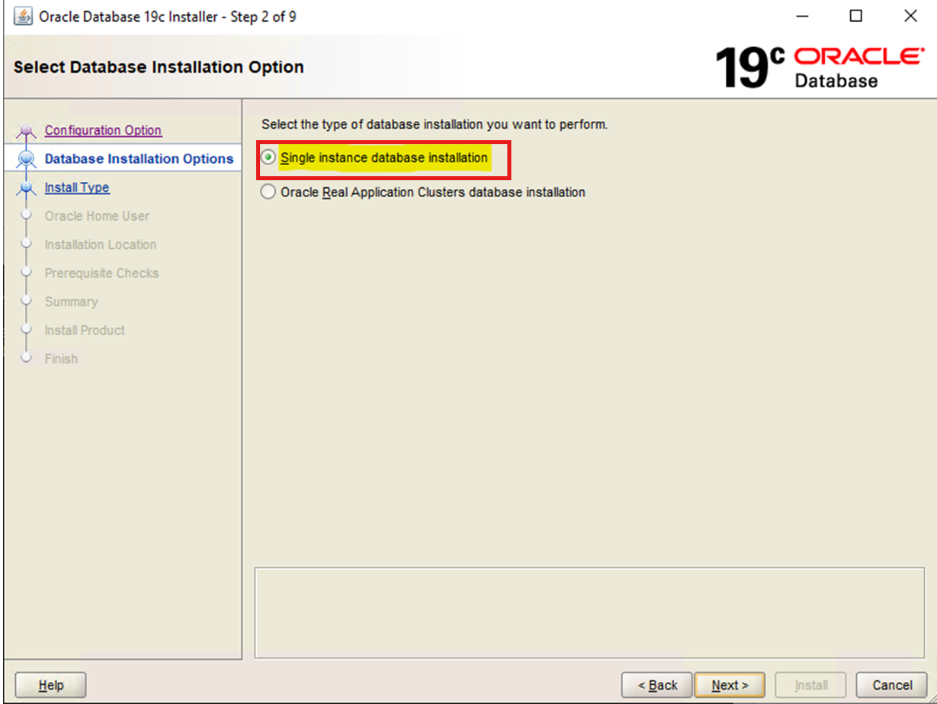

6 - Run the "setup.exe"
setup.exe -noconfig -responseFile C:\Oracle_Installers\tools\responsefiles\singleinstance\Oracle_<ORACLEversion>_Standard_Edition_Installation_WIN.rsp

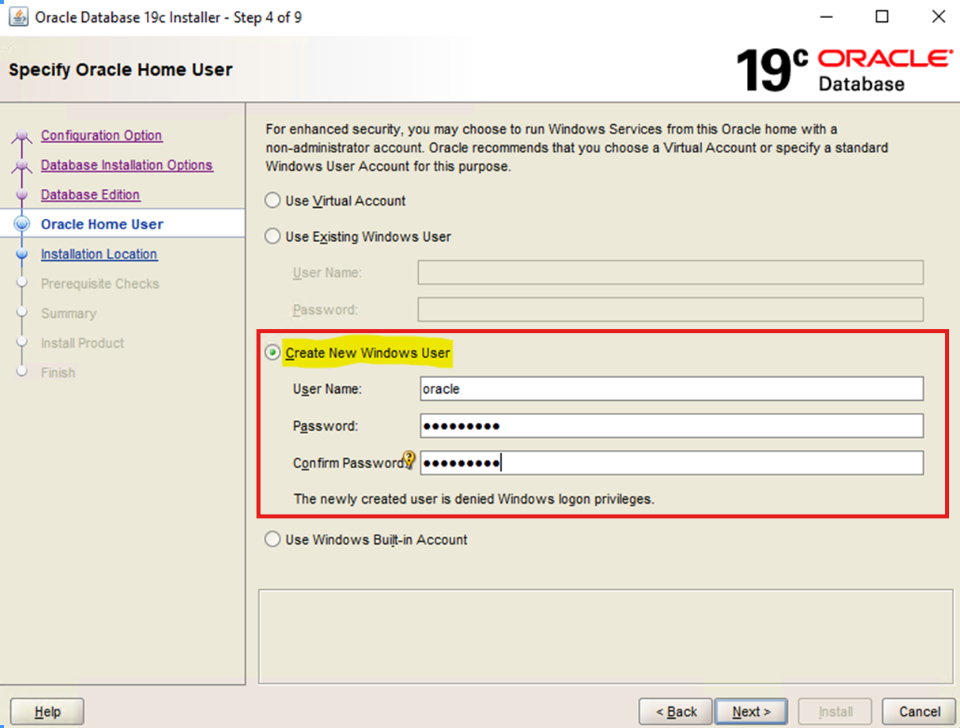

Create a New Windows User:
Username: oracle
Password: <Your Oracle Home Windows Password>

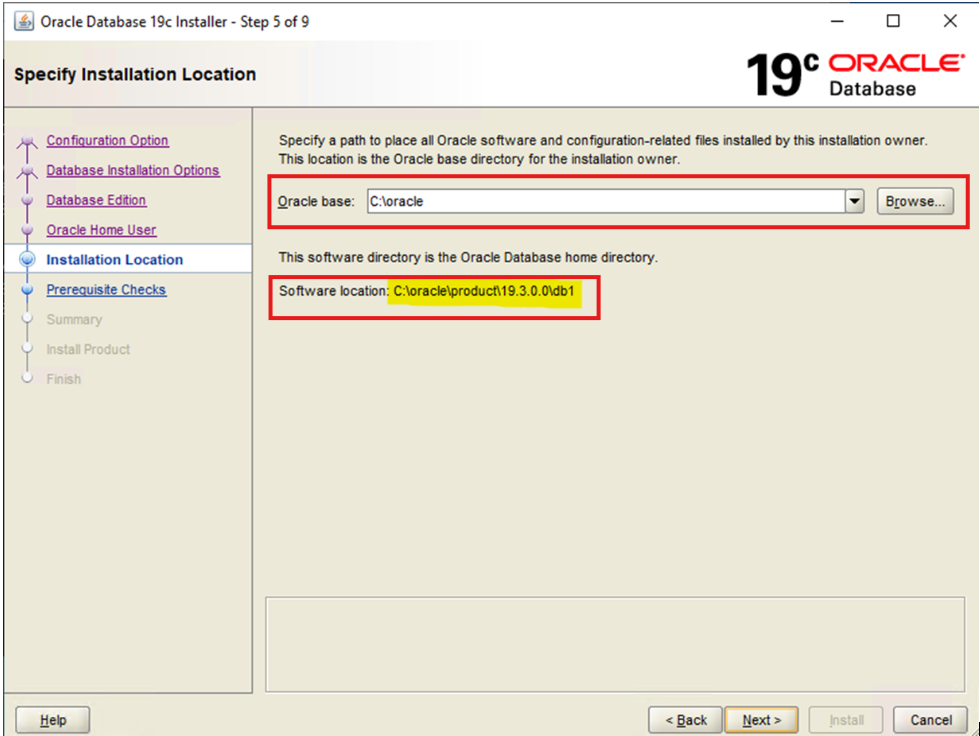

Set the Oracle Base directory
Oracle Base: C:\oracle
Software Location: ** Make sure this is set correctly and matches the directory you extracted the Oracle Database into **

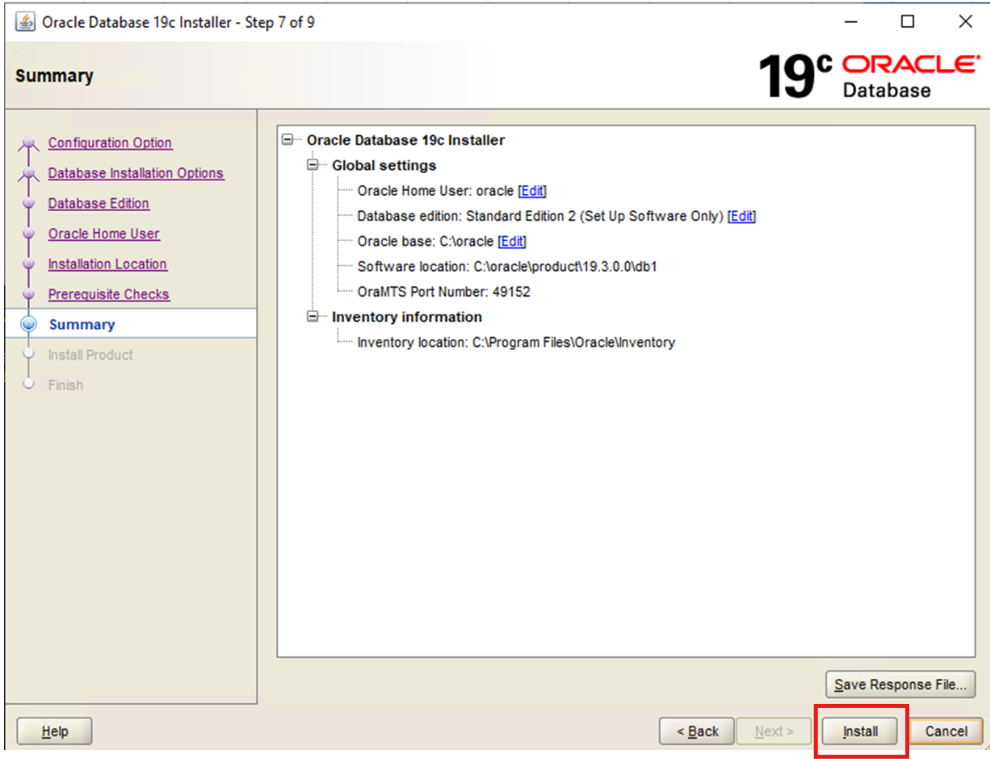

Click Install

Now that Oracle is installed, we need to prepare it for DLP...

Create the DLP Database:
1 - Copy the database template file "Oracle_<ORACLEversion>_Template_for_64_bit_WIN" into the Oracle "C:\oracle\product\<ORACLEversion>\db_1\assistants\dbca\templates" directory.
Source: C:\Oracle_Installers\Tools\templates\singleinstance\Oracle_<ORACLEversion>_Template_for_64_bit_WIN.dbt
Destination: C:\oracle\product\<ORACLEversion>\db_1\assistants\dbca\templates
2 - Open CMD (Administrator)
3 - Run the following command...
%ORACLE_HOME%\bin\dbca -createDatabase -ProgressOnly -responseFile "C:\Oracle_Installers\Tools\responsefiles\singleinstance\Oracle_<ORACLEversion>_DBCA_WIN.rsp"
Enter SYS Password: <Your SYS Password> ** This is to CREATE the "SYS" password for the Database
Enter SYSTEM Password: <Your SYSTEM Password> ** This is to CREATE the "SYSTEM" password for the Database
Enter Oracle Home User Password: <Your Oracle Home Windows Password> ** This is the password for the user account that you created or used during the Oracle Installation
** Note: If you are having problems at this stage, it likely means you are lacking the necessary permissions. You can use Process Monitor to help identify local permissions issues if necessary.

** Memory warning message is due to the limited resources in the Broadcom lab environment and did not prevent the deployment.

Configure the TNS Listener:
1 - If logged in as a Domain User, modify the sqlnet.ora file. Modify the value from NTS to None.
Path: %ORACLE_HOME%\network\admin\sqlnet.ora
Value: SQLNET.AUTHENTICATION_SERVICES=(none)

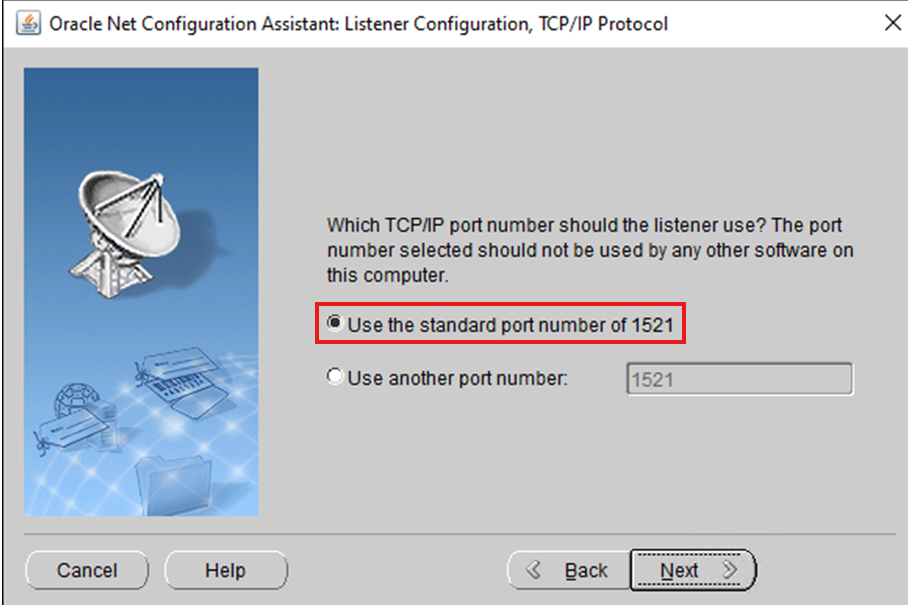

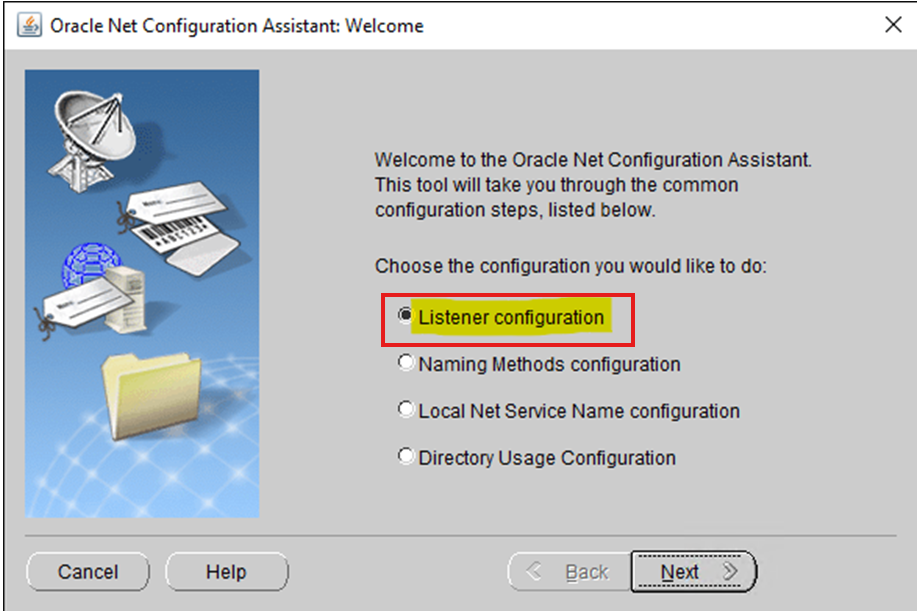

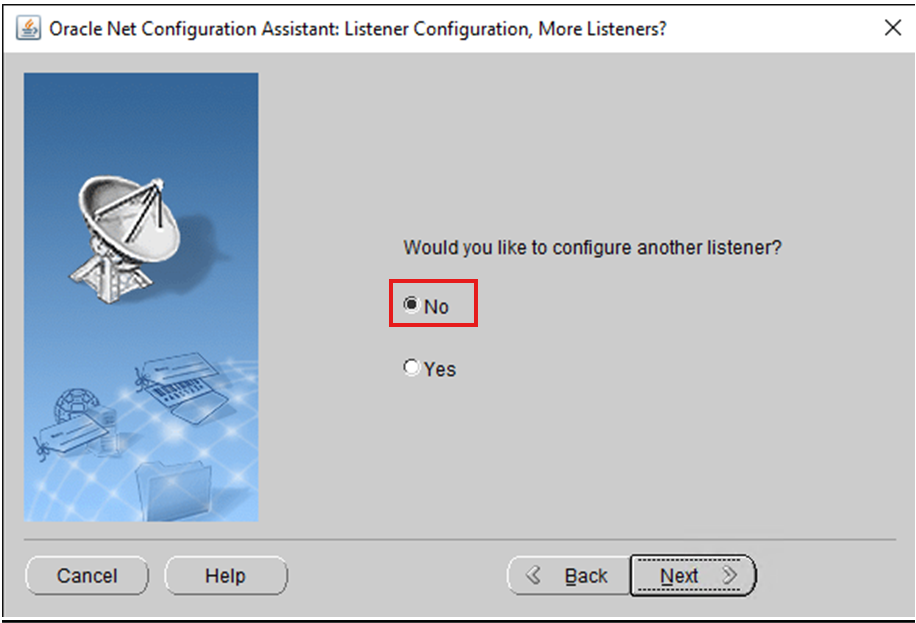

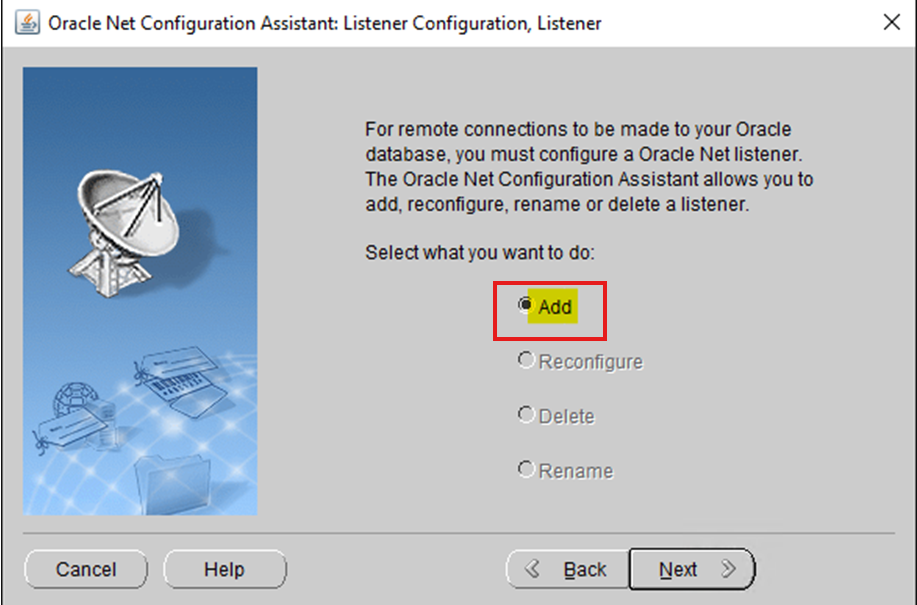

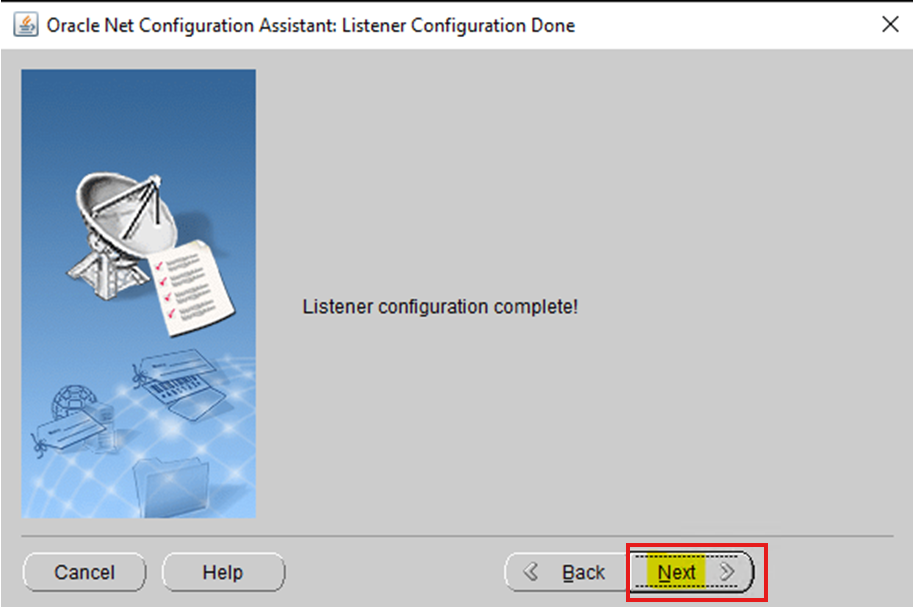

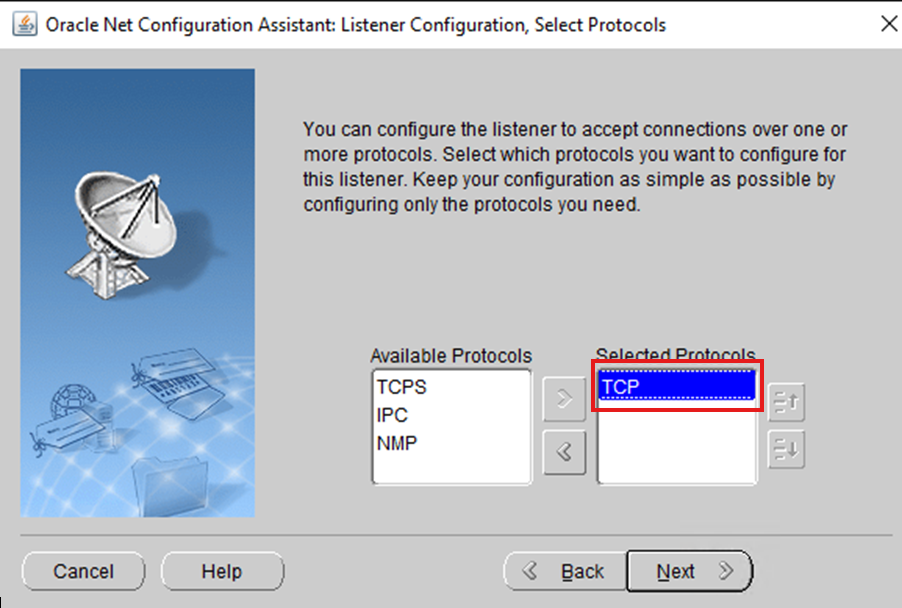

Launch the Oracle Network Configuration Assistant (netca):
2 - Open CMD (Administrator)
%ORACLE_HOME%\bin\netca

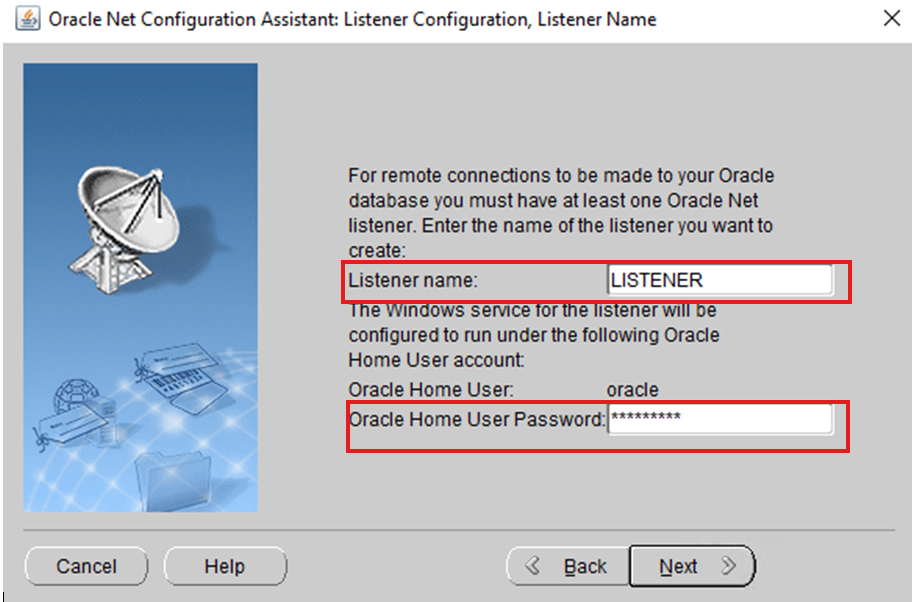

Oracle Home Password: <Your Oracle Home Windows Password>

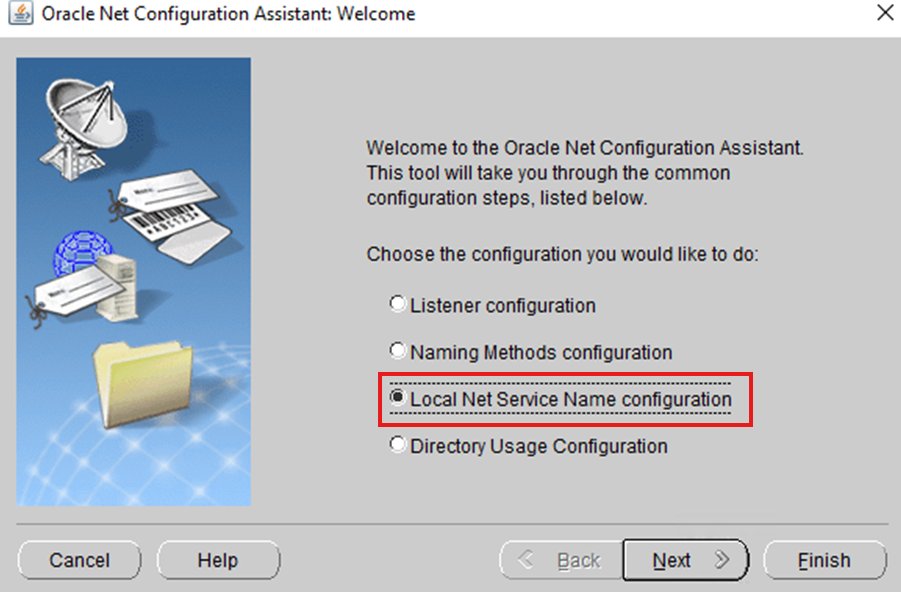

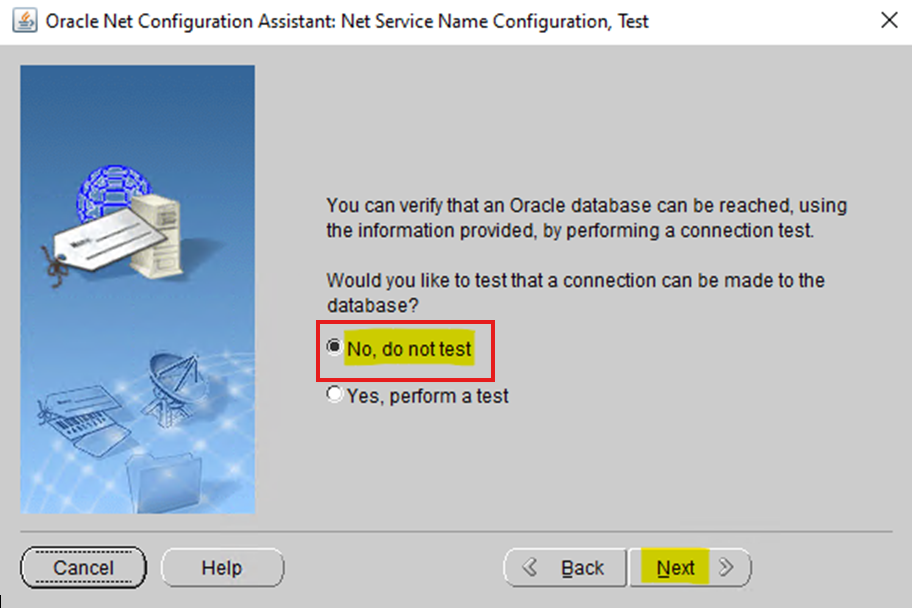

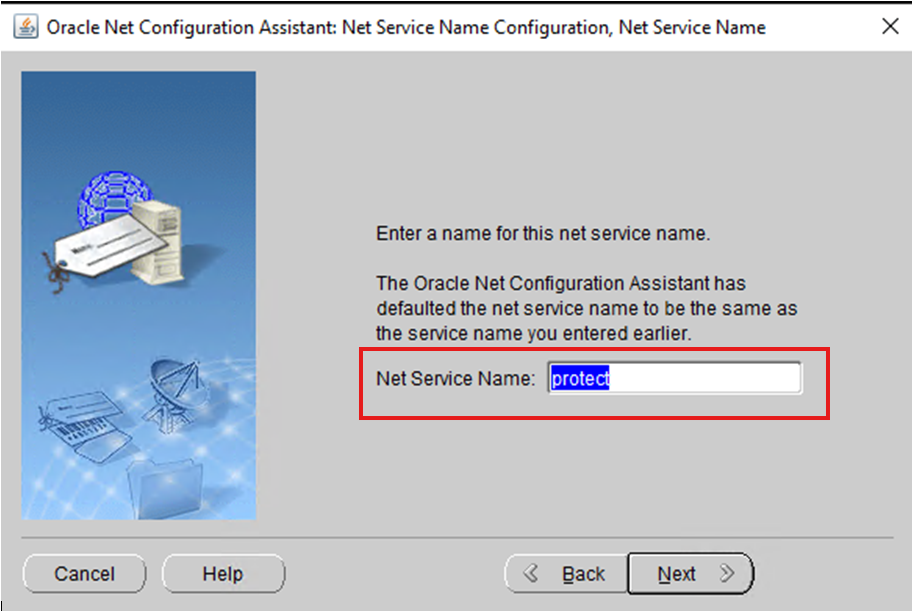

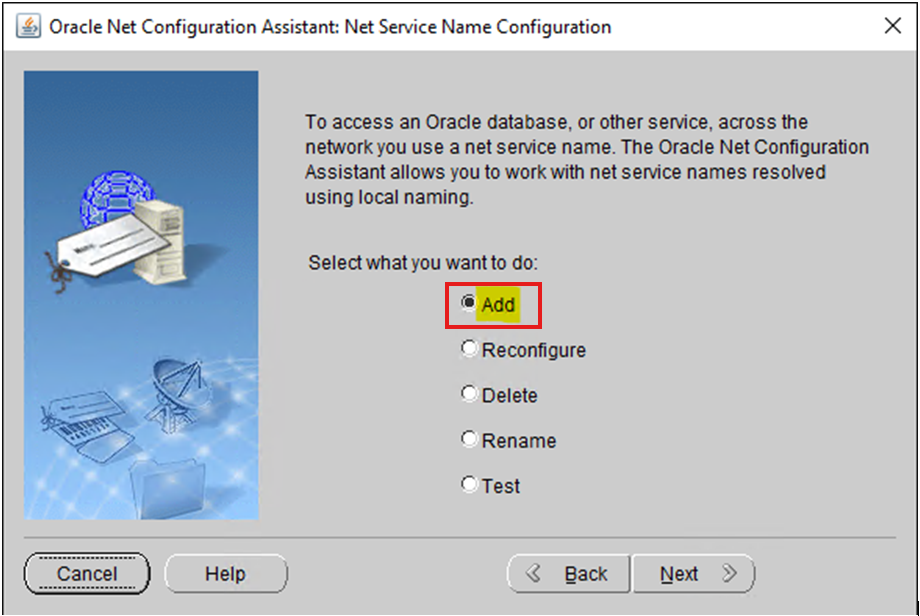

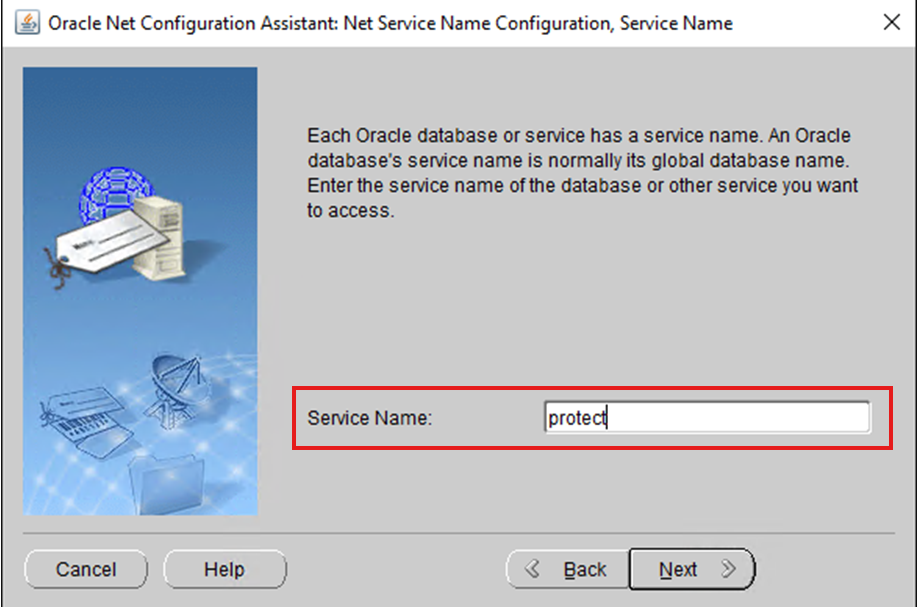

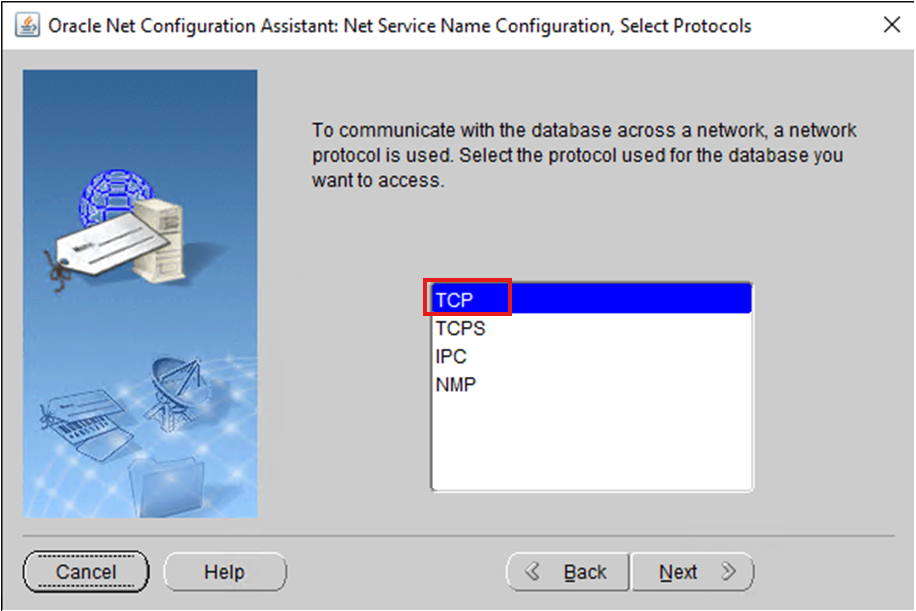

Create the Local NET Service Name configuration

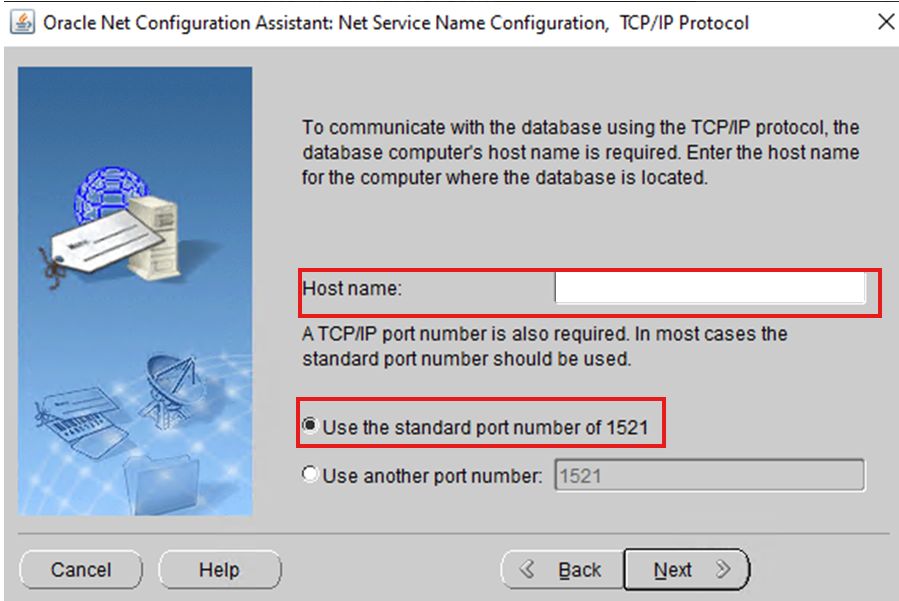

Hostname: This is the hostname of your Oracle Server

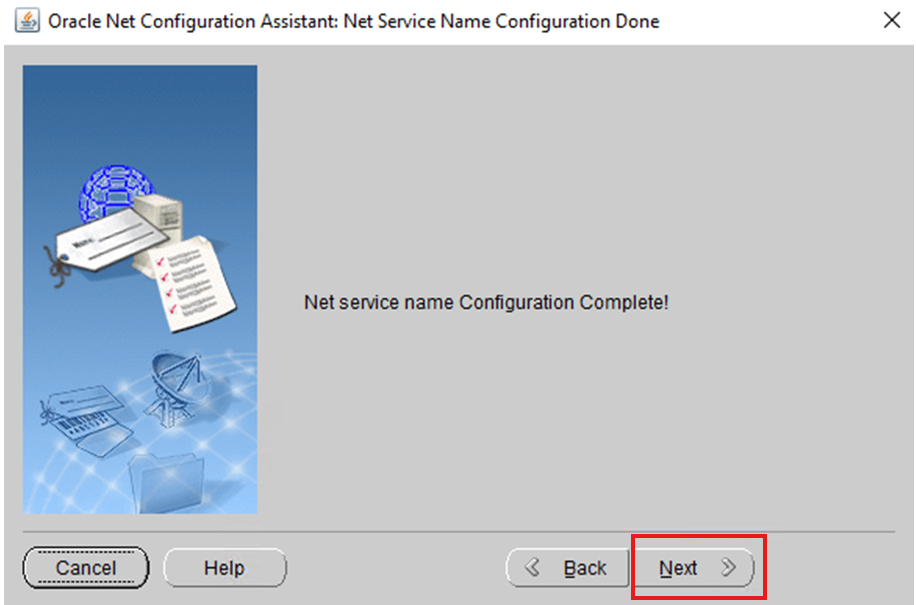

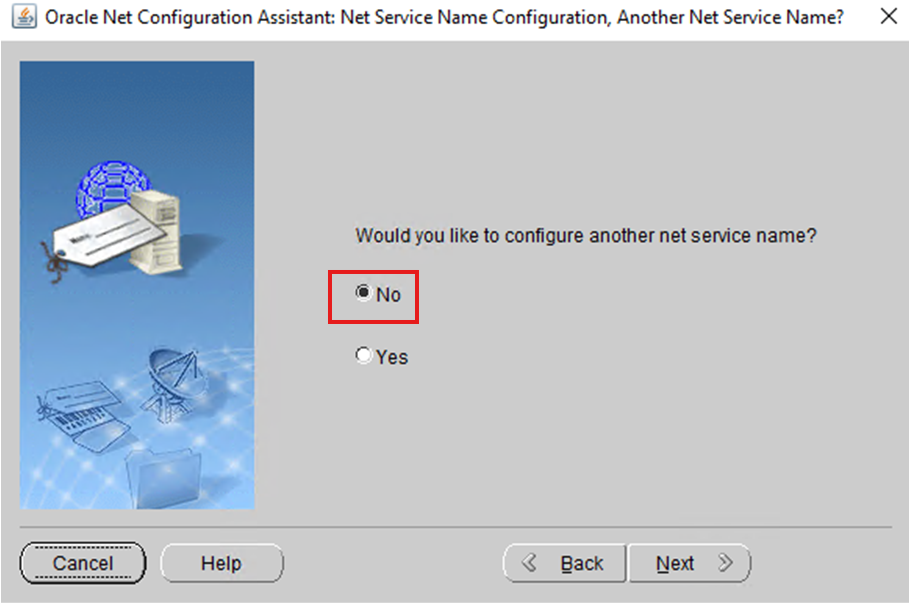

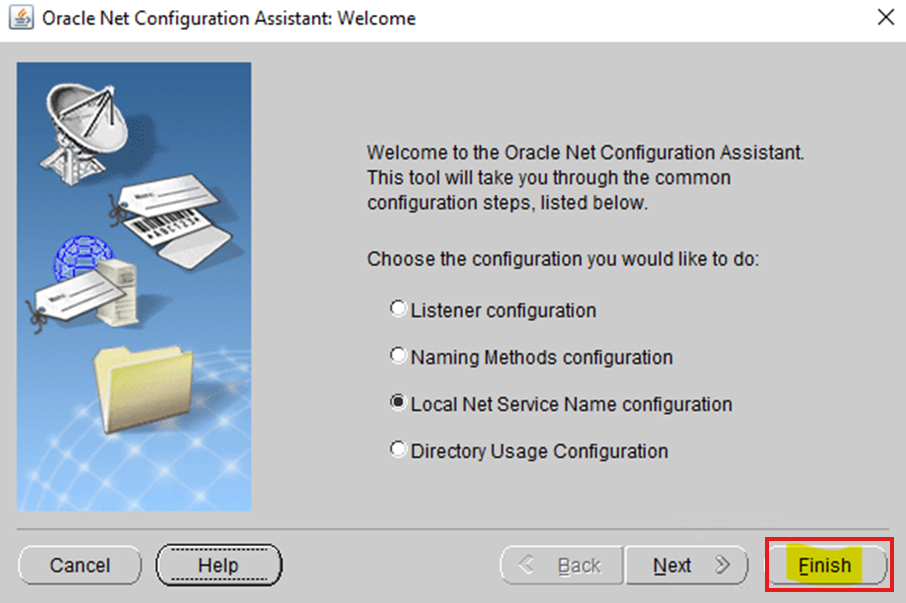

3 - Click the "Finish" button to complete the configuration.

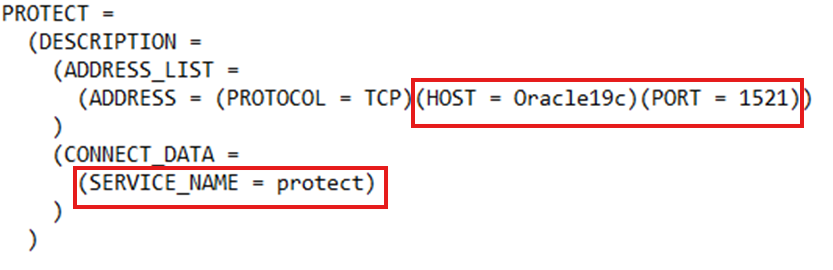

Verify the tnsnames.ora
Path: %ORACLE_HOME%\network\admin\tnsnames.ora

Modify the "listener.ora" file:
1 - Open CMD (Administrator)
lsnrctl stop

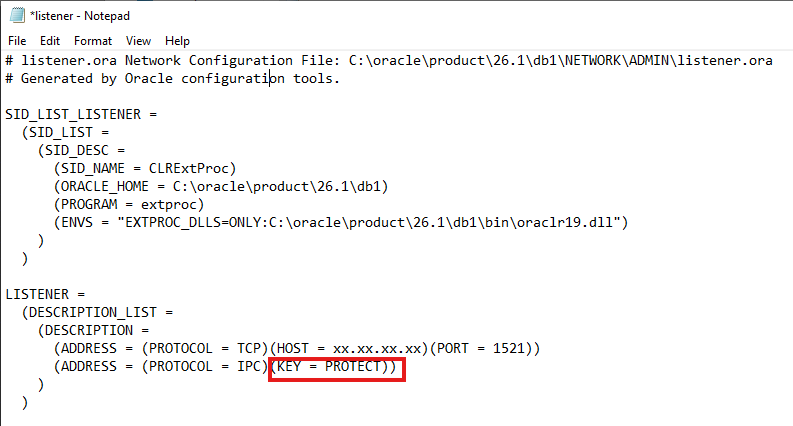

2 - Open the "listener.ora" file
Path: %ORACLE_HOME%\network\admin\listener.ora
3 - Modify the "KEY=EXTPROC1521" value to "KEY=PROTECT"

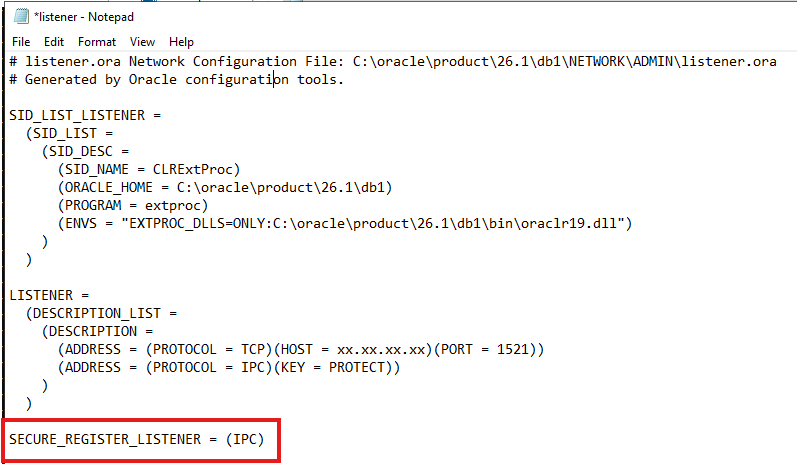

4 - Add the following line to the end of the "listener.ora" file
SECURE_REGISTER_LISTENER = (IPC)

5 - Save the changes and Exit
6 - restart the listener
lsnrctl start
7 - Connect to the database as sysdba
sqlplus sys as sysdba
8 - Run the following commands
ALTER SYSTEM SET local_listener = '(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=PROTECT)))' SCOPE=both;
ALTER SYSTEM REGISTER;
Exit
9 - Verify the changes to the listener.ora
- Open CMD (Administrator)
lsnrctl services

Create the Oracle User account for Symantec Data Loss Prevention
1 - Open CMD (Administrator)
2 - CD C:\Oracle_Installers\Tools
3 - Run the following command to log into SQLPlus and run the "oracle_create_user.sql" script
sqlplus /nolog @oracle_create_user.sql

SYS: <Your SYS Password>
Service Name: protect
Required username to be created: protect
Password for new username: <Your PROTECT Password>

ERROR at line 1:
ORA-01918: user 'PROTECT' does not exist

This is expected behavior.

4 - Verify the user
sqlplus protect/protect@protect

SELECT tablespace_name FROM user_tablespaces;

- Close out the existing CMD window

5 - Open a new CMD (Administrator)
6 - Login with the following credentials
sqlplus sys as sysdba

7 - Run the following command
SELECT BANNER_FULL FROM v$version;
