Incorrect network device high memory utilization alerts in snmpcollector probe

book

Article ID: 253939

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) CA Unified Infrastructure Management On-Premise (Nimsoft / UIM)

Issue/Introduction

 This affects several network devices, all same model & firmware version. Network team claims the consumed memory is around 5-6 GB out of 16 GB.

Have downloaded DCD 3.90, pushed it to the hub and remove-add the network devices again, but the issue still remains.





Environment

Release : Any supported UIM version

probe: snmpcollector

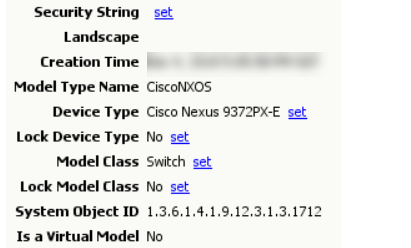

Model Type: CiscoNXOS

Cisco Nexus 9372PX-E

Resolution

According to the mibwalk provided, Device certification team have certified 2 OIDs, following the rule: ceExtNVRAMSize >= ceExtNVRAMUsed.

But now we can see
ceExtNVRAMSize    1.3.6.1.4.1.9.9.195.1.1.1.2.598, Gauge       , 364916736
ceExtNVRAMUsed    1.3.6.1.4.1.9.9.195.1.1.1.3.598, Gauge       , 3536400384

=> ceExtNVRAMSize < ceExtNVRAMUsed    => Memory Utilization is over 100%

So customers are recommended to contact the device vendor to resolve this issue of SNMP agent in their network device in this use case



Additional Information

Physical memory processor physical entity 598 alerts in snmpcollector probe
