AIOps - Unable to login, "502 Bad Gateway" error after adding a 2nd nic
Article ID: 219304
Updated On:
Products
Issue/Introduction
We added a 2nd nic to the k8s master server:
- one nic for k8s communication
- one nic for management

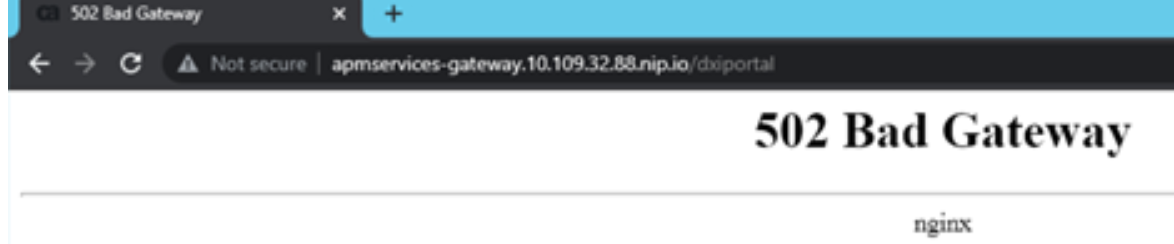

after adding the 2nd nic we are no longer able to open the DX Admin login page, we get "502 Bad Gateway" error message
we tried restarting dxi using <dx-platform>/tools/dx-admin.sh stop/start but it didn't help
we can see many axa-services pods are unable to startup and remain in "Init" status
Environment
DX Platform 2x
Cause
This is not a Broadcom issue, instead an Nginx, calico or flannel configuration issue.
Calico cni node pods are using the new interface eth1 instead of the eth0 due its ip autodetect mode.
Below are two lines that tell calico to use a different interface:
- name: IP_AUTODETECTION_METHOD
value: "interface=eth0"
For more information refer to https://docs.projectcalico.org/reference/node/configuration
Resolution
1. Login to k8s master
2. Edit calico-node Daemonset:
kubectl -n kube-system edit ds calico-node
3. Add below property:
- name: IP_AUTODETECTION_METHOD
value: "interface=eth0"
As below:
4. Verification:
a) Check all the pods in kube-system are running:
kubectl get pods -nkube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-7f4f5bf95d-hh4bn 1/1 Running 0 102m
calico-node-5xzw7 1/1 Running 0 95m
calico-node-nrnff 1/1 Running 0 96m
calico-node-qv9st 1/1 Running 0 96m
calico-node-wj4ch 1/1 Running 0 96m
calico-node-wm4bb 1/1 Running 0 96m
coredns-f9fd979d6-p92cw 1/1 Running 0 133m
coredns-f9fd979d6-vs66l 1/1 Running 0 133m
etcd-001499.example.com 1/1 Running 0 133m
kube-apiserver-001499.example.com 1/1 Running 0 84m
kube-controller-manager-001499.example.com 1/1 Running 1 133m
kube-proxy-5t2qg 1/1 Running 0 101m
kube-proxy-7g762 1/1 Running 0 101m
kube-proxy-97qx4 1/1 Running 0 101m
kube-proxy-p8kdb 1/1 Running 0 101m
kube-proxy-r7d5k 1/1 Running 0 133m
kube-scheduler-001499.example.com 1/1 Running 1 133m
b) check each of the calico-node-xyzzyx pod report the below message.
kubectl logs calico-node-wm4bb -nkube-system | grep "Using autodet"
2021-07-07 20:09:05.084 [INFO][9] startup/startup.go 788: Using autodetected IPv4 address #.#.#.#/21 on matching interface eth0
c) check ingress endpoint is working
In this example:
curl #.#.#.#.nip.io
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.19.1</center>
</body>
</html>
NOTE: when you use curl on port 80 i.e http , it usually returns 404 Not Found , that means your ingress is working fine.
curl #.#.#.#.nip.io:443
<html>
<head><title>400 The plain HTTP request was sent to HTTPS port</title></head>
<body>
<center><h1>400 Bad Request</h1></center>
<center>The plain HTTP request was sent to HTTPS port</center>
<hr><center>nginx/1.19.1</center>
</body>
</html>
Additional Information
DX AIOPs Troubleshooting, Common Issues and Best Practices
https://knowledge.broadcom.com/external/article/190815
