Building Custom Reports with Symantec Endpoint Encryption Management Server

Products

• Endpoint Encryption
• Desktop Email Encryption
• Drive Encryption
• Encryption Management Server
• File Share Encryption
• Gateway Email Encryption
• PGP Command Line
• PGP Key Management Server
• PGP Key Mgmt Client Access and CLI API
• PGP SDK
• PGP Encryption Suite

Issue/Introduction

Symantec Encryption Management Server has the ability to create reports, however, some of the reports may be missing columns you may want to use.

This article will go over the steps to add more columns to your reporting.



Note:  This is for the old MMC console for the SEE Server for versions 11.4 and older. If you're using SEE 12, See this article: - 240649 - Symantec Endpoint Encryption Dashboard and Reports



TIP: For additional reporting help, see the following articles:

195857 - Symantec Endpoint Encryption Database Maintenance - Cleanup old machines and client data

200820 - Aging systems report for Symantec Endpoint Encryption (non-reporting computers)



PGP Encryption Server Dashboard and reports:
385968 - Web Dashboard and Reports for PGP Encryption Server

Resolution

As an example, in order to add columns to one report, open Symantec Endpoint Encryption Manager (SEEMS console) and expand "Symantec Endpoint Encryption Reports".

Click on "Computer Status Report".  To the right, put a % in the search field and click "Run".  You will see the existing reporting data.

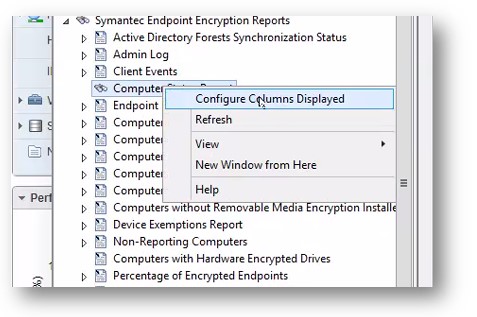

Now, right click "Computer Status Report" and select "Configure Columns Displayed"

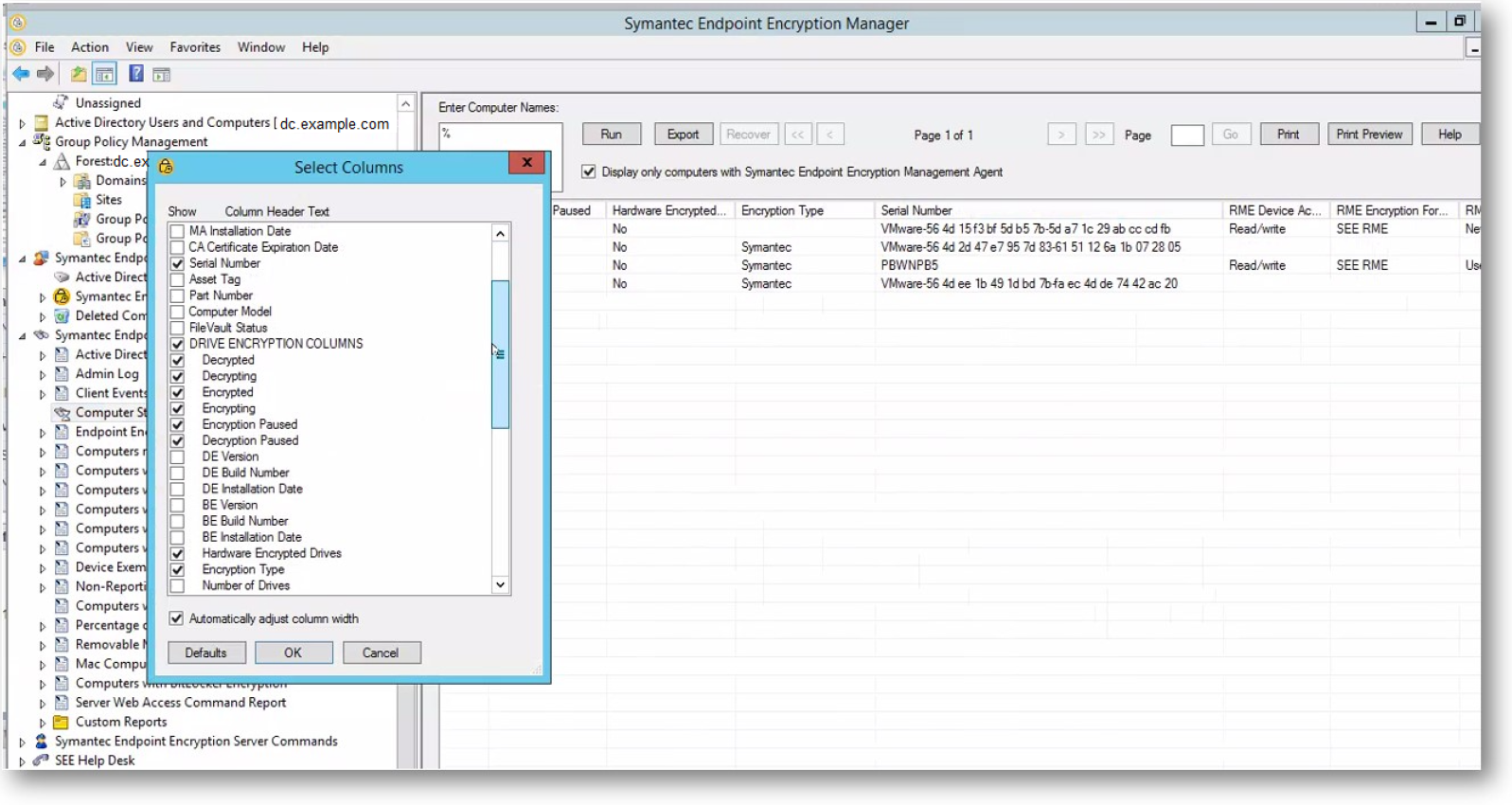

You can now select all the columns for your report that would apply:

Once you run the report, you can then export the report in .csv format.

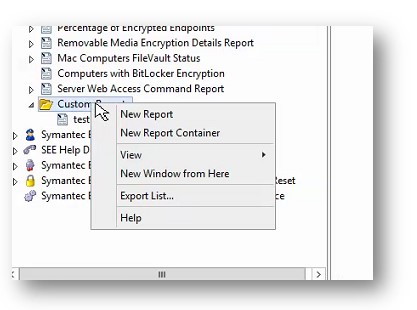

There is another method to create custom reports and allow you to include date ranges and other useful details.  To do this, go to the bottom and right click "Custom Reports":

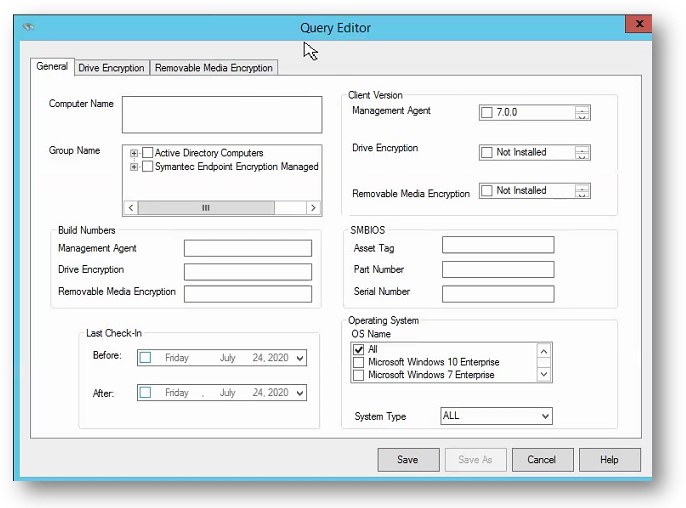

Select New Report and now you can create reporting data with values you may need:

Additional Information

ISFR-2670/EPG-30950

240649 - Symantec Endpoint Encryption 11.4 Dashboard and Reports

227761 - Create a Symantec Endpoint Encryption Client Report based on build number

200820 - Aging systems report for Symantec Endpoint Encryption (non-reporting computers)

195857 - Symantec Endpoint Encryption Database Maintenance - Cleanup old machines and client data



PGP Encryption Server Dashboard and reports:
385968 - Web Dashboard and Reports for PGP Encryption Server
