NSX-v 6.4.8 or 6.4.10 experiencing VXLAN connectivity issue after upgrade vCSA/ESXi to 7.x.

book

Article ID: 319148

calendar_today

Updated On:

Products

VMware vCenter Server VMware vSphere ESXi VMware NSX Data Center for vSphere

Issue/Introduction

  • NSX-v 6.4.8 or 6.4.10 are installed.
  • An upgrade of the vCenter or ESXi host to 7.x has been carried out.
  • VMs on host experience East/West and North/South connectivity issues.
  • Host preparation is green.
  • Command 'esxcfg-vmknic -l' show VXLAN VMK adapters are present.
  • VMKping between VTEPs is successful.
  • Command 'net-dvs -l' shows module "com.vmware.net.vxlan.vmknic = 0xff"

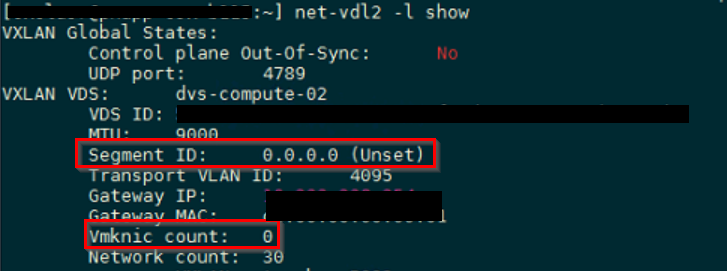

  • Command 'net-vdl2 -l -s <vDS_NSX_Name>' on ESXi host displays segment_ID as 0.0.0.0 and no VMKnic count (example in printscreen below):
  • In /var/log/run/vmkernel.log of an impacted ESXi host, you may see log messages similar to the log lines below (if the ESXi only is impacted and the vCenter DB is healthy, explained further in the workaround section).

    2021-08-18T16:44:41.926Z cpu2:2098628 opID=756ad23e)WARNING: vxlan: VDL2PortPropSet:820: Failed to create VXLAN IP vmknic on port[0x3000004] of VDS[DvsPortset-0] : Operation already in progress



Note: The preceding log excerpts are only examples. Date, time, and environmental variables may vary depending on your environment.

Environment

VMware NSX for Data Center for vSphere 6.4.8 or 6.4.10.
VMware vCenter Server 7.0.x.
VMware vSphere ESXi 7.0.x.

Cause

The issue is introduced when a failure in resetting VXLAN data occurs, this is typically induced when there is an EAM VXLAN host scan is triggered, this can happen when a host is rebooted or placed in and out of maintenance mode, in NSX-v 6.4.8 and 6.4.10, the NSX Manager attempts to publish the VXLAN information but there is no DVS VXLAN information associated with the host in the publish event and the issue is introduced.

Resolution

This issue is resolved in VMware NSX-v 6.4.11 and later, available at Broadcom downloads.



Workaround

This problem can manifest in two ways:

Scenario 1: Only the ESXi host contains 'FF' values for VXLAN VMK adapters and the vCenter database is healthy.

Scenario 2: Both the ESXi host and vCenter database contain 'FF' values for VXLAN VMK adapters.

To validate which scenario you are impacted by, run each of the following two checks:

  1. Via SSH access to an ESXi host experiencing VXLAN connectivity issues, run the command:

    net-dvs -l | grep 'vxlan.vmknic'


    Healthy output: 'com.vmware.net.vxlan.vmknic = 0x 1'

    Unhealthy output: 'com.vmware.net.vxlan.vmknic = 0xff'
  2. Access the vCenter database by following https://knowledge.broadcom.com/external/article/313597 , run the following query:
    select opaque_data from vpx_dvs_opaque_data where opaque_data=decode('ff', 'hex');


Scenario 1 is present if no database rows are returned BUT the ESXi host shows 'FF' values.

  • To resolve Scenario 1, it is recommended to place that ESXi host showing 'FF' values in Maintenance Mode and proceed to reboot the ESXi host.
  • Once rebooted, the ESXi host is expected to show a healthy return from:
    net-dvs -l | grep 'vxlan.vmknic'

Scenario 2 is present if database rows are returned AND the ESXi host shows 'FF' values.

  • To resolve Scenario 2, please contact VMware Support and note this article, 319148 in the problem description.





Additional Information

There are three specific situations that are relevant to this particular issue, their explanations are below:

  1. An environment is currently running NSX-v 6.4.8 or 6.4.10, the ESXi version is currently 6.x and an upgrade is planned for 7.x.
    • VMware recommends to upgrade the NSX-v 6.4.14 before upgrading either the vCenter or ESXi version to 7.x to avoid encountering this issue.

  2. An environment is running ESXi /vCenter 7.x and NSX-v 6.4.8 or 6.4.10, a plan is in place to upgrade to ESXi to a newer minor release of 7.x.
    • VMware recommends to check the vCenter Database for incorrect vmknic values, using the validation steps outlined above before moving forward with the ESXi upgrade.
    • If scenario 2 is encountered, please file a support request, if not, please continue with the upgrade.

  3. An environment is running ESXi/vCenter 7.x and NSX-v 6.4.8 or 6.4.10, a plan is in place to upgrade NSX-v.
    • VMware recommends to check the vCenter Database for incorrect vmknic values, using the validation steps outlined above before moving forward with the NSX-v upgrade.
    • If scenario 2 is encountered, please file a support request, if not, please continue with the upgrade.
