How to see full navigation flow for Gen screen Pstep

Products

• Gen
• Gen - Workstation Toolset
• Gen - Host Encyclopedia

Issue/Introduction

Have a Gen Blockmode CICS Screen applications where a screen can navigate to multiple other screens. Would like to know if there is a way to find out the Full Navigation Flow for each screen Pstep, the View Matching between the screen Psteps and also the Exit States/Commands that cause the Flow from the source to destination screen psteps?

Resolution

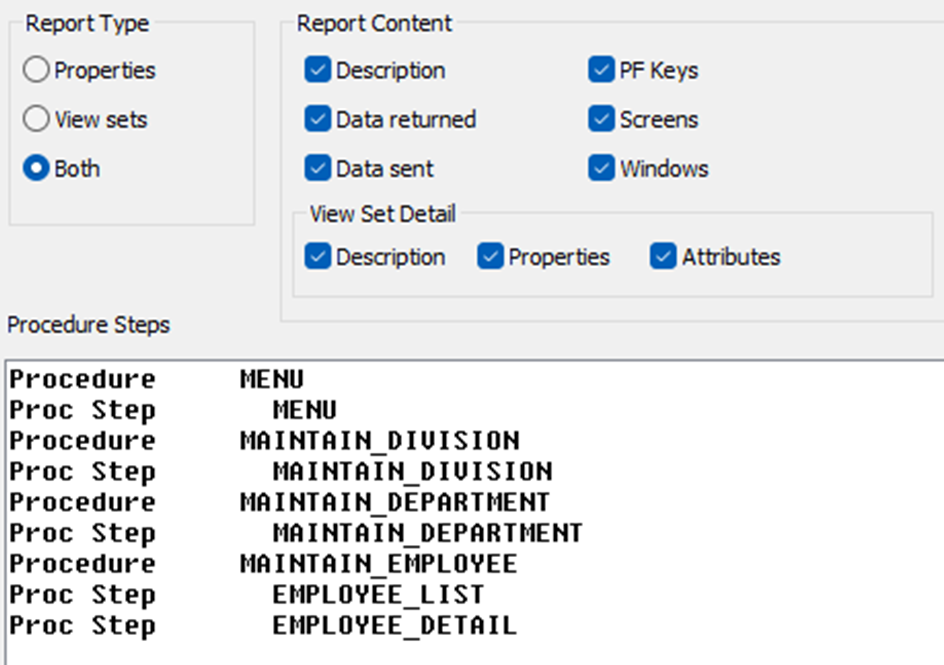

In the Toolset, the Procedure Step Definition Report has options for reporting on data sent/returned. Select from Report Type and Report Content, then choose all or some Procedure Steps listed. This will create a report containing

• Flow for each screen Pstep
• View Matching between the screen Psteps
• Exit States/Commands that cause the Flow from the source to destination screen pstep
