No valid placement found for VM compute and storage requirement while running apply changes

Products

• VMware Tanzu Application Service
• Operations Manager

Issue/Introduction

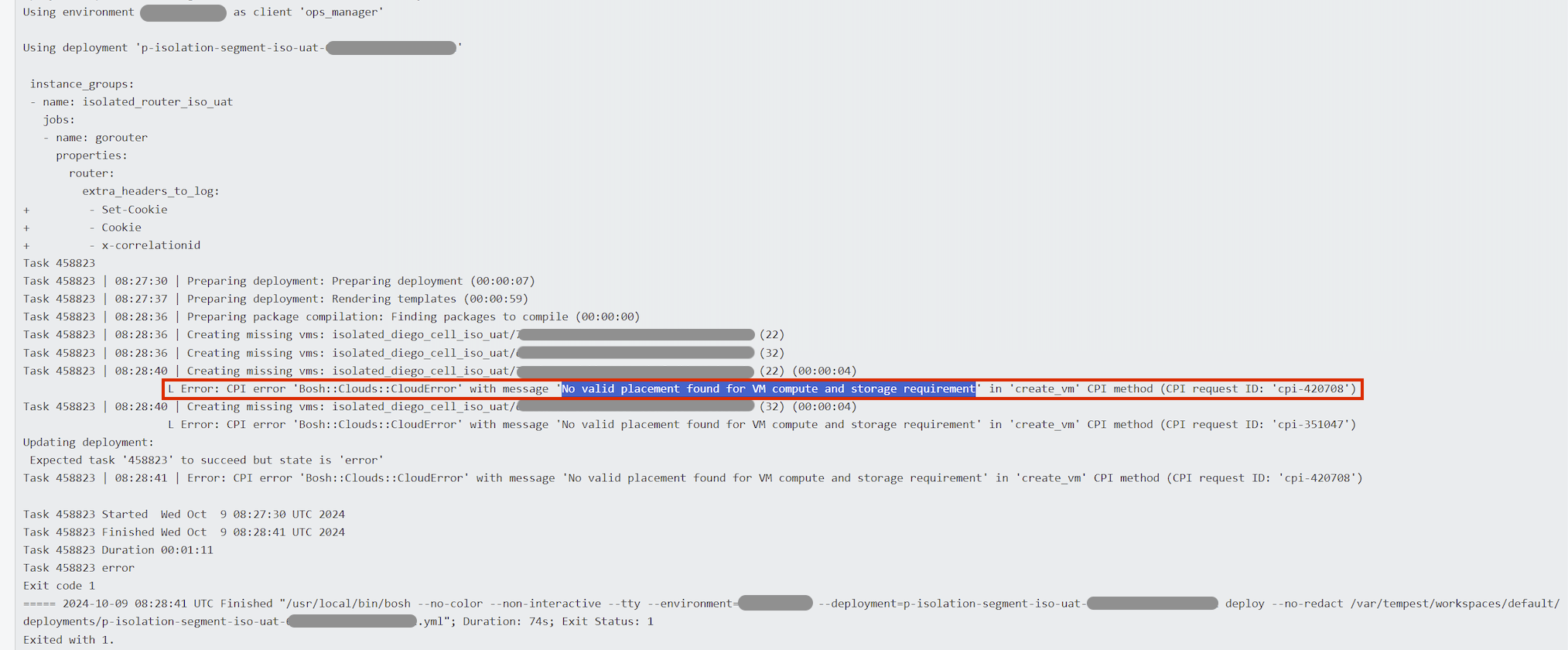

When running Apply changes against any tile on TPCF, it fails with "No valid placement found for VM compute and storage requirement" as below -

L Error: CPI error 'Bosh::Clouds::CloudError' with message 'No valid placement found for VM compute and storage requirement' in 'create_vm' CPI method (CPI request ID: 'cpi-156849')



Environment

TPCF

Cause

Kindly follow below steps to investigate.

Step 1. Run command "bosh task <task-id> --cpi" to get the bosh CPI log.

Step 2. Investigate the cpi output for the exact error message. As an example:

D, [2026-03-03T06:29:40.414026 #15878] DEBUG -- [req_id cpi-156849]: Failed to find placement for Disk ==> Disk CID: Size:262144 Ephemeral:true Target-DS:^(example)$ Existing-DS:
E, [2026-03-03T06:29:40.414459 #15878] ERROR -- [req_id cpi-156849]: Error in creating vm: No valid placement found for VM compute and storage requirement, Backtrace - /var/vcap/data/packages/vsphere_cpi/b6fbe6346ef7d80c6b4f3552a74399d3e9a41d83/lib/cloud/vsphere/vm_config.rb:254:in `cluster_placement_internal'



Resolution

The error message indicates the issue is with underlying DS.

First, check the Target-DS on vSphere for the capacity usage. If the DS is full, please contact your Infra Team to increase the storage and have a try again.

If this problem occurred when making change to datastore configuration (when making changes to migrate datastore), then please also ensure:

• Ensure that clusters configured in OpsManager > BOSH Tile > Availability Zones have access to datastores configured in vCenter Config >  Ephemeral Datastore Names and Persistent Datastore Names
• If configured clusters do not have access to Datastore, then you will need to Add Cluster to Availability Zones to rectify this mismatch.
• After adding clusters with proper datastore access, apply changes should now run without getting placement errors.

If you still face the issue after checking the above, please raise a case with Broadcom support, and include the CPI logs for review.
