Step 1: Setting up your CDS for EMAIL in Broadcom Enterprise Console in Forward Mode

Products

• Data Loss Prevention

Issue/Introduction

Setting up CDS for Email in the Broadcom Enterprise Console

Environment

DLP 16.x

Resolution

Setting up CDS for EMAIL:

Go to: enterprise.security.com

Login with your Domain Admin account: ( for example: [e-mail] )

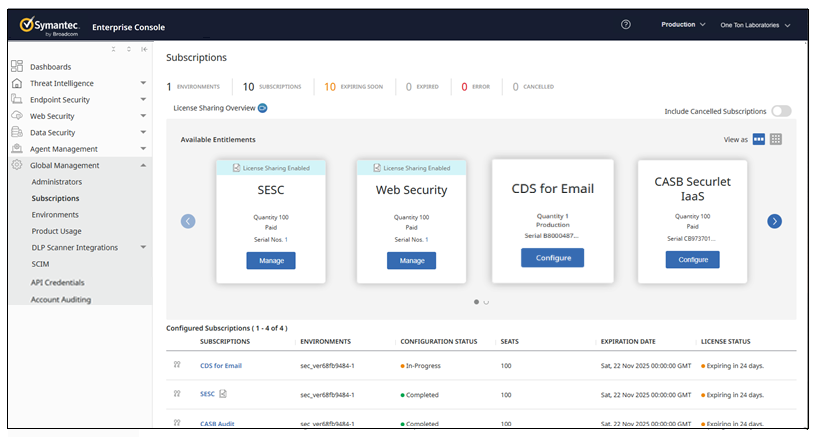

Click on the Subscriptions tab under the Global Management section. Click on the Configure button for the "CDS for Email" entitlement.

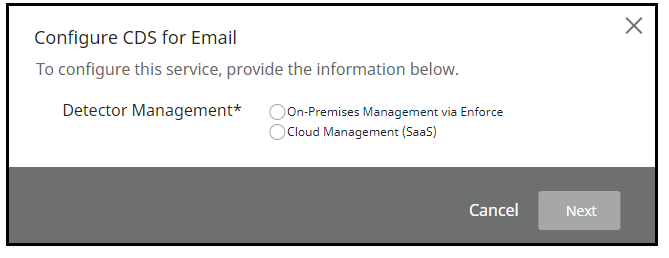

On the Configure CDS for Email page assign it to an environment

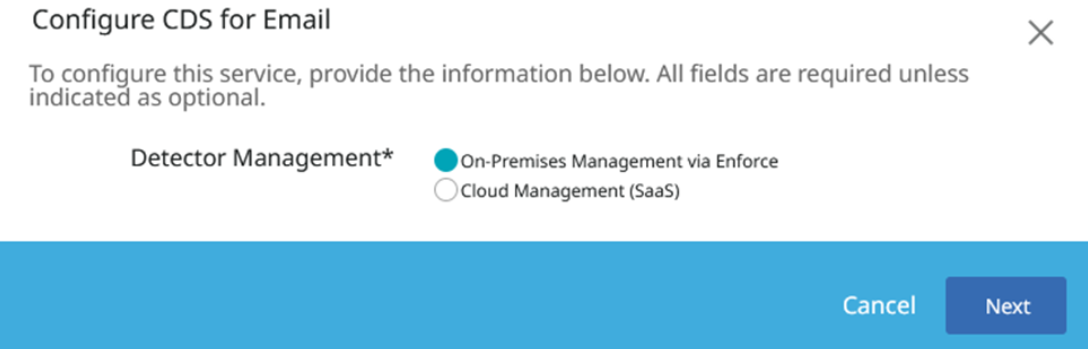

As the connector will be managed by on PREM select “On-Premises Management via Enforce”

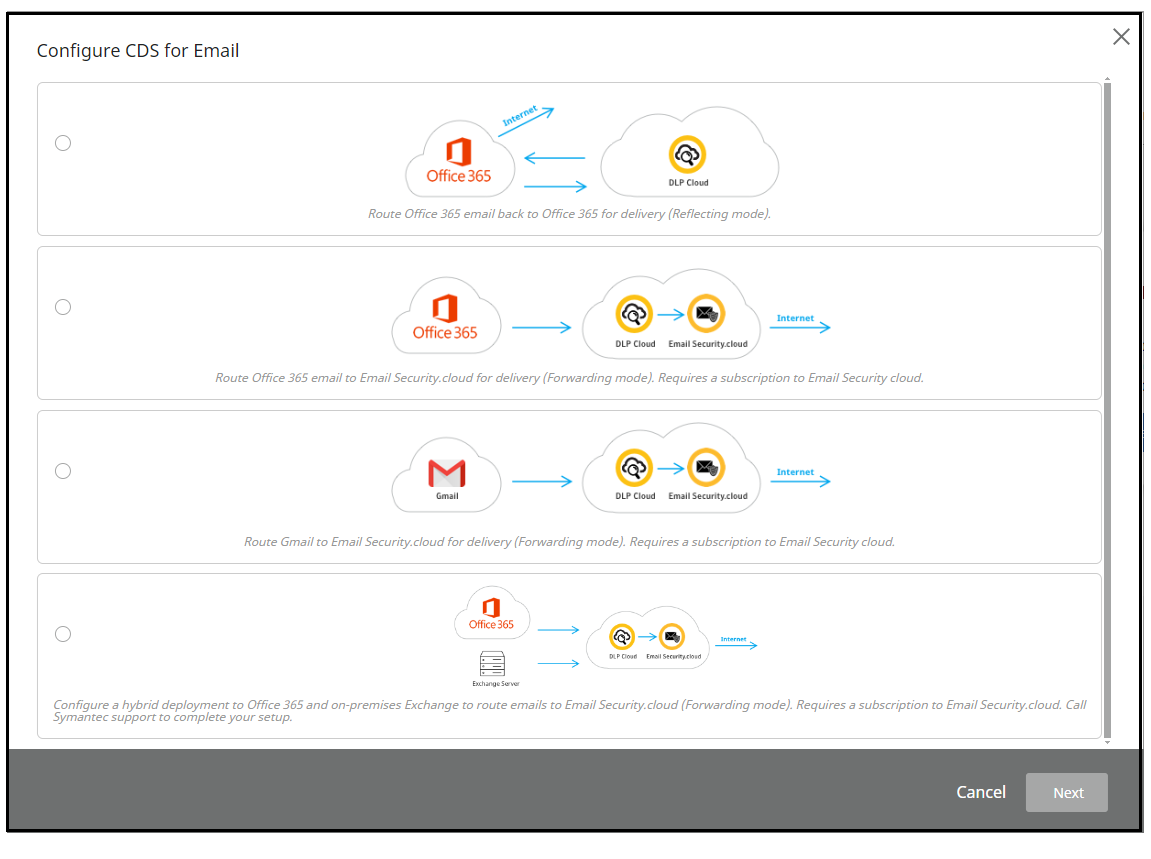

Select “Route Office 365 email to Email Security.cloud for delivery ( Forwarding Mode)”

The email security cloud code you will need is: XXXXXXX

Once configured you will see:

Now you will wait for an email confirmation that the process is completed ( On average 1-2 business days )

Additional Information

For additional guides please see the "Getting Started with Data Loss Prevention"

To provide feedback please click on the "Feedback" link or send an email to "[e-mail]"
