Issue/Introduction

This section reviews the process of creating MPIP credential profile for agents and on-premises detection servers in the DLP Console

DLP 16.0 MIP Implementation: Managing MIP Credential Profiles for Agents and On-Premises Detection Servers

DLP 25.1 MPIP Implementation: Managing MPIP Credential Profiles for Agents and On-Premises Detection Servers

Symantec Data Loss Prevention uses MPIP credential profiles to authenticate with the MPIP service. On the System > Settings > MPIP Credential Profiles page of the Enforce Server administration console, you can configure two types of MPIP credential profiles for agents and on-premises detection servers:

• An MPIP classification credential profile – Used by the Enforce Server, DLP Agents, and on-premises detection servers to synchronize classification labels with the
  MPIP service. You can configure only one MPIP classification credential profile at a time.
• MPIP decryption credential profiles – Used by detection servers to inspect documents and emails that have been encrypted by MPIP. You can configure multiple MPIP
   decryption credential profiles.

Resolution

In the Enforce Server administration console

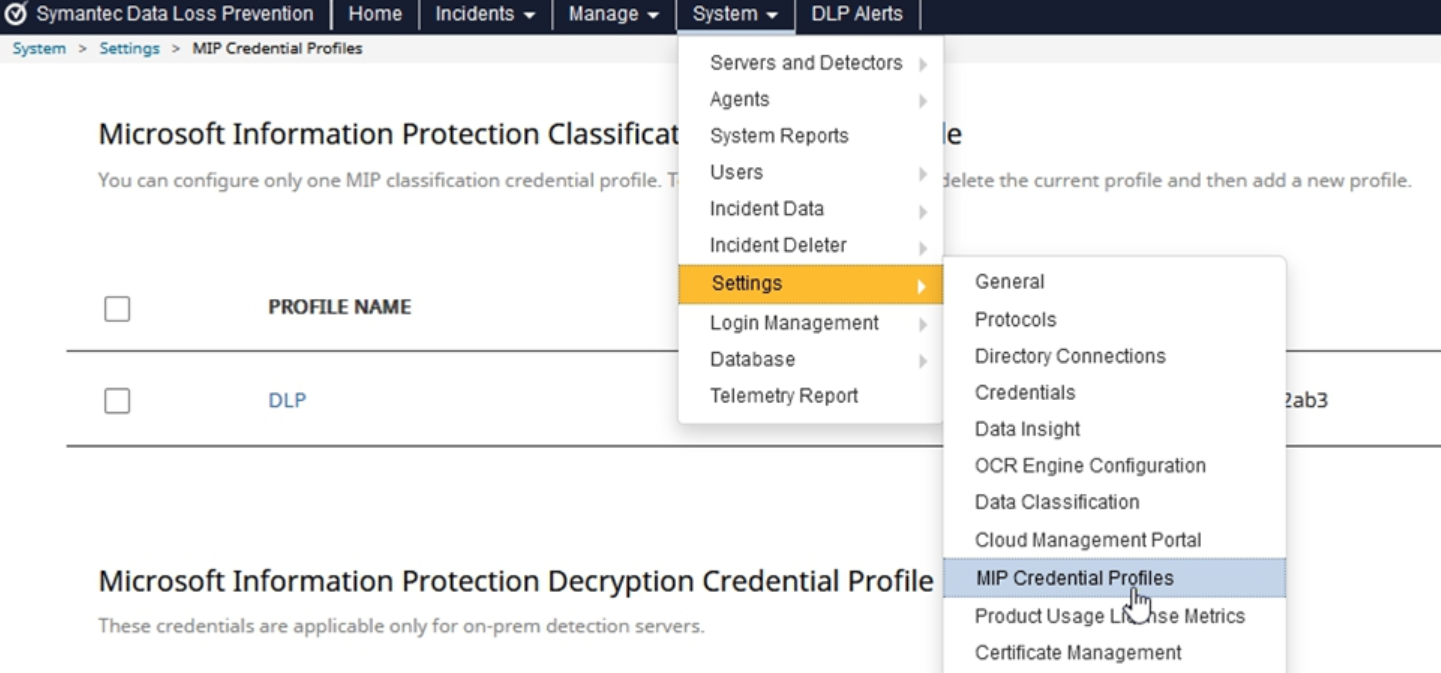

Navigate to System > Settings > MPIP Credential Profiles

Adding the Microsoft Information Protection Classification Credential Profile: To authorize Symantec Data Loss Prevention to classify documents that contain sensitive information and to synchronize labels with the MPIP service

1. Under “Microsoft Purview Information Protection Classification Credential Profile” select “Add Profile”
2. In the dialog box, type a name for the profile in the Profile Name field.
3. Fill the Tenant ID, Application ID, and Application Secret (client secret) fields using the information that you copied when you registered an application on the Azure portal.
4. Credentials are verified on save

Note: To utilize an Application Certificate instead of a Application Secret, follow the steps found in the following article: Implementing a client certificate authentication for MIP Classification/Decryption profiles on Enforce

Adding the Microsoft Information Protection Decryption Credential Profile: To authorize Symantec Data Loss Prevention to inspect documents and emails encrypted by MPIP

1. Under “Microsoft Purview Information Protection Decryption Credential Profile” select “Add Profile”
2. In the dialog box, type a name for the profile in the Profile Name field.
3. Fill the Tenant ID, Application ID, and Application Secret (client secret) fields using the information that you copied when you registered an application on the Azure portal.
4. Credentials are verified on save

Note: To utilize an Application Certificate instead of a Application Secret, follow the steps found in the following article: Implementing a client certificate authentication for MIP Classification/Decryption profiles on Enforce

Additional Information

Return to Getting started with a DLP / MPIP Integration
