Issue/Introduction

This section reviews the process of creating your profile to allow the DLP Enforce Console to download the MPIP labels from Microsoft:

DLP 16.0 MIP Implementation: Authorizing Symantec Data Loss Prevention on the Microsoft Azure portal

DLP 25.1 MPIP Implementation: Authorize Symantec Data Loss Prevention on the Microsoft Azure Portal

Resolution

You must register an application on the Microsoft Azure portal before you can connect Symantec Data Loss Prevention to the MPIP service.

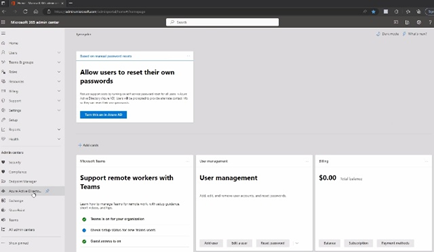

1. Log on to http://portal.azure.com/ with administrator privileges - Open the Menu and select "Entra"

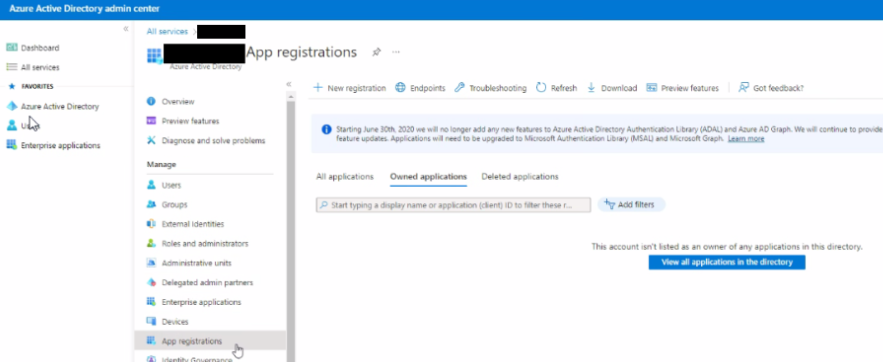

2. Navigate to Microsoft Entra > Add App Registration

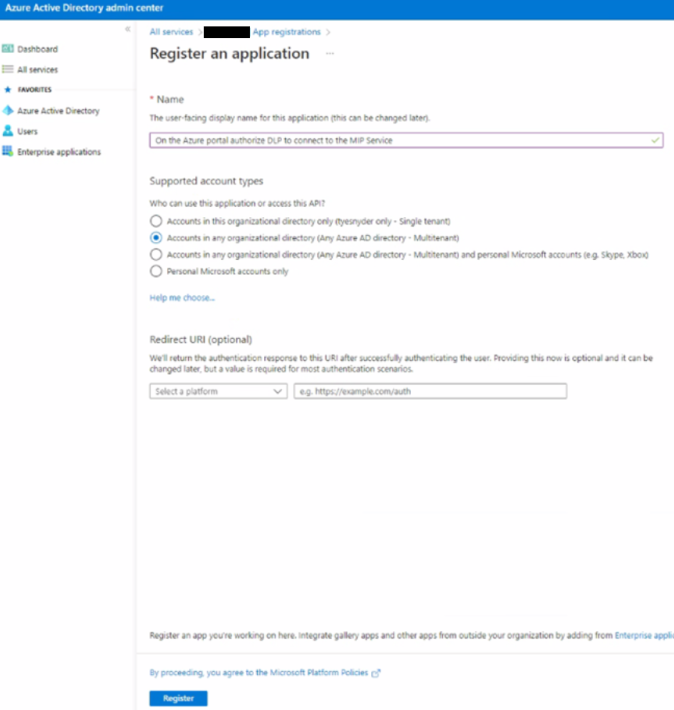

3. Select "New Registration" and provide a display name for the new application.
4. Under Supported account types, select one of the following options ( In this example we will be choosing Multitenant ):
  - Accounts in this organizational directory only (DirectoryName only - Single tenant), where DirectoryName indicates the name of your Microsoft Entra directory.
  - Accounts in any organizational directory (Any Microsoft Entra directory - Multitenant)
5. Leave the Redirect URI field empty
6. Click Register
7. After the application is registered, go to the applications page and select Authentication in the navigation pane.

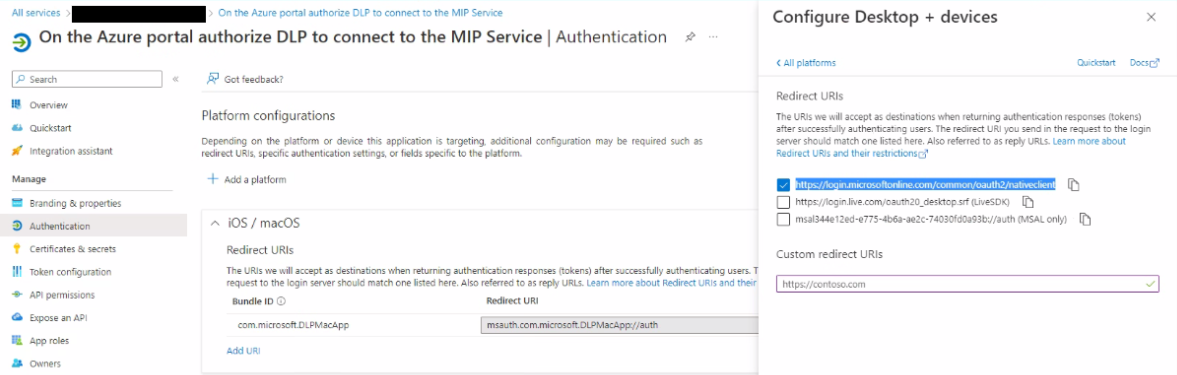

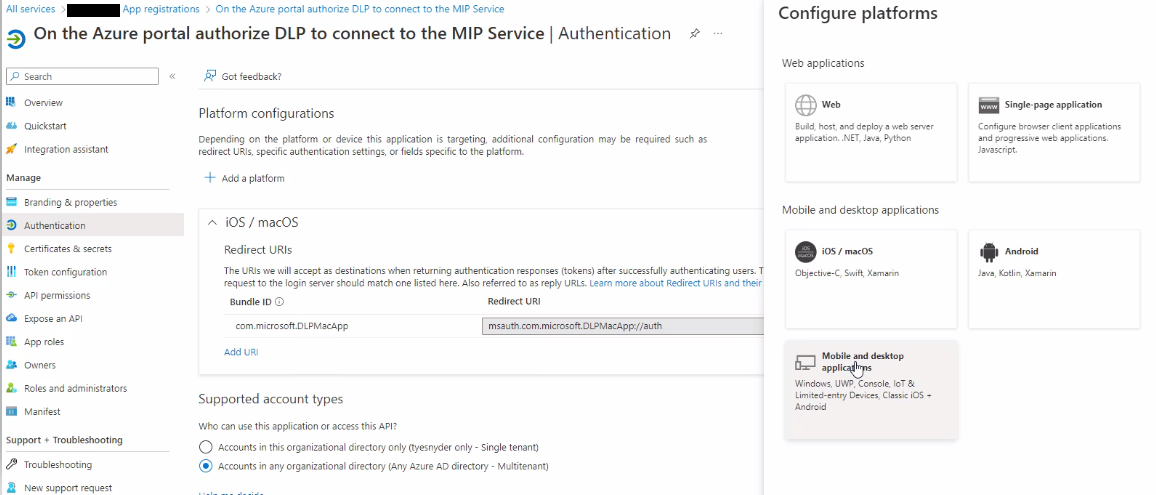

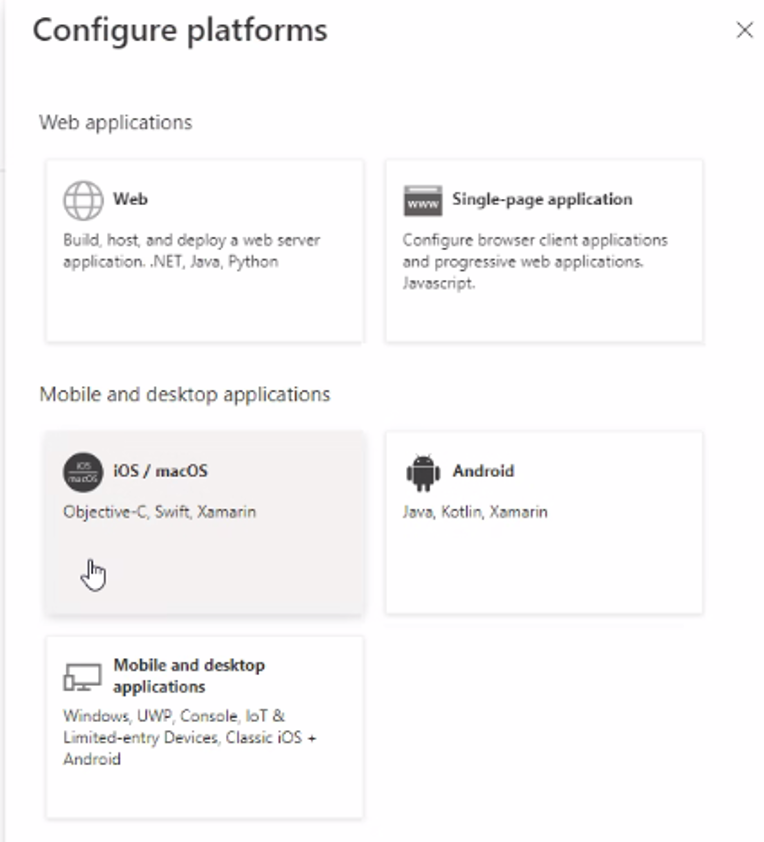

8. Click Add a platform, and select add Windows and macOS as supported platforms

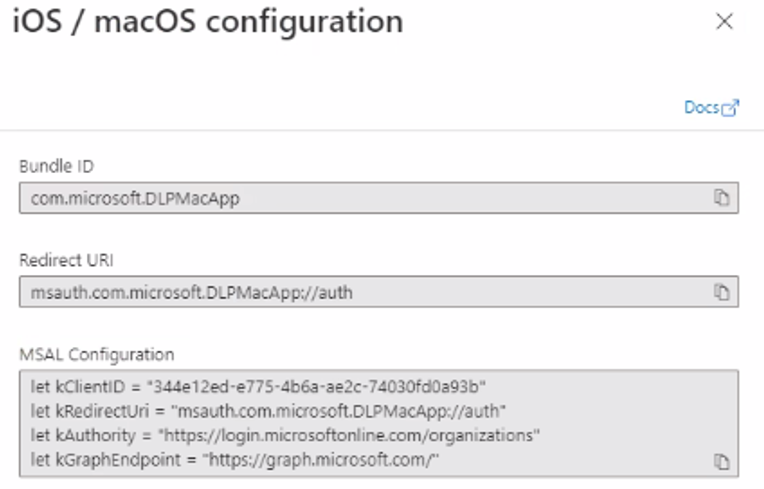

9. In the Bundle ID field for iOS/macOS:
10. Enter com.microsoft.DLPMacApp. The Azure portal then uses this information to generate a Redirect URI.
11. In the Redirect URI field for Mobile and desktop applications (for Windows), enter https://login.microsoftonline.com/common/oauth2/nativeclie
12. You can simply check the box next to: https://login.microsoftonline.com/common/oauth2/nativeclient

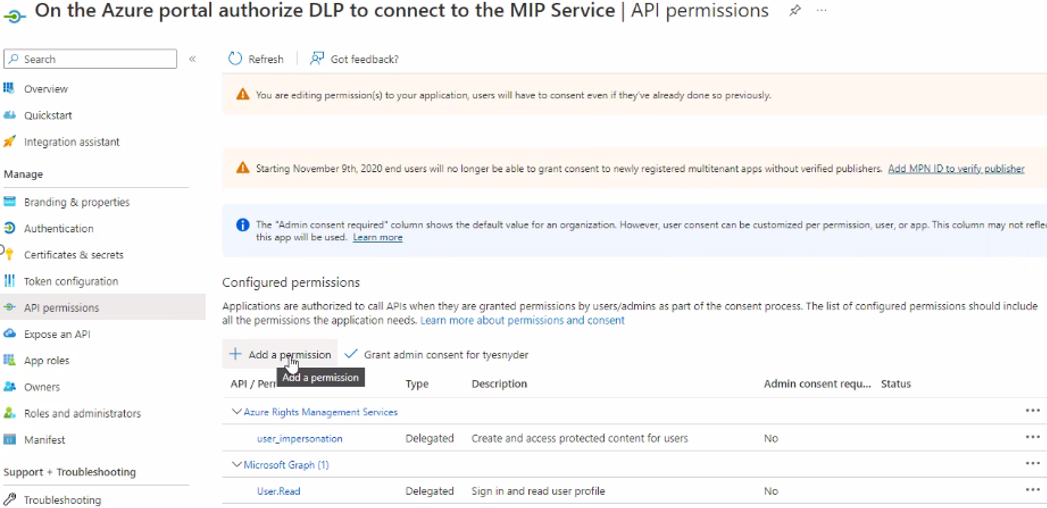

13. In the navigation pane, select API permissions and click Add a permission

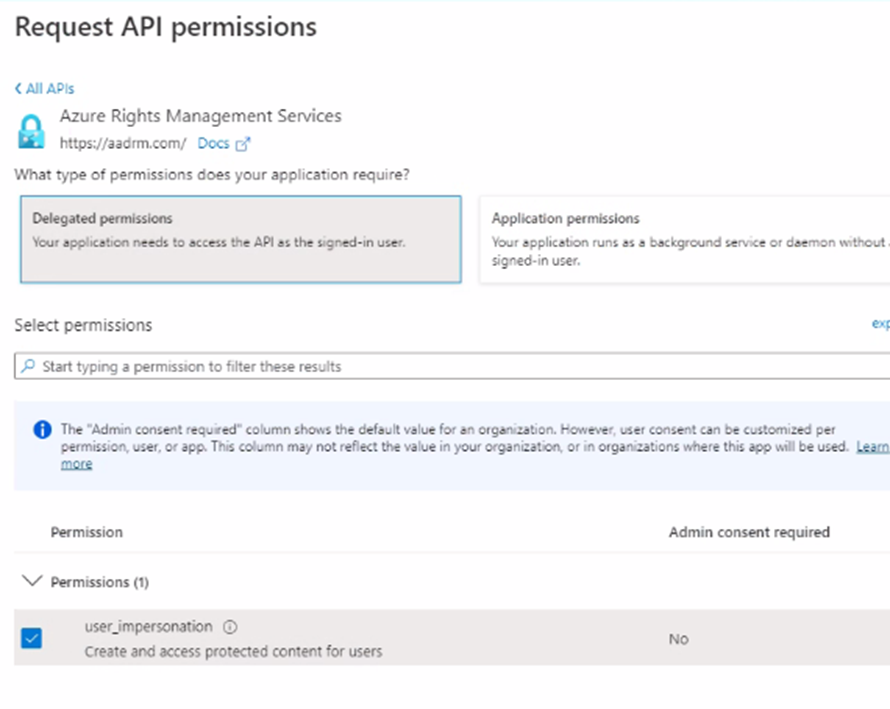

14. Select Azure Rights Management Services from the Microsoft APIs tab.
15. Choose the Delegated Permissions scope
16. Select the user_impersonation permission and click Add a permission.
17. On the API permissions page, click Add a permission

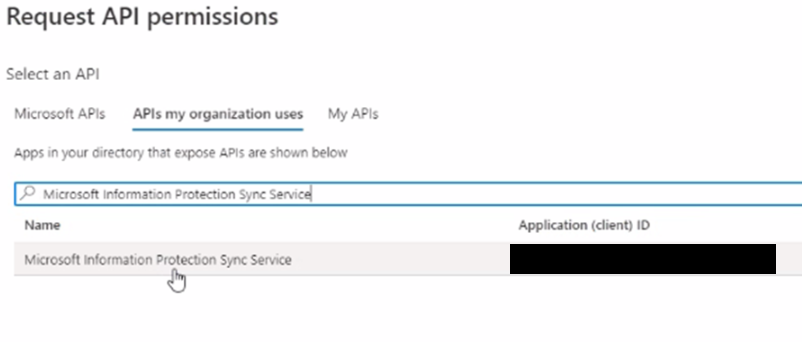

18. Select Microsoft Information Protection Sync Service from the APIs my organization uses tab.
19. Choose the Application Permissions scope.
20. Select the UnifiedPolicy.Tenant.Read permission and click the Add permissions button.

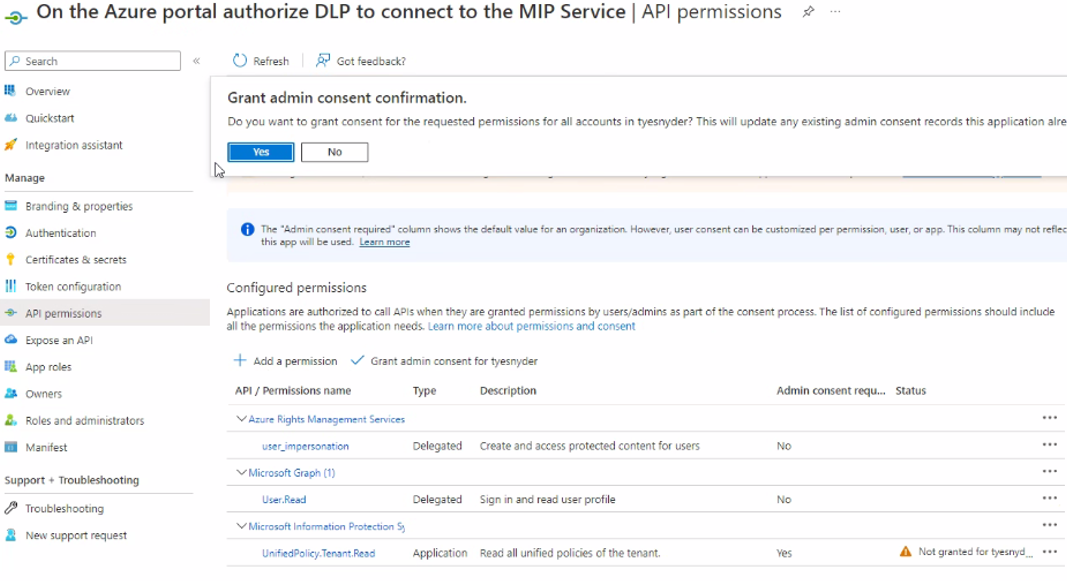

21. Click Grant Admin Consent and then click Yes.

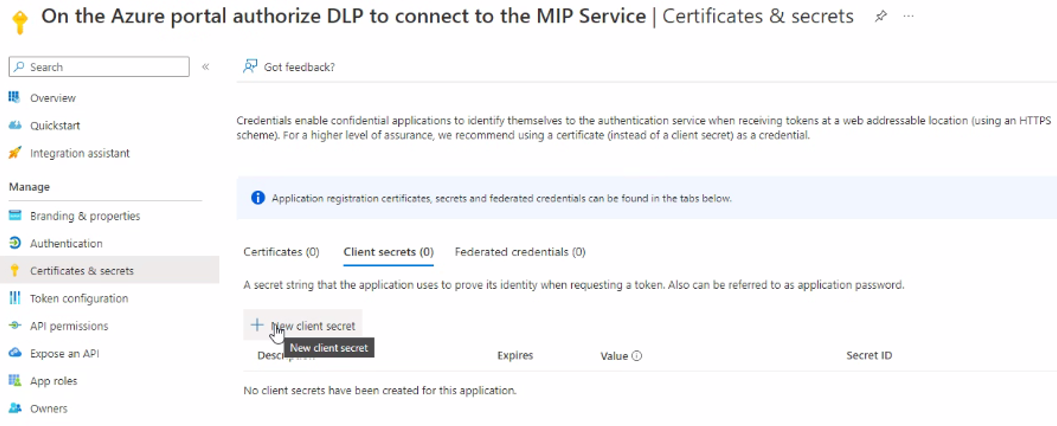

22. In the navigation pane, select Certificates & secrets.

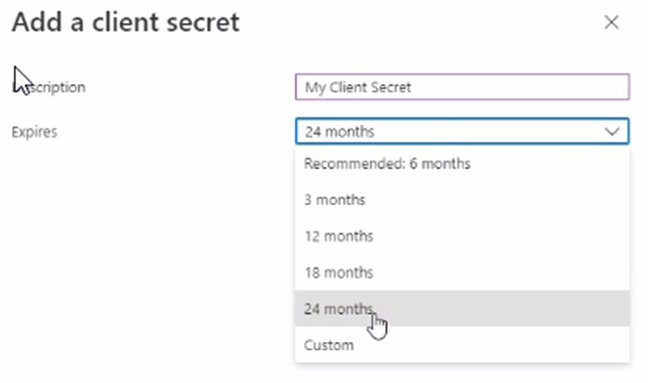

23. Under Client secrets, click New client secret.
24. Add a description
25. Choose a validity period and click Add.
26. Save a copy of the client secret immediately as it is not visible later. You use this client secret later to configure MPIP credential profiles that Symantec Data Loss Prevention uses to authenticate with the MPIP service.

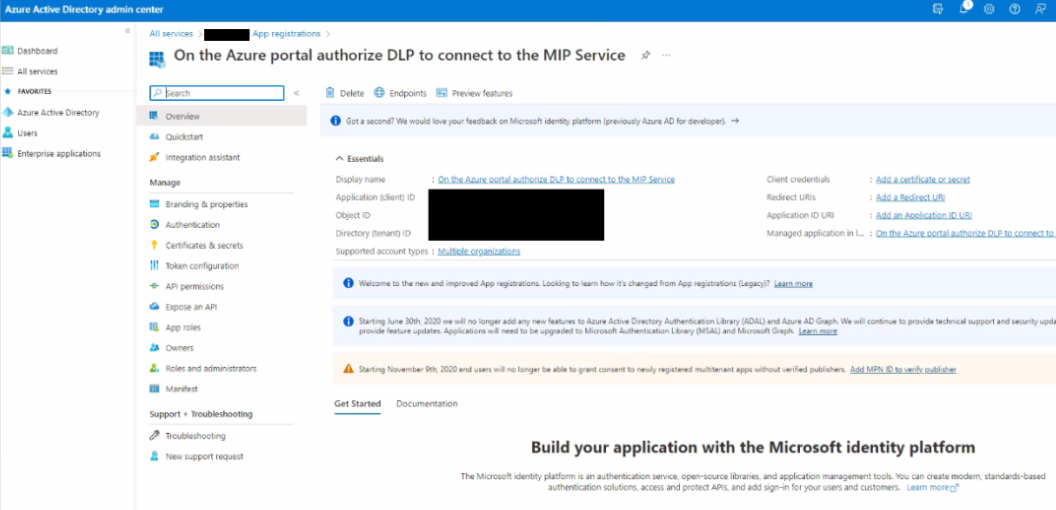

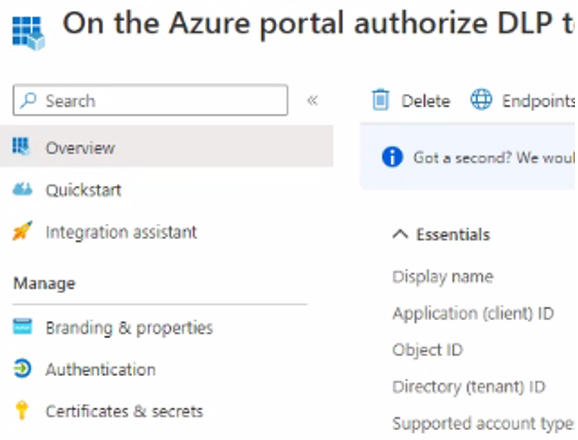

27. In the navigation pane, select Overview, and copy the Application (client) ID and Directory (tenant) ID values. You use these details later to configure MPIP credential profiles that Symantec Data Loss Prevention uses to authenticate with the MPIP service.
