Issue/Introduction

This is a Quick Install guide for the Data Loss Prevention Detection Server

For the full "DLP Quick Install Guides" please visit the following link: DLP Quick Install Guides

Environment

Linux

Cause

The Detection Servers are core components required for Data Loss Prevention.

Resolution

VERSION DISCLAIMER: Please note that the following instructions are version agnostic, and can generally be used on any currently supported version. As such, you will find several variables denoted such as "<DLPversion>" to indicate where a version number "should" be used. You will need to replace these variables with the appropriate version that you are attempting to use. Below are a few examples of such translations... <DLPversion>  = 15.8, 16.0, 16.0.1 or 16.0.2 <DLPfullversion>  = 16.0.10000.60631 <ORACLEversion>  = 193000 or 19.3.0.0 <JREversion> = jdk8u322-b06 or 8u322b06



Download Installers: https://support.broadcom.com/group/ecx/productdownloads?subfamily=Data%20Loss%20Prevention
DLP Platform Installer: Symantec_DLP_<DLPversion>_Platform_Lin-IN_<DLPfullversion>.zip

RHEL Developer Subscription:
     RHEL Registration Quick Install Guide for Linux

Firewalld:

     DLP on RHEL: How to open firewalld ports

DLPInstallers directory:
     - At the root level create a new directory called "DLPInstallers", this will be used to download all of the DLP related software.
          mkdir /DLPInstallers

     - Download all of the DLP/Oracle installers and place them into this "DLPInstallers" directory.

Download additional software:
     yum install zip unzip
     - This will install "zip", and "unzip"
     - You may see a message indicating that one or more of these is already installed. That is perfectly fine, you can install any missing utilities and move on.

Install Java:
     Java AdoptOpenJRE Quick Install Guide for Linux

Create the Environment Variables:
     Environment Variables Quick Install Guide for Linux





Install the DLP Detection Server:
- Copy the "DetectionServer.zip" to the DLPInstallers dir
     unzip DetectionServer.zip

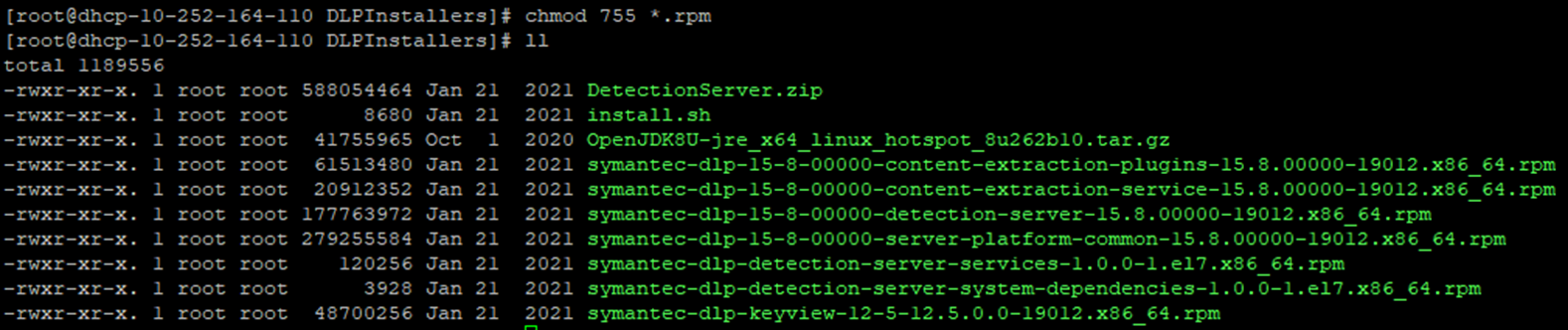

- Grant permissions to the files 755
     chmod 755 *.rpm


- Install/Confirm the Dependencies
          - Create a new "downloads" directory
               mkdir downloads
          - Run the following YUM command to download the dependencies
               yum install --downloadonly --downloaddir=./downloads *.rpm
          - CD into the downloads directory
               cd downloads
          - Run the following YUM command to install the dependencies
               yum install *.rpm

- Install using the "install.sh" script
     ./install.sh -t detection


- Run the DetectionServerConfigurationUtility

-Navigate to: /opt/Symantec/DataLossPrevention/DetectionServer/<DLPversion> /Protect/install

-Run:
./DetectionServerConfigurationUtility -silent -jreDirectory=/opt/AdoptOpenJRE/<JREversion> -serviceUserOption=NewUser -serviceUserUsername=SymantecDLP -bindHost=0.0.0.0 -bindPort=8100 -fipsOption=Disabled

Add your Detection Server to the Enforce Console:
     - Open the Enforce Web Interface
          https://<enforce>/ProtectManager/Logon
          System > Servers and Detectors > Overview
     - Click on "Add Server"
          Select "Software Server"
     - Select your Detection Server Type:

     - Specify the Detection Server Details

     Name: The display name of the detection server in the Enforce Console
     Host: Servername or IP Address of the Detection Server
     Port: Port for the detection Server to listen to for Enforce (default is 8100)

     - Save the Server

The Detection Server should report in within a few seconds. If it does not, simply restart the Detection Server Service(Detection Server), and the SymantecDLP Detection Server Controller Service (Enforce).
