How to display Agent version in a column of the list of computer in DSM Explorer ?

Products

• CA Client Automation - Asset Management
• CA Client Automation - IT Client Manager
• CA Client Automation

Issue/Introduction

In DSM Explorer in the list of computers it is possible to add columns like IP Address, MAC Address. But ITCM Agent version is not available.

It could be interesting to have this information available in the list of computers to easily see the version of the computers.



The computers have 4 additional fields which could be used to put custom information : User data 1, User data 2, User data 3, User data 4



One of this field could be used to put the ITCM Agent version

And in DSM Explorer this field could be as a column in the list of computers.



This could be done by using a SQL Query scheduled to be executed at regular time via an Engine SQL script.

Environment

Client Automation - All versions

Resolution

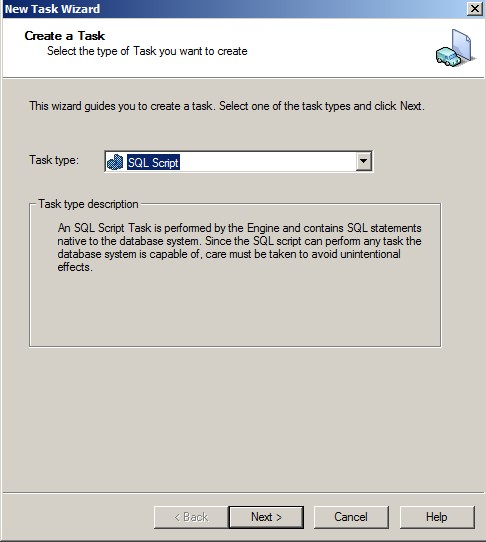

1- In DSM Explorer select one engine (eg: SystemEngine) and create a new Engine task with type SQL Query :

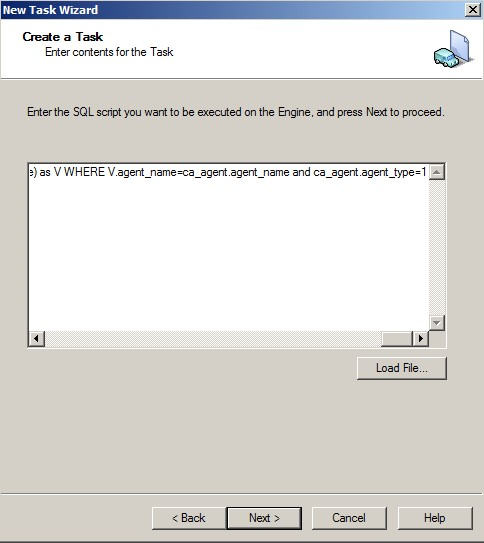

and put this SQL Query :



update ca_agent set ca_agent.user_def4=V.agent_component_version FROM (select U.object_uuid, MAX(U.agent_component_version) agent_component_version FROM (select a.object_uuid,c.agent_component_version from ca_agent_component c, ca_agent a WHERE c.agent_comp_id=5 and a.object_uuid=c.object_uuid and a.agent_type=1 UNION select a.object_uuid, '12.5.1110.142' FROM ca_agent a, ca_software_def s, ca_discovered_software d where s.name like '%12.5 SP1 C1%' and d.asset_source_uuid=a.object_uuid and d.sw_def_uuid=s.sw_def_uuid and a.agent_type=1 UNION select a.agent_name, '12.5.1010.1422' FROM ca_agent a, ca_software_def s, ca_discovered_software d where s.name like '%12.5 SP1 FP1%'and d.asset_source_uuid=a.object_uuid and d.sw_def_uuid=s.sw_def_uuid and a.agent_type=1) as U group by U.object_uuid) as V WHERE V.object_uuid=ca_agent.object_uuid and ca_agent.agent_type=1





Remark : The query should be put in a single line. It should not be cut with carriage return.

Then we could schedule it for an execution once a day







2- Once the job executed by the Engine, the field User Data 4 of the computers should be filled with the ITCM Agent version.

Remark : If the field User data 4 is already used for another information the beginning of SQL Query should be updated with field number to use :



Example for the field User data 3

update ca_agent set ca_agent.user_def3

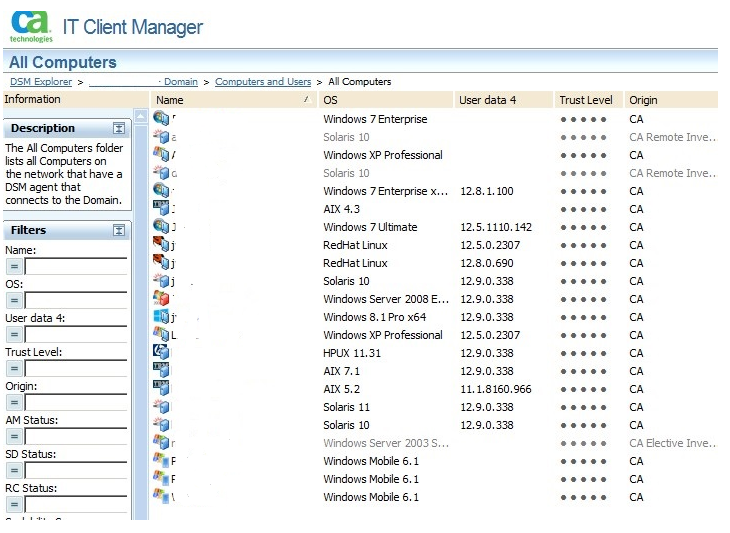

3- Then the column User data 4 could be added in DSM Explorer in order to display the Agent version :
