Error popup "Parent Object does not exist" in IDMS Visual DBA

Products

• IDMS

Issue/Introduction

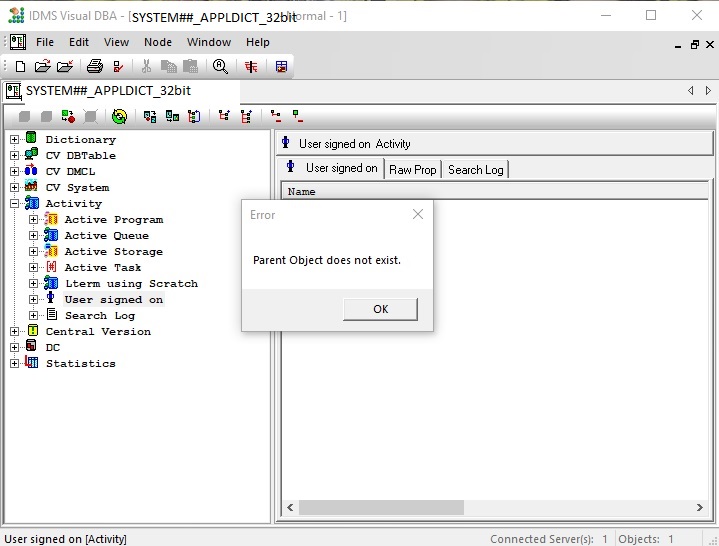

When managing the "User signed on" branch under "Activity" in the DOM, a popup with the message "Parent Object does not exist" appears.

There are no other symptoms, but this can happen for every signed-on user and the OK button must be clicked for each one, so on a busy system, this problem can have a significant impact for the Visual DBA user.

Environment

Release : All supported releases.
Component: Visual DBA.

Cause

The table procedure SYSCA.VDBA_DICTIONARY5 does not contain a column representing the dictionary name that is specified on the ODBC datasource that was used to connect to the IDMS CV from Visual DBA.

Resolution

Make sure that the SYSCA.VDBA_DICTIONARY5 table procedure contains a column for the dictionary name which is on the ODBC datasource definition.

The following datasource has Dictionary: APPLDICT.

So SYSCA.VDBA_DICTIONARY5 must contain a column APPLDICT.

create table procedure SYSCA.VDBA_DICTIONARY5 (
        "SYSTEM"    CHAR(1)    -- Dictionary SYSTEM
      , "APPLDICT"  CHAR(1)    -- Dictionary APPLDICT
      , "SYSDICT"   CHAR(1)    -- Dictionary SYSDICT
    ) external name VDBADICT;



Additional Information

How to identify the dictionaries Visual DBA can work with
