UIM - Gather SNMPCOLLECTOR device attribute information

book

Article ID: 211268

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) CA Unified Infrastructure Management On-Premise (Nimsoft / UIM) CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

We need to access the information on all the devices present in the snmpcollector.

Where can I get this information from the UIM Database?



Environment

  • Release: UIM 9.x+
  • Component: SNMPCollector version 3.x and later

Resolution

SNMPcollector maintains its own DB.

You can access this DB

going to:

http://<snmpcollector_ip>:9715/database

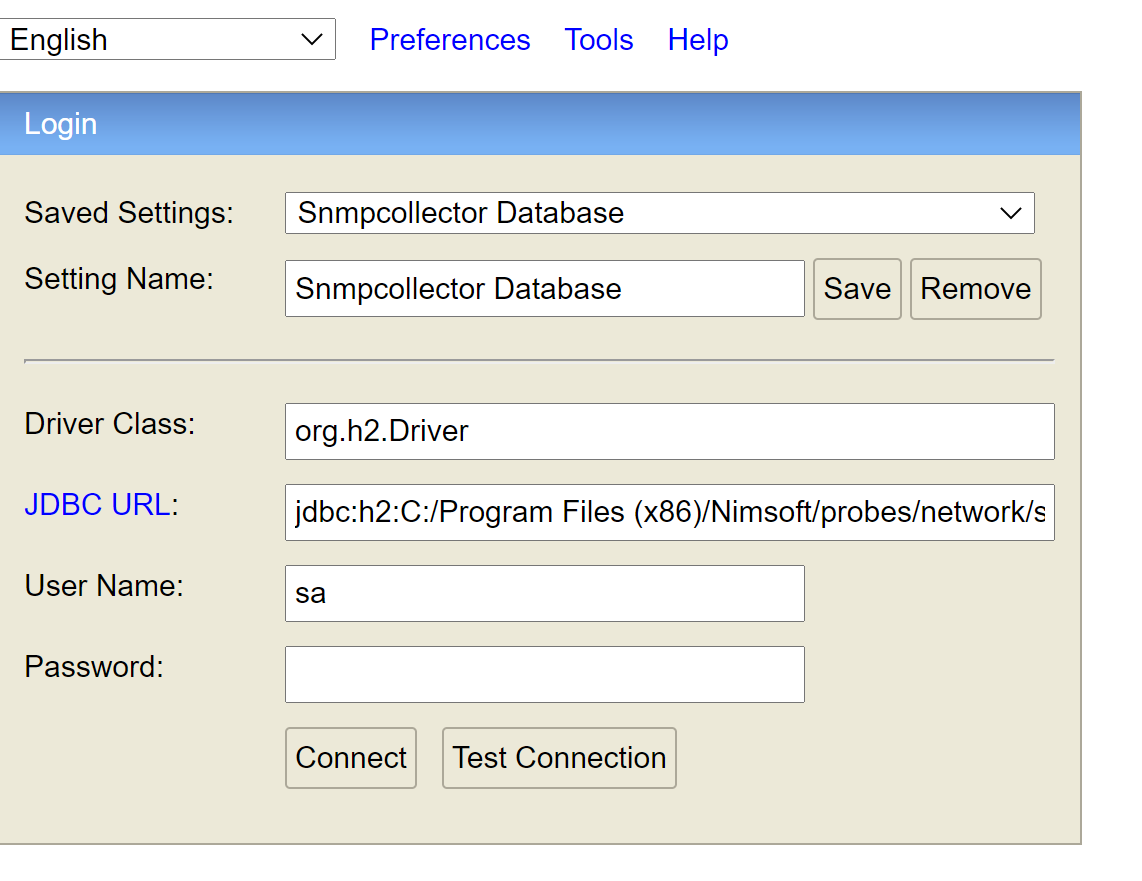

The first screen is an authentication page with several parameters.  Just click "Connect" without changing anything.

**This is a relational database and we strongly discourage changing values here unless specifically instructed to do so by Support.**

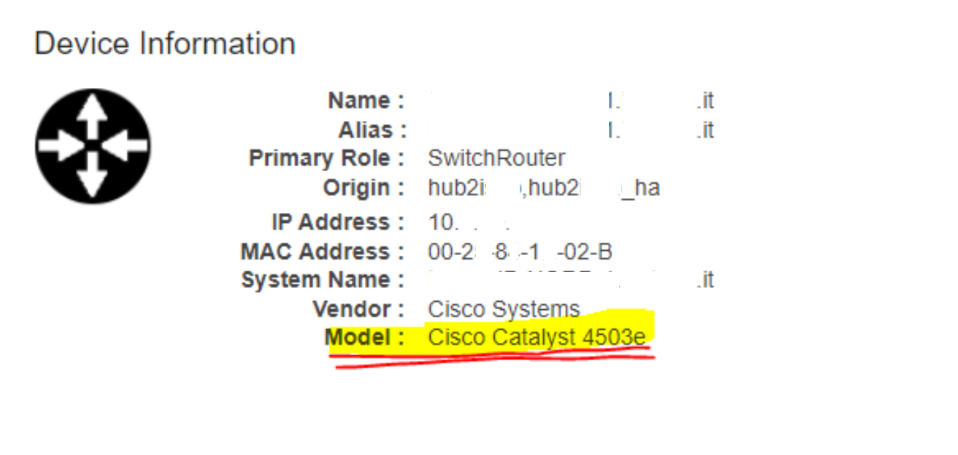

If you need to find a specific device attribute:

Identify the ID of the device:
SELECT * FROM SNMPDEVICE

And then:

SELECT * FROM SNMPDEVICE_ATTRIBUTES where ID_OID = '<id_from_query_above>'
