mysql probe fails to start on linux robot and throws max restarts

book

Article ID: 188415

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) Unified Infrastructure Management for Mainframe CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

mysql probe fails to start on linux robot and produces "max restarts" error in controller log.

(Example: "Controller: Max. restarts reached for probe 'mysql' (command = mysql)").

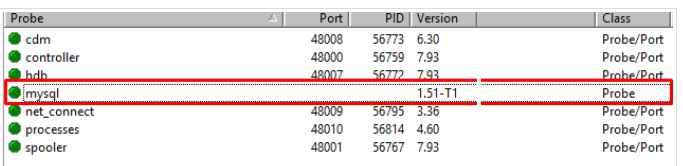

The probe may even turn green in Infrastructure Manager, but not get a port or pid and eventually turns red error state.

Cause

Determined there was a missing shared library rpm package (such as: compat-libstdc++)
(Note - Some recent Linux distributions come with newer versions of the C++ libraries and some probes depend on older libraries or updated libraries).

Environment

Release : 9.2.0+

Component : UIM MYSQL 1.51 T1/ 1.51 or higher

Resolution

Please take the following steps to determine if this is the issue and see what package the probe is looking for:

1. De-activate mysql probe.

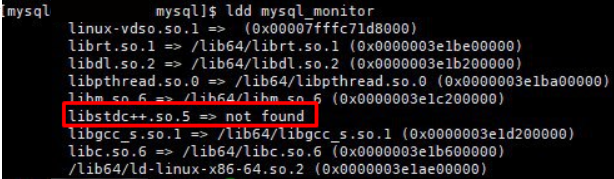

2. On the Linux machine, go to the probe mysql folder on the system and provide the output of the following ldd command:

 ldd  mysql_monitor



In this instance, this is the missing library:

   libstdc++.so.5 => not found

3.Research the particular version for your particular Linux version to find a correct install command:

Example:
# yum install compat-libstdc++-[particular version... such as 33.x86_64]

#  yum provides */ANY_FILENAME_GOES_HERE
Make note of the rpm that results from that output and consider installing it.

# yum provides */libstdc++.so.5

4. Run the command and install the package.

5. Recheck ldd for the mysql_monitor binary if failing on the shared lib dependency

6. Activate the mysql probe or redeploy again from the local archive and it should now work.



One Exception:
RHEL8 does not provide libstdc++.so.5.  It has been attached to this KB.  Please copy this file in the path "/lib64/" in the RHEL8 machine and redeploy the mysql probe.  This libstdc++.so.5 requirement will be updated to version 6 in the probe versions after mysql 1.60.

Additional Information

Currently, only MySQL v5.x is supported not 6.

Reference:

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/ca-unified-infrastructure-management-probes/GA/alphabetical-probe-articles/mysql-mysql-server-monitoring/mysql-mysql-server-monitoring-release-notes.html#concept.dita_0fa3f44e687e1bd17705ba286e5d201e4c53262c_ProbeSpecificSoftwareRequirements

Attachments

1638810030572__libstdc++.so.5 get_app
