Some ACLs from IM are not visible in Account Admin in OC

book

Article ID: 138216

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) Unified Infrastructure Management for Mainframe CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

Some of the ACLs created in Infrastructure Manager are not visible in Account Admin in the Operator console.

The 2 lists of ACLs are not in synch. Why?

Cause

Missing configuration in IM. Patch needed if the option "Make ACL permissions available for Account/Contacts" is not visible:

      VS

Environment

Release : UIM 9.x / 20.x

Component : UIM - HUB

Resolution

Steps to apply the patch (nimbus.dll) attached:



The patch has to be applied manually by replacing the binary(nimbus.dll) in the machine where the UIM server is installed. Please follow the steps below:



1) Close the Infrastructure Manager application

2) Go to “C:\Program Files (x86)\Nimsoft\lib”. Take a backup of the file nimbus.dll by moving to another folder

3) Copy the updated nimbus.dll to “C:\Program Files (x86)\Nimsoft\lib”

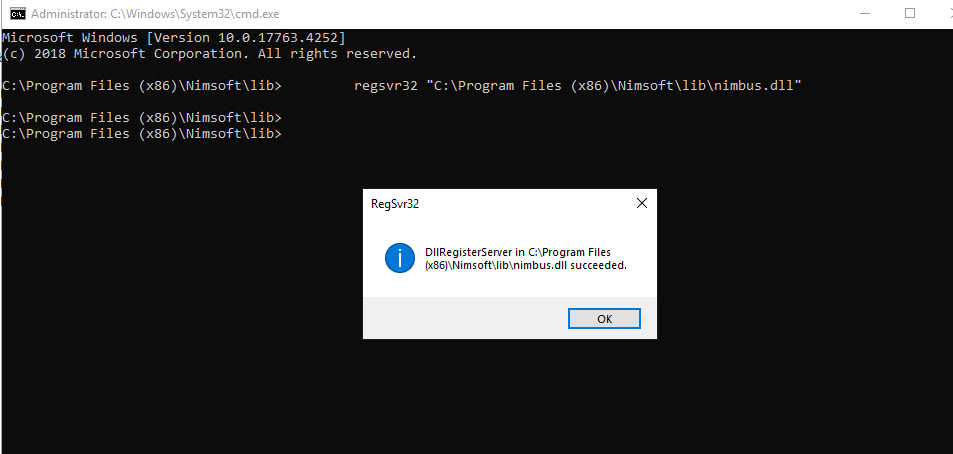

4) On command prompt, run the following command to register the DLL

         regsvr32 "C:\Program Files (x86)\Nimsoft\lib\nimbus.dll"

5) Start IM GUI and go to Security=>"Manage Access Control List...".

6) Click on any ACl which is manually created and click on "Make ACL permissions available for Account/Contacts" check box showed in same window.

Once you click this check box, just refresh the UMP window. This ACl will start showing in accout admin portal on UMP.

7) Repeat #6 for all manually created ACL's.

NOTE: In the above steps, replace “C:\Program Files (x86)\Nimsoft" with the appropriate path where IM is installed.



Conditions to work:

====================

1 - The new Checkbox with the new DLL's will work just in the Primary Hub

2 - The IM install on the Primary Hub MUST be at the SAME Nimsoft install folder

3 - Finally the IM to be used MUST be the IM from the Primary Hub

Additional Information

Related KBs:

UIM / DX Unified Infrastructure Management Users Explained (broadcom.com)

Attachments

1570456946759__nimbus.dll get_app
