Problem accessing NFA console and sign-in getting redirected to https

Products

• CA Network Flow Analysis (NetQos / NFA)

Issue/Introduction

Problem accessing NFA console sign-in and getting redirected to https

Observed after upgrade from NFA 9.5 to NFA 10.0.2

Using http and not https for logging into NFA console

Environment

Release : 10.0

Component : NQRPTA - REPORTERANALYZER

Resolution

From the NFA_SSO.txt file in the RemoteEngineer can see the SsoSchme is set to https and SsoPort to 8382 instead of 8381

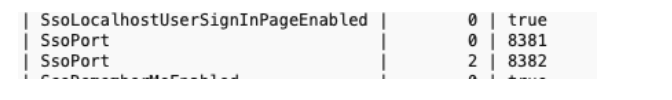

Also from the remote engineer logs the NFA_SSO.txt file has below entries and looks like below with local override set to https and port 8382

This will be set in  reporter.performance_center_properties table and dumped to the NFA_SSO file





Since using http and not https can use below script to reset back to http



Download the ApplyHTTPS.zip script from the article linked below



https://knowledge.broadcom.com/external/article?articleId=213529



Unzip the file and  select Run As Administrator from command line



Select the option to Apply http - option2

(Press '2' to setup HTTP.)



After this the NFA login will correctly default to http
