How to configure the Log Analytics Probes

book

Article ID: 10696

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

In order to use Log Analytics there are several probes that must be deployed and configured.

This can be quite confusing at first glance and this document is intended to reduce that confusion and help you to begin leveraging Log Analytics in your environment



There are 3 probes that need to be deployed

Log_forwarder

  • Probe Documentation
  •  Probe that scans the configured log files and publishes the log file content to a specific UIM Queue (Default Subject: LOG_ANALYTICS_LOGS)
  •  Deployed on the systems who’s logs you wish to monitor
  • AC or MCS
    • MCS templates recommended
    •  IM not supported



Axa_log_gateway

  • Probe Documentation
  • Probe that reads data from queue on hub (Default Subject: LOG_ANALYTICS_LOGS), and writes the data to the CA App Experience Analytics (AXA) Kafka topic (Default: logAnalyticsLogs).
  • Must be deployed on a hub
    •  Either on primary hub or multiple secondary hubs
      • Must not mix secondary and primary hubs!
  • MCS only
    • AC and IM not supported



Log_monitoring_service

  • Probe Documentation
  • Probe that queries log data stored in AXA and raises notification based on predefined queries
  • Each instance of probe can only monitor single tenant ID in AXA
  • Probe should be deployed in same region as AXA Datastore with good network connectivity as it queries the datastore directly
  •  AC or MCS
    • MCS templates recommended
    • IM Not supported
    • Must not mix AC and MCS

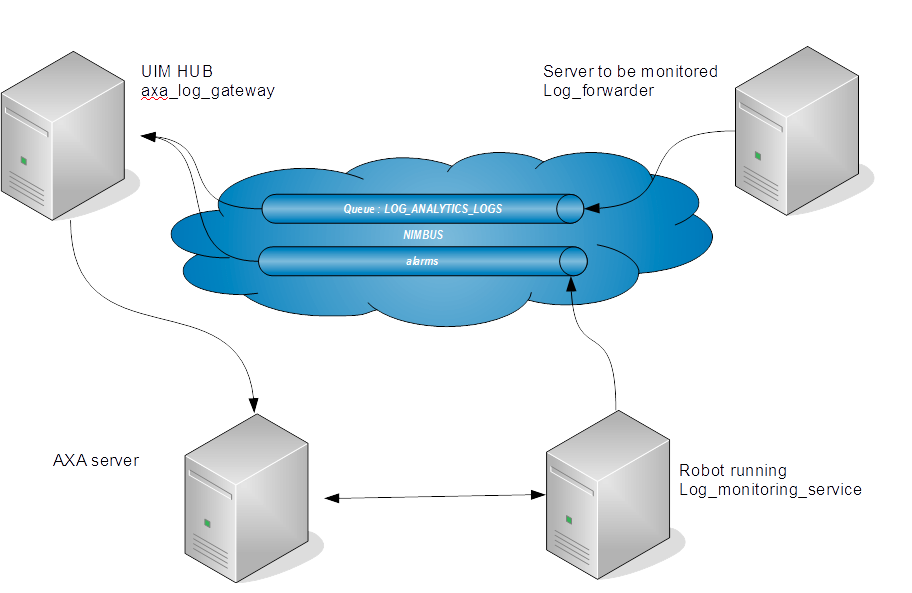

Below is a simple diagram showing how these would be deployed



Environment

UIM Server 8.51 and later

Probes:
log_forwarder:  1.01 and later
axa_log_gateway:  1.01 and later
log_monitoring_service:  1.01 and later


Resolution

1.  Install AXA for Log Analytics.

  • AXA install instructions for Log Analytics can be found here


2.  Deploy “Setup axa_log_gateway” MCS template to Hub.

  • The only setting that needs to be changed is “AXA Kafka Broker(S)”
  • Change the value of localhost:9092 to the correct address and port of your AXA Kafka (default port is 9092)

User-added image

3. Deploy “Setup log_forwarder” MCS template to Robot you wish to monitor.

  • You must define the correct value for “AXA Tenant ID” to enable the gateway to write the data into the correct tenant.



User-added image

  • The Tenant ID is not the friendly text you entered when creating the tenant in AXA, rather it is a UUID
  • Follow these steps to obtain the TenantID
    1. Login to the desired AXA Tenant
    2. Select the AXA tab
    3. Select Manage App
      • If you have an app in AXA open its properties and go to step 6, otherwise continue to step 4

    4. Select NEW APP
    5. Enter anything in the name field, we are just creating a dummy app, and click next.
    6. Select the WEB APP tab.
    7. You will see the TenantID in the code snippet



User-added image

4. Deploy the specific “Log Forwarding MCS template” for the type of log you wish to monitor

  • The only required fields for basic configuration are
    • Profile name – user defined name for this probe profile
    • File – full path to the log file on the robot you wish to monitor


5. Deploy the “Setup log_monitoring_ser” MCS template to robot that will run this probe

  • Define all 3 fields
    • AXA Tenant ID – same tenant ID as in “Setup log_forwarder”
    • AXA Elasticsearch Host – hostname or IP of AXA server
    • AXA Elasticsearch port – default is 9200


6. Deploy the "Log Monitoring Service" MCS Template

  • Define the following
    • Profile name – user defined name for this probe profile
    • Log Type – select the log type to monitor
    • Query String – enter the query string that will trigger QoS and Alarm
    • Enable alarm if desired and define the thresholds
