Migrate ODBC connections from CCI to TCP/IP

book

Article ID: 9710

calendar_today

Updated On:

Products

IDMS IDMS - Database IDMS - ADS

Issue/Introduction

This document describes how to set your IDMS CV up to use TCP/IP and how to change your ODBC data sources to use the new "IDMS" communications protocol.



With the introduction of the TCP/IP based “wire” protocol for ODBC processing in CA-IDMS/Server from r17 onwards, there is no reason to continue to use CCI for such connections.

TCP/IP based processing is more robust, reliable and faster than CCI and eliminates the need for the CCITCP & CCIENF address spaces for CA IDMS Server processing.

Broadcom strongly recommends that clients migrate all of their ODBC processing for those clients using the IDMS/Server product to the "IDMS" (or TCP/IP based) communications protocol.  No application coding changes are necessary and the modifications required to implement this change are very simple.

Environment

IDMS all supported releases

Resolution

Update CV startup JCL
Ensure that the necessary datasets have been added to the CV startup JCL as described in the TCP/IP Support documentation

Update CV System Generation
Use the following system generation syntax as a sample of the statements required to support the usage of TCP/IP based ODBC connections in the CV.  Listed below are the customization points that you should consider:

·         The PORT IS value in the listener PTERM (TCPJSRV) is what must be used later in the definition of any data sources intending to use this new communications interface.  By default, the PORT number is set to 3700.  This number can be changed at the discretion of your site.  The port number specified must be unique within your LPAR.

·         The REPEAT COUNT in the bulk PTERM definition should be set to the maximum number of concurrent connections you expect to use.

ADD TCP/IP
    DEFAULT STATUS IS ON
    DEFAULT TCP_NODELAY OPTION IS OFF
    DEFAULT STACK IS DEFAULT
    MAXIMUM NUMBER OF SOCKETS IS DEFAULT
    MAXIMUM NUMBER OF SOCKETS PER TASK IS DEFAULT
    PLUGIN MODULE IS RHDCD1IP
    SERVICES FILE IS SERVICES CASE SENSITIVE
    .
ADD LINE TCPIP
    TYPE IS SOCKET
    MODULE RHDCD1IP
    .
ADD PTERM TCPJSRV
    TYPE IS LISTENER
    PORT IS 3700
    TASK IS RHDCNP3J
    MODE IS SYSTEM PARM IS 'TASK=IDMSJSRV'
    .
ADD LTERM TCLJSRV
    PTERM IS TCPJSRV
    .
ADD PTERM TCP0001
    TYPE IS BULK
    REPEAT COUNT IS 49
    .
ADD LTERM TCL0001
    PTERM IS TCP0001
    .



For more information, see Configure your IDMS System to use TCP/IP

Work with your Mainframe Network Security Administrator

Access to mainframe-based ports are often times secured behind a network firewall.  If such is the case at your site, you will need to work with your mainframe network security administrator to gain access to whatever "listener" port number you selected in your TCPJSRV PTERM definition.

Ensure that Task Code RHDCNP3J is Unsecured

If task-level security is enabled on your CA-IDMS CV, then you must bypass security for the RHDCNP3J task.  The TCP/IP line driver invokes task RHDCNP3J before the user-id and password are received. Therefore, task code RHDCNP3J must be unsecured and executable by any user.

You can achieve this directly in your RHDCSRTT assembly with this macro entry:

#SECRTT TYPE=OCCUR,SECBY=INT,RESTYPE=TASK,RESNAME='MAP'

Or you can GRANT it to PUBLIC with these security definitions:

CREATE RESOURCE CATEGORY ODBC_TCPIP
    ADD TASK RHDCNP3J
    ;
GRANT EXECUTE ON CATEGORY ODBC_TCPIP TO PUBLIC
    ;

The task code specified in the TASK= clause in the listener PTERM (IDMSJSRV by default) is executed after the user-id and password are received and as such it can be used to implement security to allow specific users and groups access to the connection being defined.

Change Data Source definitions to use protocol IDMS

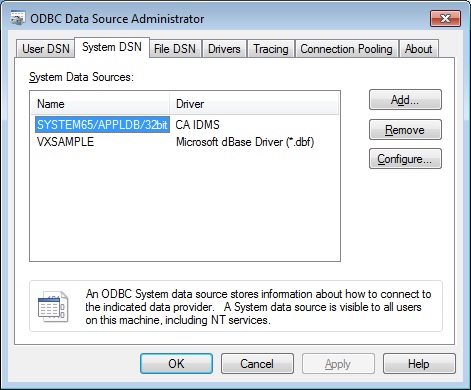

To change your CA IDMS data source definitions to use the wire protocol, go into the ODBC Data Source Administrator application, click either the User DSN or System DSN tab as appropriate, and then click on the data source you wish to change.



Click Configure, and then click the Server tab.   Select the "IDMS" Communications Protocol. Then specify the host name of the LPAR where your CV is running and the PORT NUMBER as defined in the listener PTERM.





Click Apply, OK and then OK again to exit the ODBC Administrator.

Additional Information

For more information, see  Install IDMS Server.

If any assistance is required in making these changes, please don’t hesitate to contact Technical Support.
