The processes probe is reporting that the java process down when it is running

book

Article ID: 8448

calendar_today

Updated On:

Products

DX Infrastructure Management NIMSOFT PROBES

Issue/Introduction

We have configured the "processes" probe to monitor a java process for Tomcat.  The probe is sending alarms as if the process is down (as shown in Figure 1).

Figure 1:

<Please see attached file for image>


However, when we check the robot machine, the process is running.  For example:

processsesRobotHostname:~ # ps aux | grep "/usr/java/java8/bin"

root     12850  0.0  0.0   4552   560 pts/1    S+   13:58   0:00 grep /usr/java/java8/bin

ssuser   30002  3.7  3.5 5461372 433548 ?      Sl   Oct01 120:12 /usr/java/java8/bin/java -Djava.util.logging.config.file=/opt/tomcat-8/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Dss.config=/opt/searchservice/config -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -classpath /opt/tomcat-8/bin/bootstrap.jar:/opt/tomcat-8/bin/tomcat-juli.jar -Dcatalina.base=/opt/tomcat-8 -Dcatalina.home=/opt/tomcat-8 -Djava.io.tmpdir=/opt/tomcat-8/temp org.apache.catalina.startup.Bootstrap start

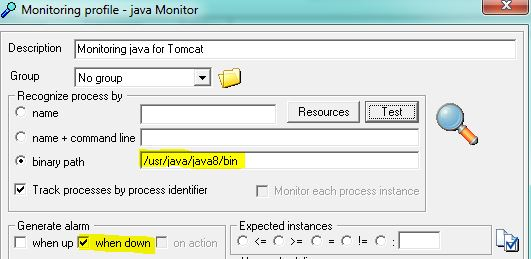

We are monitoring the "/usr/java/java8/bin" folder (as shown in Figure 2).

Figure 2:

<Please see attached file for image>




We are using the "binary path" as opposed to the "name" as we have multiple java processes running on the same machine.

The "name + command line" did not work.  So, we used "binary path" to point to the directory the java process is running from.

Cause

The processes probe is looking for the "binary path".  In RedHat and other Linux distros, "java" may be an alias.

For example:

[[email protected] bin]# which java

/usr/bin/java

[[email protected] bin]# /usr/sbin/alternatives --config java



There are 5 programs which provide 'java'.



  Selection    Command

-----------------------------------------------

   1           /usr/lib/jvm/jre-1.5.0-gcj/bin/java

*  2           /usr/lib/jvm/jre-1.7.0-openjdk.x86_64/bin/java

   3           /usr/lib/jvm/jre-1.6.0-openjdk.x86_64/bin/java

   4           /opt/jdk1.8.0_144/bin

 + 5           /opt/jdk1.8.0_144/bin/java





Environment

UIM 8.5.1
processes probe 4.60

Resolution

Check whether the java process is using an alias or alternative.  Here are a few ways to check that.

Check the "Status" tab on the processes tab.  Look for the "Binary Path".  Is it different than the "Full Path/Command Line" (as shown in Figure 3).

Figure 3:

<Please see attached file for image>




Check the RedHat Linux commands: "which java" and "/usr/sbin/alternatives --config java"  as shown above.

Check the output of the "Test" button in the "processes" probe configuration. For example as shown in Figure 4.

Figure 4:

<Please see attached file for image>




Additional Information

Processes Probe Documentation

RedHat documentation on java alternative commands

You can also use a RegEx.
if the full process command was:
"java/bin/java -Djava.util.logging.config.file=/opt/CA/CABI/apache-tomcat/conf/logging.properties -Djava.util.logging.manager=org.apache.juli...."

I could use a regex, for example:

*java -Djava.util.logging.config.file\=/opt/CA/CABI/apache-tomcat/conf/logging.properties*

<Please see attached file for image>

processes probe configuration using regex and java
