Getting false "DISK NO LONGER AVAILABLE" alarm upon monitoring RFC2790 File System

book

Article ID: 7417

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

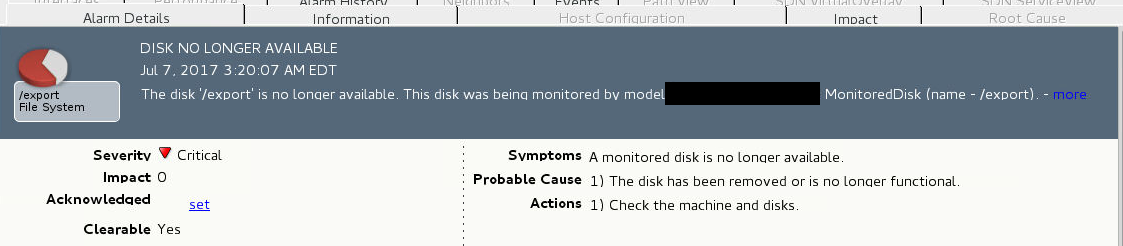

I am getting false "DISK NO LONGER AVAILABLE" alarm (Cause Code = 0xc40060) upon monitoring RFC2790 File System.

<Please see attached file for image>


The File System model that is getting the alarm is not offline. The target Server is a Linux machine running net-snmp and when I monitored the File System I have selected the "Alarm if offline" check box in File System Monitoring entry of System Resources -> File System -> Monitored File System (RFC2790) table.

Cause

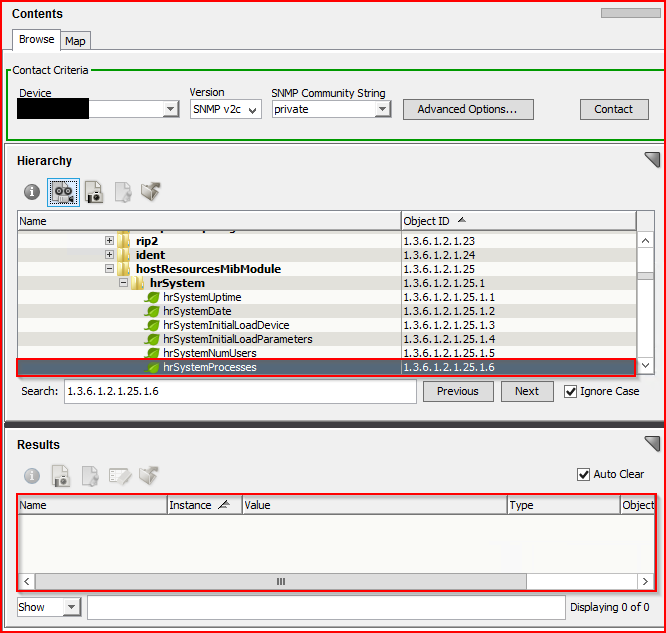

OID 1.3.6.1.2.1.25.1.6 (hrSystemProcesses) is not accessible from the net-snmp database. Spectrum uses this OID to determine if the subAgent is down. For File System monitor to function correctly, net-snmp has to be configured to expose OID 1.3.6.1.2.1.25.1.6 (hrSystemProcesses).

Environment

Spectrum 9.4.x, 10.x on all platforms.Net-SNMP on Linux machine

Resolution

Configure net-snmp to expose OID 1.3.6.1.2.1.25.1.6 (hrSystemProcesses). For example, below is less restrictive access net-snmp configuration (/etc/snmp/snmpd.conf) that will expose the OID. Please work with net-snmp Administrator to configure net-snmp properly that suits your company policy.



# -----------------------------------------------------------------------------
# Here is a commented out example configuration that allows less
# restrictive access.

# YOU SHOULD CHANGE THE "COMMUNITY" TOKEN BELOW TO A NEW KEYWORD ONLY
# KNOWN AT YOUR SITE.  YOU *MUST* CHANGE THE NETWORK TOKEN BELOW TO
# SOMETHING REFLECTING YOUR LOCAL NETWORK ADDRESS SPACE.

##       sec.name  source          community
com2sec local     localhost       public
com2sec mynetwork default      public

##     group.name sec.model  sec.name
group MyRWGroup  any        local
group MyROGroup  any        mynetwork

##           incl/excl subtree                          mask
view all    included  .1                               80

##                context sec.model sec.level prefix read   write  notif
access MyROGroup ""      any       noauth    0      all    none   none
access MyRWGroup ""      any       noauth    0      all    all    all
