Threshold settings for Disk Usage vs CPU or Memory Usage in the cdm probe

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)
• Unified Infrastructure Management for Mainframe

Issue/Introduction

When configuring cdm probe Memory and CPU Usage alarm thresholds they are defined against the total usage metric, but this is not the case with the Disk Usage alarm thresholds.

Why the difference?

Environment

Any currently supported version of the cdm probe

Cause

By default, the cdm probe collects disk usage metrics (in percent and/or MB) which keeps track of the amount of used disk space; however, the thresholds that are set in order to generate alarms for disk usage are actually set against the amount of free disk space that is available.

This is not the case for either CPU or Memory metrics. The thresholds that are set for CPU and Memory Usage alarms are set against the total amount used.

This is by design.

Resolution

cdm Infrastructure Manager Configure GUI

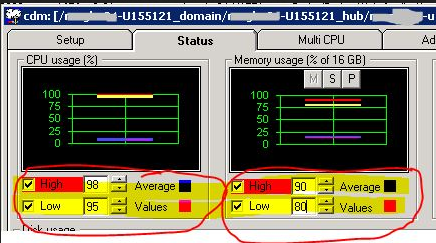

CPU and Memory usage alarm thresholds are set against the total CPU and Memory usage metrics:

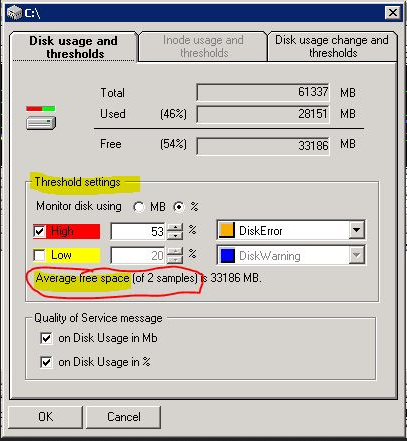

The Disk usage alarm thresholds are set against the average free space and not the total disk usage metric. This is specified in the GUI where you define these thresholds:
