How to use Spectrum Web Services to place a model into Maintenance Mode
Article ID: 69160
Updated On:
Products
Spectrum
Issue/Introduction
How to use Spectrum Web Services to place a model into Maintenance Mode
Environment
Release: Any
Component:
Component:
Resolution
The two examples below use different methods to utilize Spectrum’s Web Services to toggle maintenance mode on a model. The first is a command line implementation. In this case, cURL is used as the command line tool:
To put a device into maintenance mode:
curl.exe -i -H "application/xml" -X PUT -u username:password “http://localhost/spectrum/restful/model/0xa0000fa0?attr=0x1295d&val=false”
To take a device out of maintenance mode:
curl.exe -i -H "application/xml" -X PUT -u username:password "http://localhost/spectrum/restful/model/0xa0000fa0?attr=0x1295d&val=true"
*Both commands above are one line each

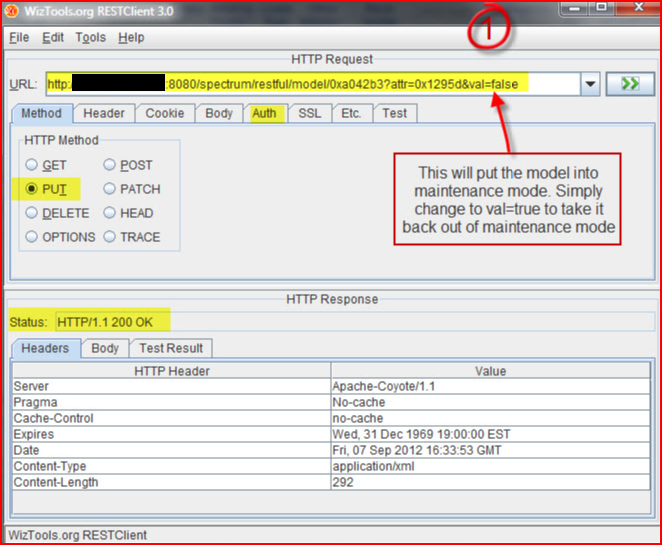

The second example uses the RESTClient:
To put a device into maintenance mode:
curl.exe -i -H "application/xml" -X PUT -u username:password “http://localhost/spectrum/restful/model/0xa0000fa0?attr=0x1295d&val=false”
To take a device out of maintenance mode:
curl.exe -i -H "application/xml" -X PUT -u username:password "http://localhost/spectrum/restful/model/0xa0000fa0?attr=0x1295d&val=true"
*Both commands above are one line each
The second example uses the RESTClient:
Additional Information
Note: If using curl, ensure you use the correct version of curl for your Spectrum environment. curl versions are available with or without SSL support.
