The process below explains how to monitor the nas Activity log, for example for testing of nas AO Profiles that run scripts, send email notifications, etc.
Release: UIM, any version
Component: UIMNAS, Any version
- Guidance
- Testing
Follow these steps:

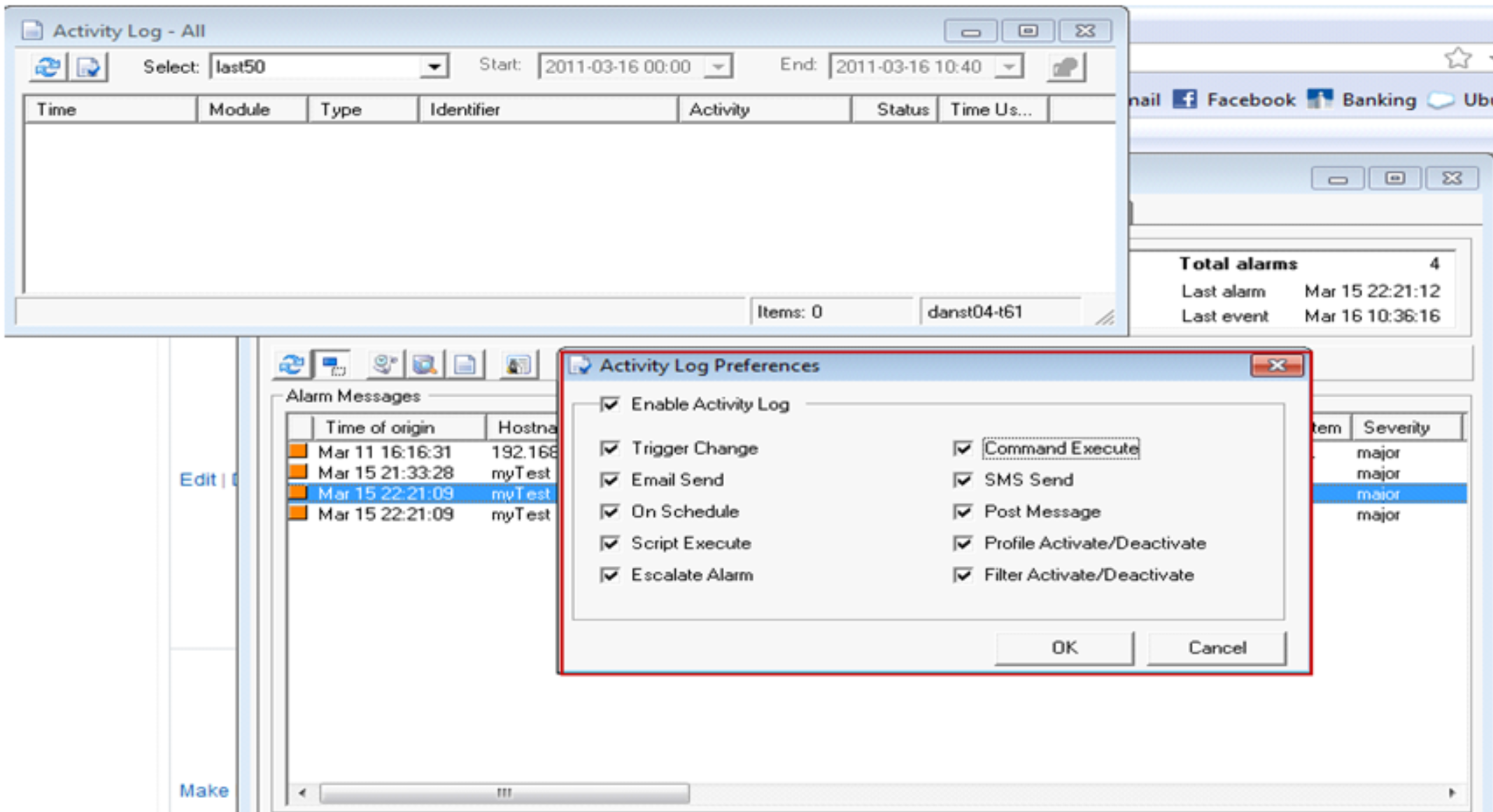

3. On the resulting dialog, click the preferences icon and then from the Select drop-down choose the time period for which you would like to see the activity.

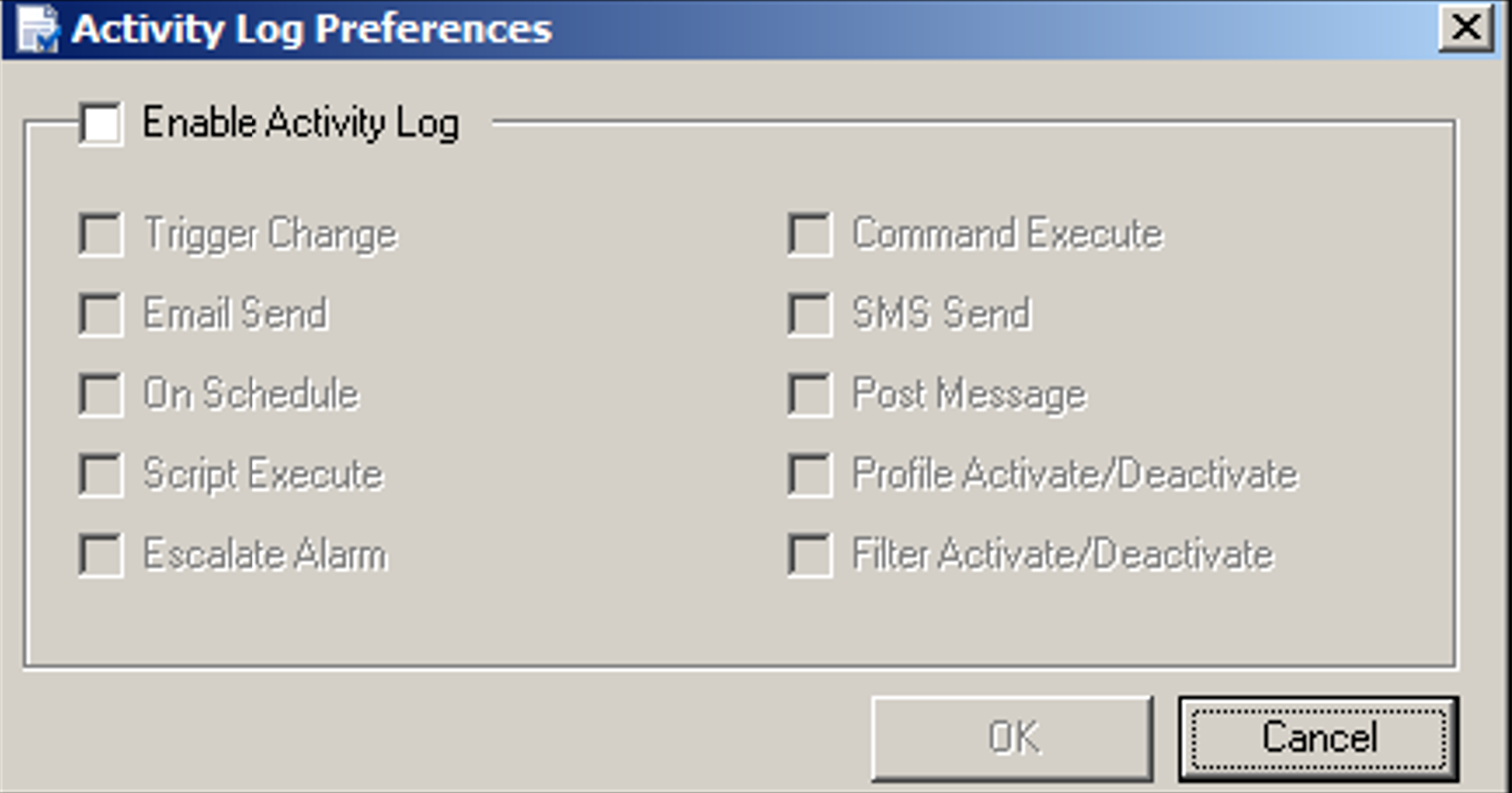

4. Enable logging by checking the Enable Activity Log checkbox, then all alarm activities that you wish to see the log entries for your specified period of time:
5. Then click OK.
6. Make sure to click on Apply from the main nas GUI dialog, then OK.

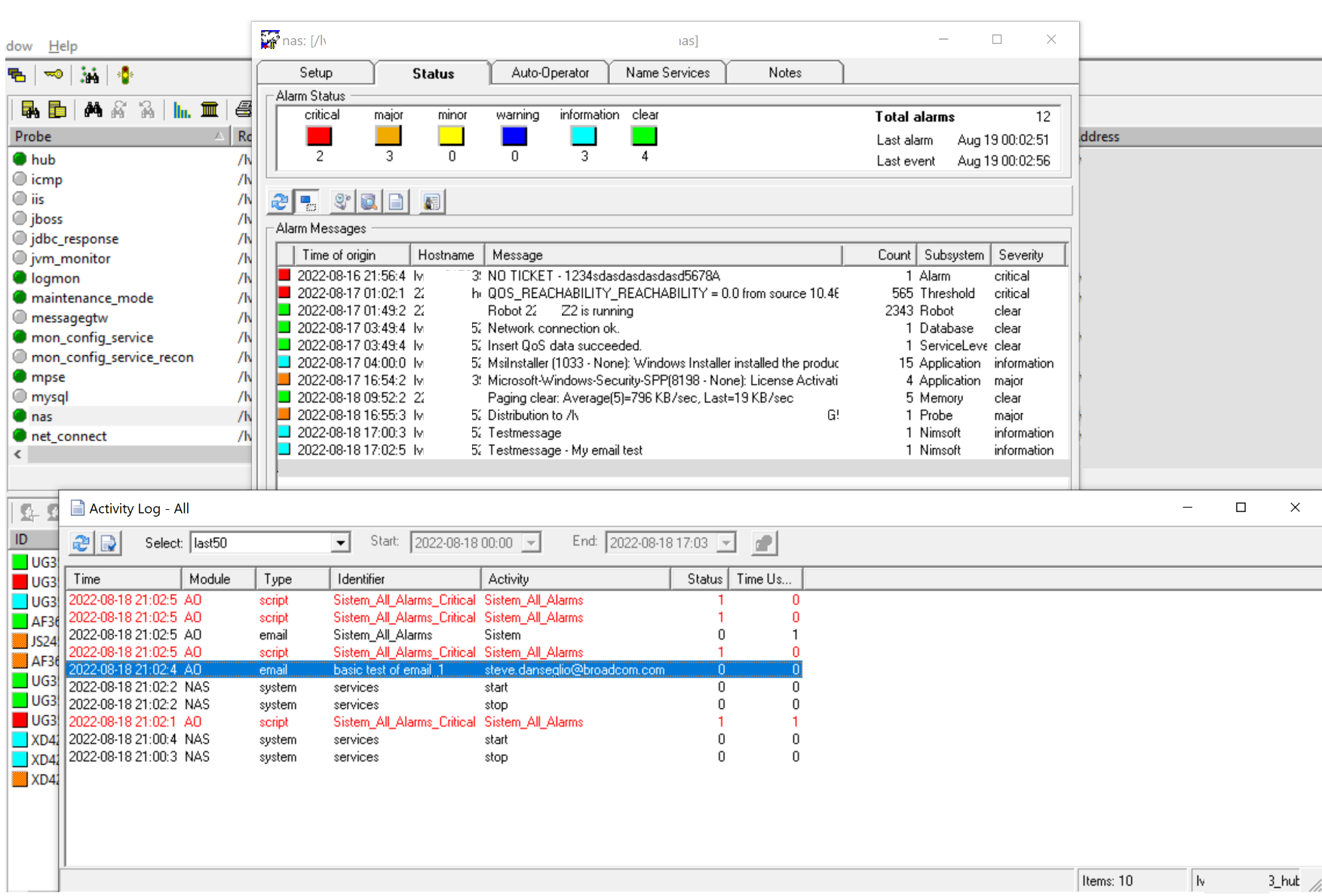

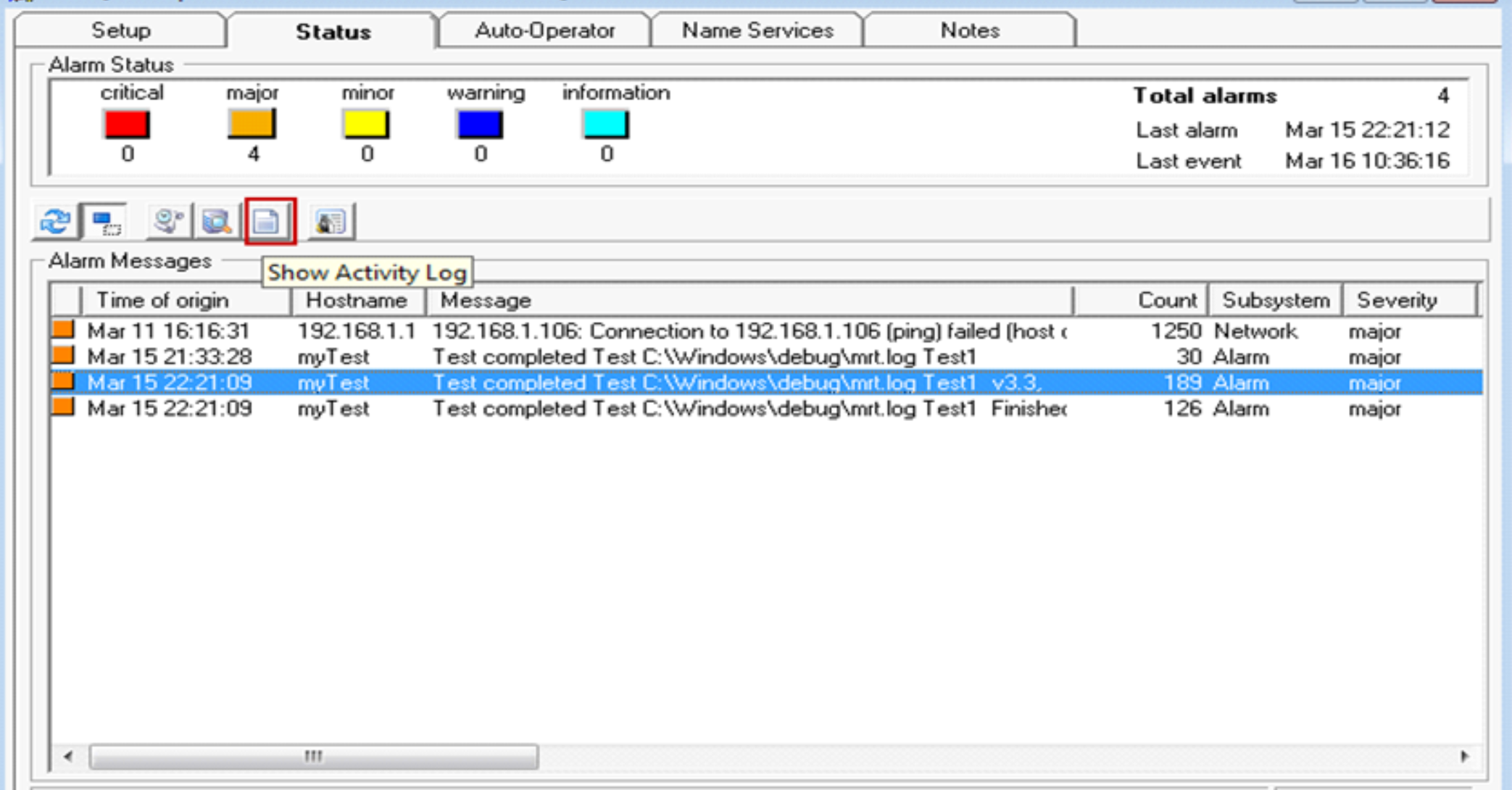

7. Check the 'Show Activity Log' icon on the nas Status Tab to view activities.
For nas and emailgtw testing purposes, you may want to set the loglevel to 15 but note that the log files will grow without limitation and will eventually fill up the file system if you leave it set to 15.

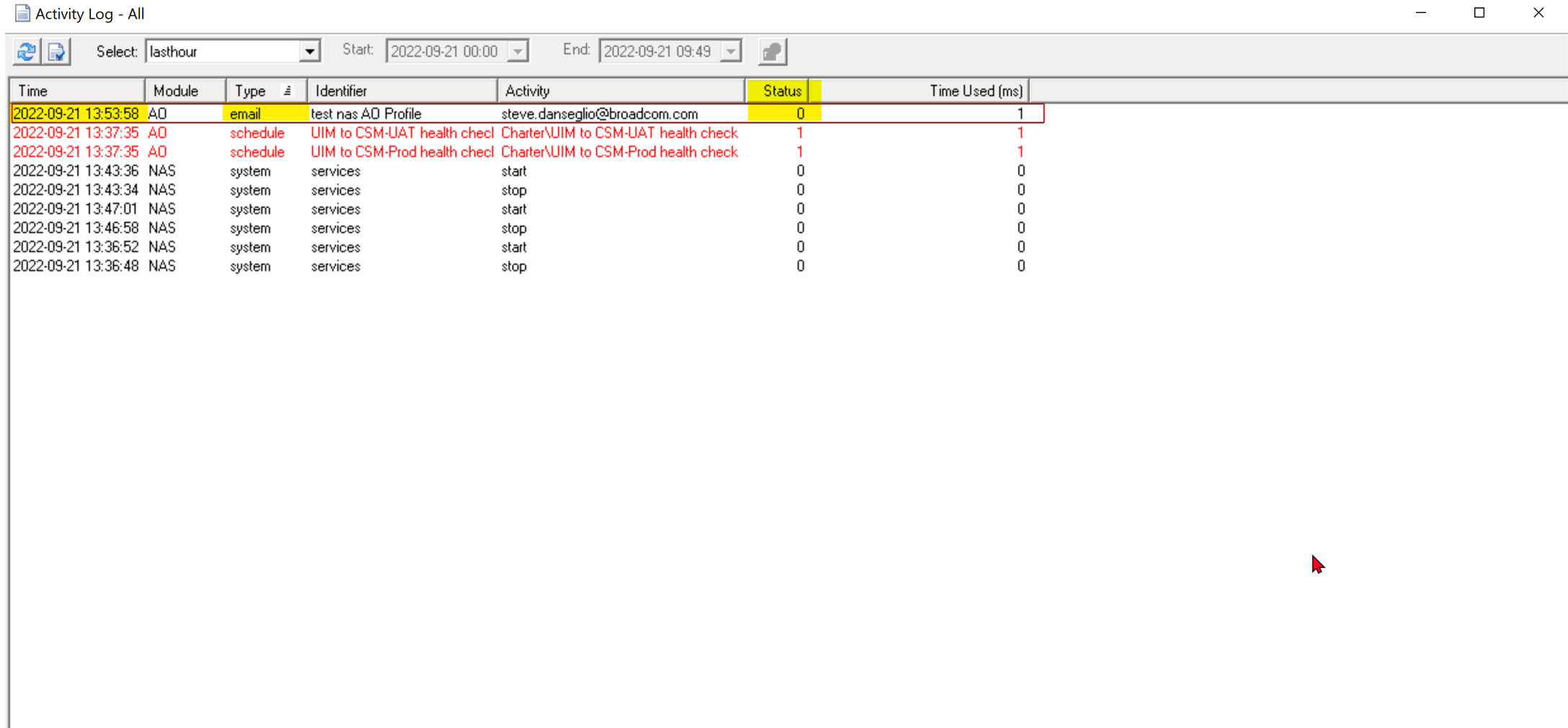

The nas Activity Log can be configured to show whether or not EMAIL actions were triggered. You can limit it to just EMAIL actions.
In the nas.log, if and when the EMAIL is sent, you will see a log entry like this which contains the alarm NIMID:
Sep 21 14:27:59:313 [12228] 3 nas: ExecEvent: Rule='test nas AO Profile' on nimid='XL34914280-56521' with ACTION:EMAIL, age:0s, status:OK
Sep 21 14:27:59:312 [12228] 2 nas: ExecEvent: IMMEDIATE rule='test nas AO Profile', nimid=XL34914280-56521, ACTION:EMAIL
Sep 21 14:27:59:312 [12228] 4 nas: CONNECT: 000001BA4855DFB0(1296) ###.###.##.##/51157->##.##.###.##/48001
Sep 21 14:27:59:312 [12228] 5 nas: SREQUEST: post ->###.###.##.##48001
Sep 21 14:27:59:313 [12228] 5 nas: RREPLY: status=OK(0) <-###.###.##.##/48001 h=37 d=28 fd=1296
Sep 21 14:27:59:313 [12228] 5 nas: SREQUEST: _close ->###.###.##.##/48001
Sep 21 14:27:59:313 [12228] 3 nas: ExecEvent: Rule='test nas AO Profile' on nimid='XL34914280-56521' with ACTION:EMAIL, age:0s, status:OK
Then in the emailgtw.log around that same time frame, you will see that the email was sent and shows-> smtp_send returns ok
Sep 21 14:27:59:641 emailgtw: RREQUEST: hubpost <-##.##.###.##/48002 h=243 d=976
Sep 21 14:27:59:641 emailgtw: pdsUserData Size=617
Sep 21 14:27:59:641 emailgtw: rowid PDS_I 2 2
Sep 21 14:27:59:641 emailgtw: event_type PDS_I 2 2
Sep 21 14:27:59:641 emailgtw: nimid PDS_PCH 17 XL34914280-56521
Sep 21 14:27:59:641 emailgtw: nimts PDS_I 11 1663768439
Sep 21 14:27:59:641 emailgtw: arrival PDS_I 11 1663793635
Sep 21 14:27:59:641 emailgtw: severity PDS_PCH 9 critical
Sep 21 14:27:59:641 emailgtw: level PDS_I 2 5
Sep 21 14:27:59:641 emailgtw: prevlevel PDS_I 2 4
Sep 21 14:27:59:641 emailgtw: subsys PDS_PCH 6 Alarm
Sep 21 14:27:59:641 emailgtw: message PDS_PCH 13 test message
Sep 21 14:27:59:641 emailgtw: source PDS_PCH 14 ###.###.##.##
Sep 21 14:27:59:641 emailgtw: hostname PDS_PCH 14 <hostname>
Sep 21 14:27:59:641 emailgtw: sid PDS_PCH 4 1.1
Sep 21 14:27:59:642 emailgtw: domain PDS_PCH 21 <domain>
Sep 21 14:27:59:642 emailgtw: hub PDS_PCH 18 <hub_hostname>
Sep 21 14:27:59:642 emailgtw: nas PDS_PCH 18 <hub_hostname
Sep 21 14:27:59:642 emailgtw: robot PDS_PCH 14 <robot_hostname>
Sep 21 14:27:59:642 emailgtw: origin PDS_PCH 18<hub_hostname
Sep 21 14:27:59:642 emailgtw: prid PDS_PCH 15 TestAlarmProbe
Sep 21 14:27:59:642 emailgtw: suppcount PDS_I 2 1
Sep 21 14:27:59:642 emailgtw: supptime PDS_I 11 1663795677
Sep 21 14:27:59:642 emailgtw: tz_offset PDS_I 2 0
Sep 21 14:27:59:642 emailgtw: visible PDS_I 2 1
Sep 21 14:27:59:642 emailgtw: i18n_dsize PDS_I 2 0
Sep 21 14:27:59:642 emailgtw: profile PDS_PCH 20 test nas AO Profile
Sep 21 14:27:59:642 emailgtw: aots PDS_I 11 1663795679
Sep 21 14:27:59:642 emailgtw: ao_argument PDS_PCH 29 <email_address>
Sep 21 14:27:59:642 emailgtw: Looks like an alarm message
Sep 21 14:27:59:642 emailgtw: Failed to expand assigned_at from PDS
Sep 21 14:27:59:642 emailgtw: (pds_strip_hostname) hostname is <robot_hostname>
Sep 21 14:27:59:642 emailgtw: (pds_strip_hostname) hostname does not look like an ip address
Sep 21 14:27:59:642 emailgtw: (pds_strip_hostname) stripped hostname is <robot_hostname>
Sep 21 14:27:59:642 emailgtw: (parse_to) created address list
Sep 21 14:27:59:642 emailgtw: (ht_find_profile) did not find '<[email protected]>
Sep 21 14:27:59:642 emailgtw: (get_profile_addr) profile <[email protected]> not found
Sep 21 14:27:59:642 emailgtw: (get_nimuser_addr) looking up <[email protected]>
Sep 21 14:27:59:642 emailgtw: (ht_find_profile) did not find '<[email protected]>
Sep 21 14:27:59:642 emailgtw: (get_nimuser_addr) did not find <[email protected]>, checking hub
Sep 21 14:27:59:643 emailgtw: SREQUEST: gethub ->##.##.###.##/48000
Sep 21 14:27:59:643 emailgtw: RREPLY: status=OK(0) <-##.##.###.##/48000 h=37 d=356
Sep 21 14:27:59:643 emailgtw: sockClose:0139FE38:##.##.###.##/51158
Sep 21 14:27:59:643 emailgtw: SREQUEST: _close ->##.##.###.##/48000
Sep 21 14:27:59:643 emailgtw: SREQUEST: nametoip ->##.##.###.##/48000
Sep 21 14:27:59:644 emailgtw: RREPLY: status=OK(0) <-##.##.###.##/48000 h=37 d=37
Sep 21 14:27:59:644 emailgtw: sockClose:013A52B0:##.##.###.##/51159
Sep 21 14:27:59:644 emailgtw: SREQUEST: _close ->##.##.###.##/48000
Sep 21 14:27:59:644 emailgtw: SREQUEST: user_info ->##.##.###.##/48002
Sep 21 14:27:59:645 emailgtw: RREPLY: status=not found(4) <-##.##.###.##/48002 h=37 d=0
Sep 21 14:27:59:645 emailgtw: sockClose:0139FE38:##.##.###.##/51160
Sep 21 14:27:59:645 emailgtw: SREQUEST: _close ->##.##.###.##/48002
Sep 21 14:27:59:645 emailgtw: (get_nimuser_addr) error from hub is: not found, retry count is 1
Sep 21 14:27:59:645 emailgtw: (get_nimuser_addr) user <[email protected]> not a NimBUS user or does not have an email address set
Sep 21 14:27:59:645 emailgtw: (read_file)Currnet working directory is = C:\Program Files (x86)\Nimsoft\probes\gateway\emailgtw
Sep 21 14:27:59:645 emailgtw: message before replacing html tags = test message
Sep 21 14:27:59:645 emailgtw: message after replacing html tags = test message
Sep 21 14:27:59:645 emailgtw: (send_it) parsing addresses: <[email protected]>
Sep 21 14:27:59:645 emailgtw: (send_it) subject: Nimsoft Message: Alarm from <robot_hostname> test nas AO Profile
Sep 21 14:27:59:645 emailgtw: (send_it) locale[0]
Sep 21 14:27:59:645 emailgtw: Sending...
Sep 21 14:27:59:648 emailgtw: [Trying IP address [###.##.##.##]
Sep 21 14:27:59:784 emailgtw: 220 <[email protected]> ESMTP Postfix
Sep 21 14:27:59:784 emailgtw: EHLO <robot_FQDN>
Sep 21 14:27:59:851 emailgtw: 250-<[email protected]>
Sep 21 14:27:59:851 emailgtw: 250-PIPELINING
Sep 21 14:27:59:851 emailgtw: 250-SIZE
Sep 21 14:27:59:851 emailgtw: 250-VRFY
Sep 21 14:27:59:851 emailgtw: 250-ETRN
Sep 21 14:27:59:851 emailgtw: 250-STARTTLS
Sep 21 14:27:59:851 emailgtw: 250-ENHANCEDSTATUSCODES
Sep 21 14:27:59:851 emailgtw: 250-8BITMIME
Sep 21 14:27:59:851 emailgtw: 250 DSN
Sep 21 14:27:59:851 emailgtw: (send_it) smtp_open succeeded
Sep 21 14:27:59:851 emailgtw: RSET
Sep 21 14:27:59:917 emailgtw: 250 2.0.0 Ok
Sep 21 14:27:59:917 emailgtw: MAIL FROM:<example_mail_gateway>
Sep 21 14:27:59:985 emailgtw: 250 2.1.0 Ok
Sep 21 14:27:59:985 emailgtw: RCPT TO:<<[email protected]>>
Sep 21 14:28:00:052 emailgtw: 250 2.1.5 Ok
Sep 21 14:28:00:052 emailgtw: DATA
Sep 21 14:28:00:119 emailgtw: 354 End data with <CR><LF>.<CR><LF>
Sep 21 14:28:00:119 emailgtw: .
Sep 21 14:28:00:295 emailgtw: 250 2.0.0 Ok: queued as 6FCCFC0000D7
Sep 21 14:28:00:295 emailgtw: (send_it) smtp_send returns ok
Sep 21 14:28:00:295 emailgtw: QUIT
Sep 21 14:28:00:361 emailgtw: 221 2.0.0 Bye
If you have the NIMID of the alarm generated, and/or some other information such as the exact message, recipient(s) etc., you should be able to track down if and when the nas triggered the nas AO Profile, and whether or not the emailgtw sent the email.
For one or more email messages that may have not been received, add your own INTERNAL email address to see if its received internally, and sent externally, but then not successfully received.
