How to capture the transactions by using the CAI agent in DevTest Portal.

book

Article ID: 6103

calendar_today

Updated On:

Products

CA Application Test Service Virtualization CA Continuous Application Insight (PathFinder)

Issue/Introduction

How to capture transactions generated from Continuous Application Insight(CAI) agent using DemoServer.

Environment

DevTest 10.x

Resolution

Here are the steps using the demo server (located in %LISA_HOME\DemoServer\lisa-demo-server) as a typical example:

  1. Start the Enterprise Dashboard, Registry, Broker, DevTest Portal and DemoServer

  2. Login to the DevTest Portal (as admin)

  3. Select Settings->Agent



4. Select agent named "JBoss_LISABank" in the Agents tab

5. Check the check box "Select All" and select the menu "Full Data" at the "Protocol Capture" pull-down at the "Adjust Capture for Protocol"

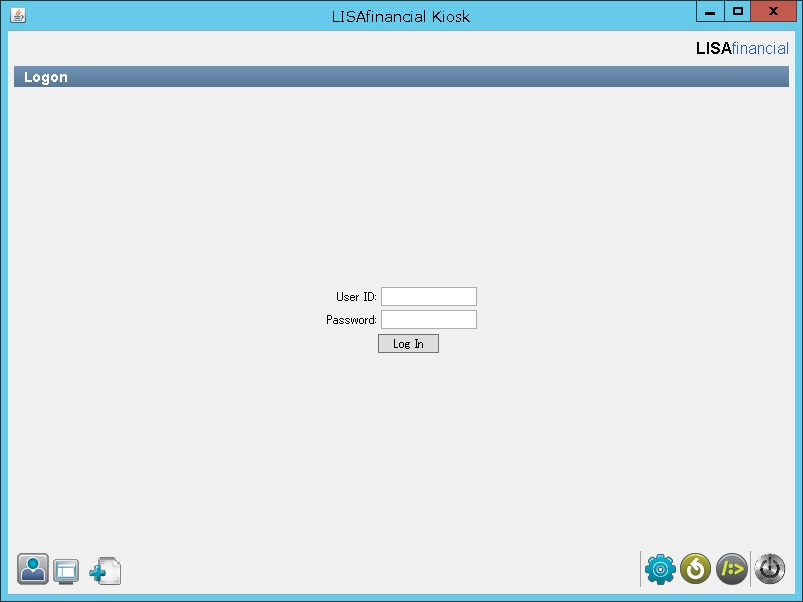

6. Invoke "Kiosk.bat"(%LISA_HOME%\examples_src\kiosk folder),

 and login as admin

7. select users/accounts maintenance icon

8. Operate to add user and to update user and logout/exit Kiosk

9. Back to Portal and Select Application Insight->Analyze Transactions

10. Click the link for one of the transactions (Example.  /itkoExampleEJB3UserControlBea.listUsers)



11. Select an EJB node at the path graph in the transaction detail dialog

12. The Frame tab for the transaction detail dialog shows information

Request /Response tabs also shows the data.
