CA Spectrum Alarm SeverityMap file not working correctly when 3 or more characters in the varbind value column (column 1)

Products

• Spectrum
• Network Observability

Issue/Introduction

CA Spectrum SeverityMap file entries with 3 or more characters in the varbind value column (column 1) are not working properly. In the following example, entries 0, 1, 2 and 99 will work fine but entry 100 will not:



0 0

1 3

2 2

99 1

100 2



Cause

Spectrum treats the entries in the SeverityMap files as regular expressions

Resolution

In order to match the varbind value to a unique entry in the SeverityMap file, we need to use word boundary characters “\b” around the varbind value in column 1 for the entries that have 3 characters or more. This has to be done with a text editor as the Event Configuration tool will not add these boundary characters. The following is an example:


\b0\b 0
\b1\b 3
\b2\b 2
\b99\b 1


\b100\b 2
\b101\b 4
\b102\b 1
\b103\b 2

Please note that you do not need to add boundary characters to the entries in column 1 that have less than 3 characters unless you map them and you find the alarming is not working.  If you map them and find the alarming is not working then add the character boundaries.

There is a known anomaly with internal code regexp parsing.

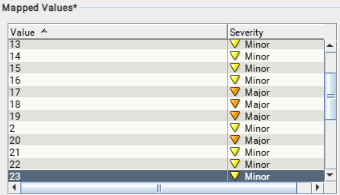

For example in this screenshot the 17, 18, and 19 are not alarming without the boundary characters:

Once they were updated with the boundary characters they alarm:

\b17\b 2
\b18\b 2
\b19\b 2

This will be addressed in a future release of Spectrum.

Additional Information

Please reference the Working with Events and Alarms section of the documentation for more information.
