PANVLT: How do you run an ISPF "Dialog test" Trace?

book

Article ID: 53869

calendar_today

Updated On:

Products

Database Analyzer (IMS Tools) Mainframe Configuration Manager for IMS for z/OS IMS TOOLS - MISC Compress Data Compression (IMS Tools) Database Analyzer for IMS for z/OS Database Copier for IMS for z/OS Database Organizer for IMS for z/OS Mainframe Extended Terminal Manager (IMS Tools) High Performance Recovery for IMS for z/OS Database Organizer (IMS Tools) Mainframe Program Restart Manager for IMS for z/OS Secondary Index Builder for IMS for z/OS Secondary Index for IMS for z/OS JARS JARS Resource Accounting JARS SMF Director JMR MIM Resource Sharing (MIM) MIM Data Sharing (MII) MIM Tape Sharing (MIA) MIM Message Sharing (MIC) Nastel AutoPilot for WebSphere MQ PanApt PanAudit Panvalet QuickFetch Raps VSE Scheduler VSE SMR SOLVE:Operations Automation SOLVE:Access Session Management SOLVE:FTS SYSVIEW Performance Management NXBRIDGE - SYSVIEW/ENDEVOR CA 2E SOLVE

Issue/Introduction

  • From ISPF main panel, select Dialog Test.

  • From there, select option 7 (Traces).

  • Then, select Function Trace, and specify ALL for "Function" and

  • YES for "Active" <PF3>.

  • Select Variable Trace, and specify ALL for "Variable" and YES for "Active" <PF3>. <PF3> again out of Traces.

  • Next, select option 1 (Functions).

  • Specify panel [email protected] and option L and hit ENTER.

  • Make sure SPFLOG file is allocated to your ISPF session.

  • Recreate the problem.

  • Once the ISPF dialog error occurs, after you have returned to ISPF, issue TSO ISRDDN and look for the SPFLOG dataset. This contains the ISPF trace information of interest. Prior to exiting ISPF, be sure to "Keep data set - New" (allocate new data set in next session). This data set is what should be provided to support for debugging.

7 Traces Specify trace definitions

<Please see attached file for image>

Figure 1

Then, select Function Trace,

<Please see attached file for image>

Figure 2

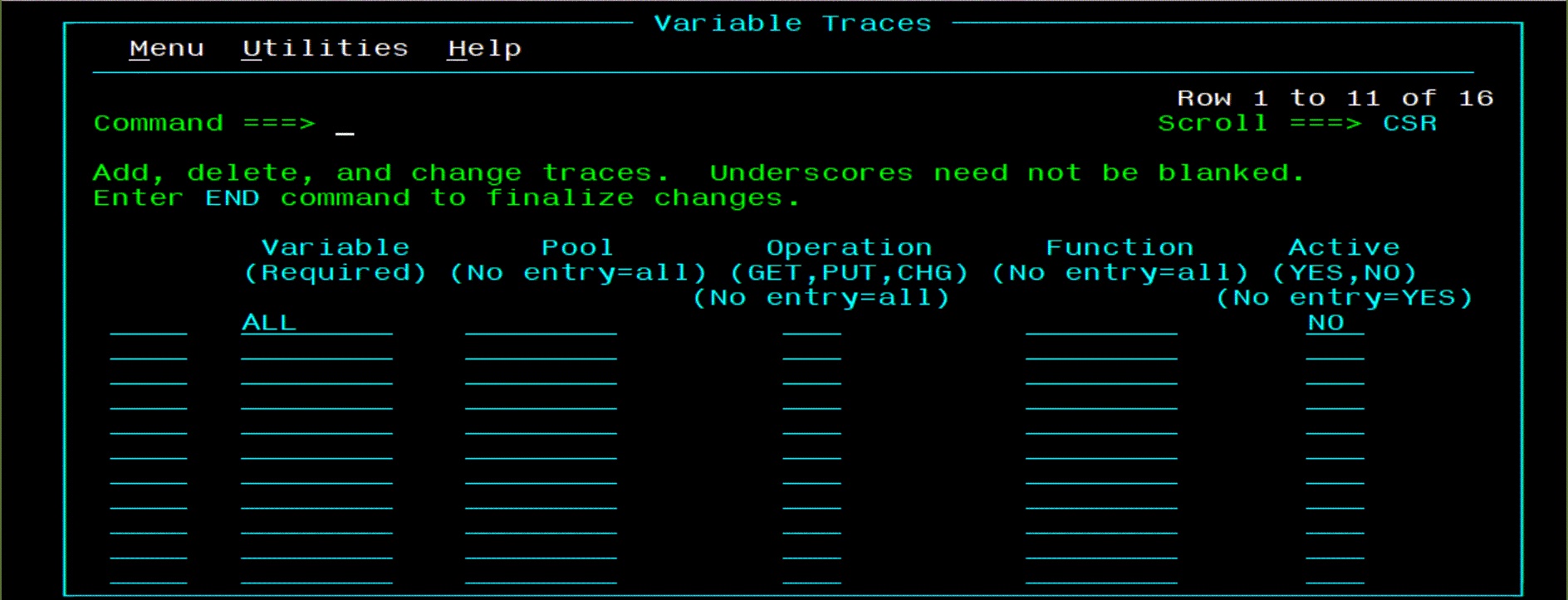

Select Variable Trace, and specify ALL for "Variable" and YES for "Active" <PF3>

(Then continue with remaining steps and shown above)

<Please see attached file for image>

Figure 3

Environment

Release:
Component: C21E
