Siteminder: Steps to create a 4x agent via XPSExplorer?

Products

• CA Single Sign On Secure Proxy Server (SiteMinder)
• CA Single Sign On SOA Security Manager (SiteMinder)
• CA Single Sign-On

Issue/Introduction

Create a 4x agent without access to the WAM UI.



Environment

Policy Server Release: Any Supported Version
Component: SMPLC

Cause

Create a 4x agent in order to log into the FSS Administrative UI and have no access to the WAM UI.

Resolution

A 4x agent can be created manually in the XPS via the XPSExplorer utility as follows:

1. Execute XPSExplorer.

   XPSExplorer is an interactive command-line utility that allows an administrator or application developer to view the data in a policy store, and it is usually located under <SiteMinderHomeDir>\bin:

   XPSExplorer

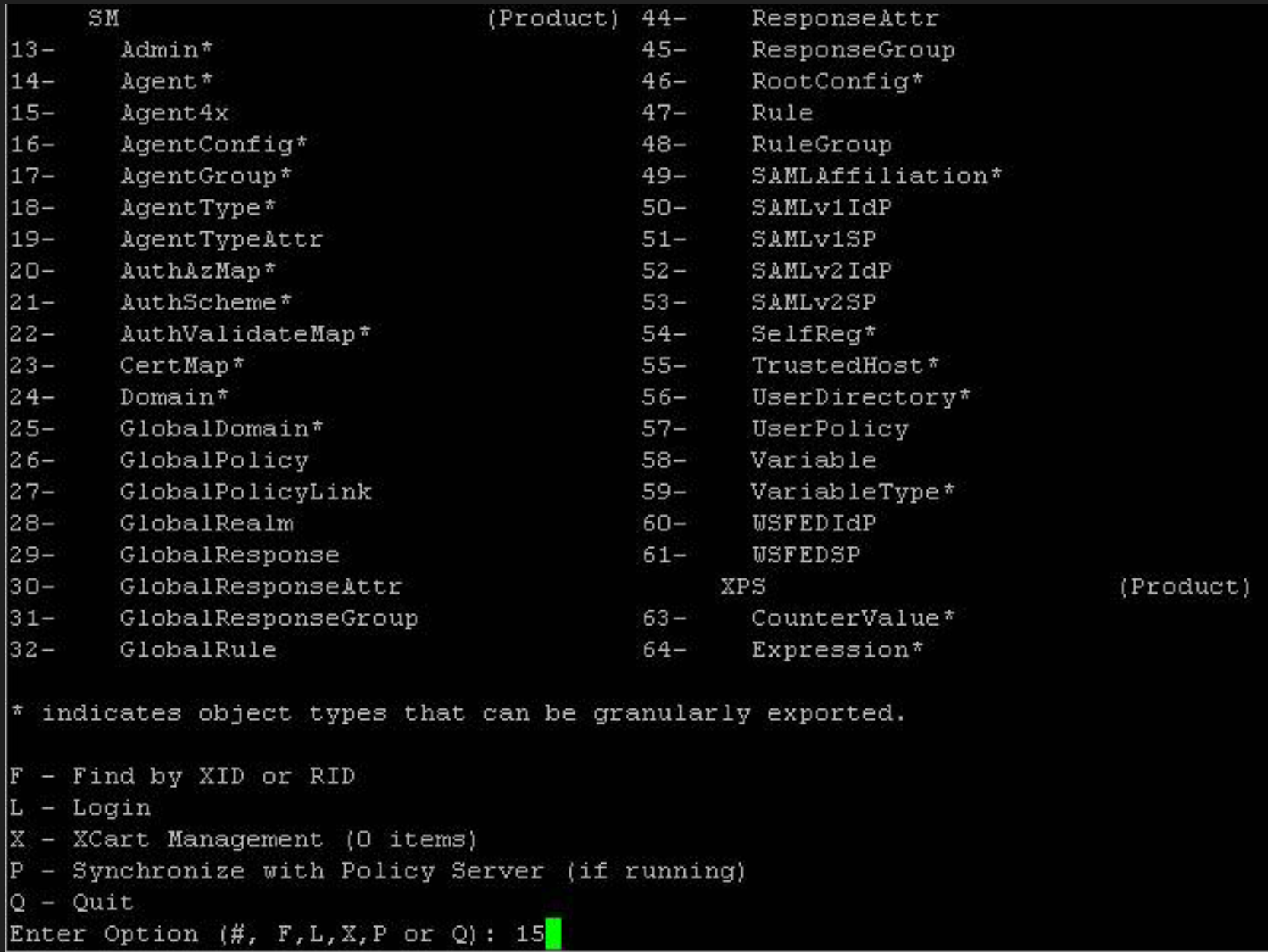

2. Enter option #15 - Agent4x.







3. Enter option N - Create a New instance of this class.




4. Enter option #1: AgentTypeLink.






5. Type ? to view options.








6. Enter option #15 - SiteMinder Web Agent.

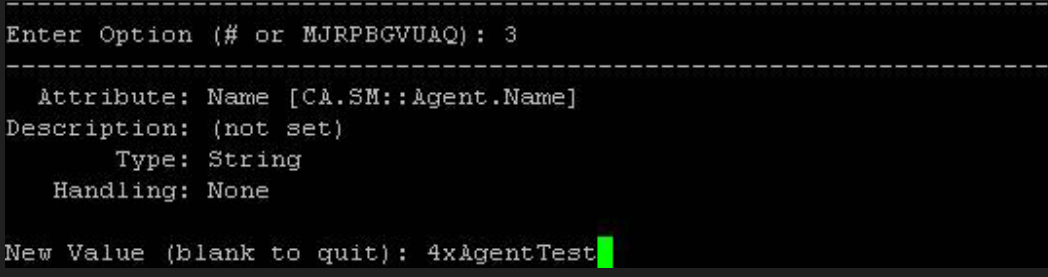

7. Enter option #3 - Name, and specify a name.








8. Enter option #5 - IpAddr, and specify the ip address of the 4.x Agent.

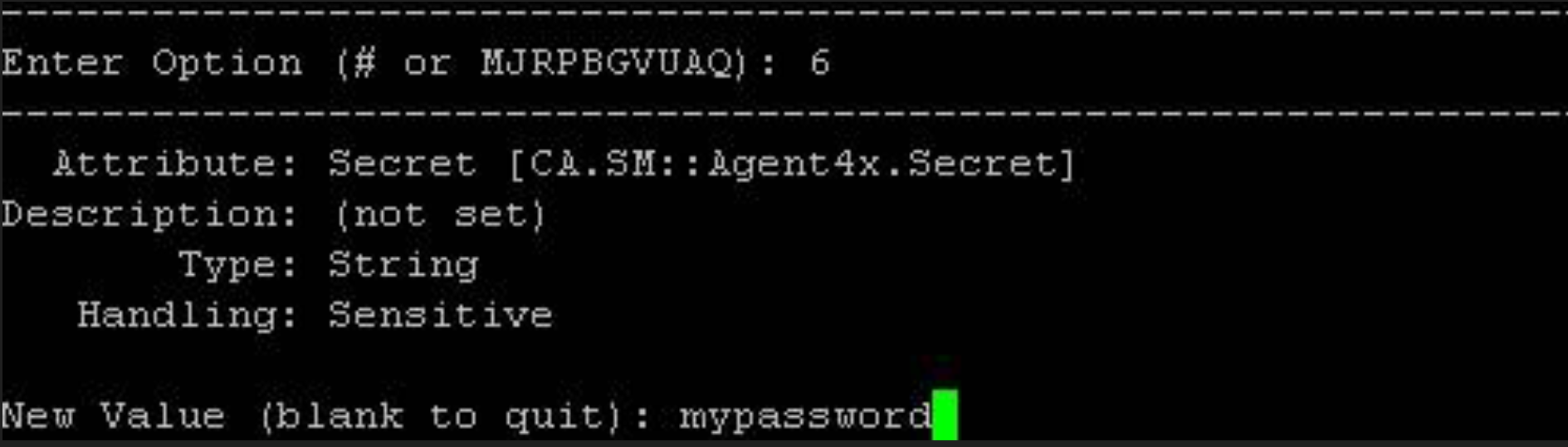

9. Enter option #6 - Secret, and specify the Shared Secret.








10. Enter option V (Validate record).

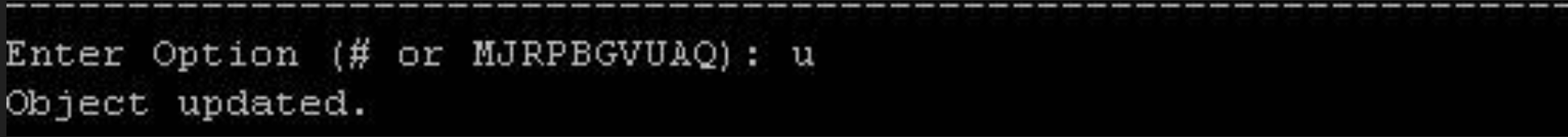

11. Enter option U (Update record).








12. Enter Q to quit, continue until exit.

The 4x agent has been created and it is ready to use with the FSS Administrative UI.
