How to set up CGI and Metabase Compatibility features in IIS 7.0?

book

Article ID: 52327

calendar_today

Updated On:

Products

CA IT Asset Manager CA Software Asset Manager (CA SAM) ASSET PORTFOLIO MGMT- SERVER SUPPORT AUTOMATION- SERVER CA Service Desk Manager - Unified Self Service KNOWLEDGE TOOLS CA Service Management - Asset Portfolio Management CA Service Management - Service Desk Manager

Issue/Introduction

Description:

The Following document explains the steps to configure CGI and Metabase Compatibility features in IIS 7.0.



Environment

Release: All installations running on Windows 2008 / IIS 7.0
Component: ARGIS, CA Service Management, CA Service Desk

Resolution

Solution:


The following document explains how to setup CGI and Metabase compatibility in IIS 7.0.


The following configuration need to be setup before installing r12.1 on a windows 2008.


Login to the Server as an Administrator.


Once logged in Click on Start >> Administrative Tools >> Server Manager (see Figure 1):


Figure 1:



Once logged in the Server Manager >> Click on Roles on the left pane.


This will give the ability to add roles in the screen on the right pane.


Click on "add roles" (see Figure 2):


Figure 2:




This will bring you to the following Server Roles Screen. Check the box for Web Server (IIS) and click on next (see Figure 3):


Figure 3:








This will bring you to the "Select Role Services". Under Application Development select "CGI" (see Figure 4):


Figure 4:





Scroll down on the same page to find Management Tools. Under Management tools look for IIS 6 Management Compatibility. Check the box for "IIS 6 Metabase Compatibility" (see Figure 5):


Figure 5:

Click on next to get the Confirmation screen (see Figure 6):


Figure 6:



Once the installation is done the following screen confirms the same (see Figure 7):


Figure 7:






Once the CGI and IIS 6.0 Metabase compatibility features are installed login to IIS Manager by typing in "inetmgr" in the run box (see Figure 8):


Figure 8:




Navigate to the Default Web Site under Sites. Double click on the "handler mappings" in the right pane (see Figure 9):


Figure 9:

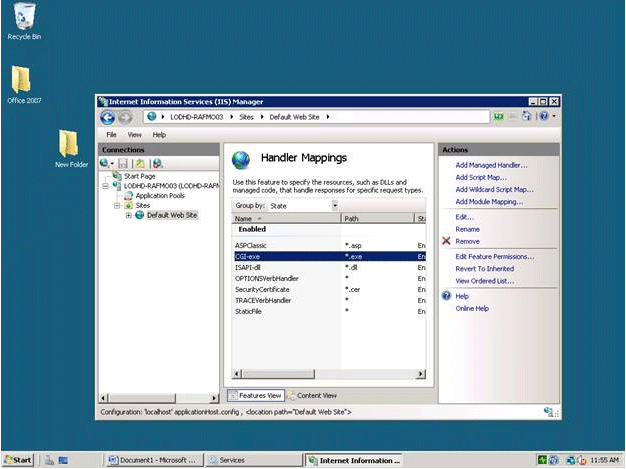

This will bring the following screen. Ensure that the CGI-exe with the path *.exe is enabled (see Figure 10):


Figure 10:



If the CGI-exe is not enabled,under actions click on Edit Feature Permissions to enable.Once done Recyle IIS Services.


Once the Application is installed make sure that CGI-exe is enabled for CAisd as follows (see Figure 11):


Figure 11:




If by any chance, it does not exist under CAisd create the same with the following steps:


For CAisd select 'Handler Mapping' feature and click on 'Add Module Mapping' from actions pane.


Enter the following details and save:


> Request path: *.exe
>> Module: CGIModule
>>> Executable: leave it blank
>>>> Name: CGI_EXE
