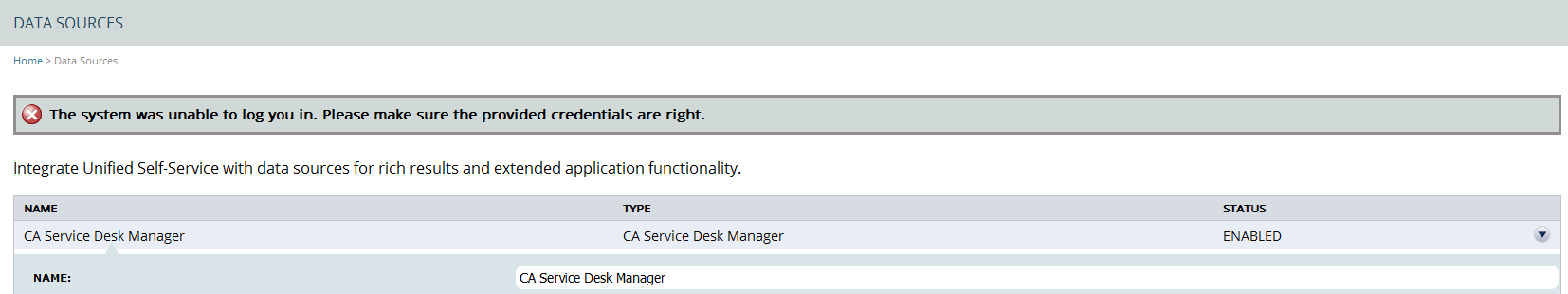

The following error appears when testing the connection from Unified Self-Service to Service Desk Manager datasource:

The system was unable to log you in. Please make sure the provided credentials are right.

<Please see attached file for image>

In addition to the previous error, the following error messages is logged in wrapper-tomcat.log:

javax.xml.ws.soap.SOAPFaultException: Error: invalid login policy encryption
at com.sun.xml.internal.ws.fault.SOAP11Fault.getProtocolException(SOAP11Fault.java:178)
at com.sun.xml.internal.ws.fault.SOAPFaultBuilder.createException(SOAPFaultBuilder.java:125)
at com.sun.xml.internal.ws.client.sei.SyncMethodHandler.invoke(SyncMethodHandler.java:108)
at com.sun.xml.internal.ws.client.sei.SyncMethodHandler.invoke(SyncMethodHandler.java:78)
at com.sun.xml.internal.ws.client.sei.SEIStub.invoke(SEIStub.java:135)

The certificate is old and expired. In Service Desk Manager server the pdm_pki has been run to create a new PKI certificate, causing the previous certificate to expire.

Unified Self-Service (USS) 14.1 and later Service Desk Manager (SDM) 14.1 and later

Follow the steps below to load the new PKI certificate into Unified Self-Service for Service Desk Manager:

1) Log into an SDM Server where you have the new pki file (CASM_POLICY.p12 file)

2) Open a browser and log into one USS node as casmadmin or similar > Settings > Datasources > Expand CA Service Desk Manager > click on "Upload Certificate" > Search for the CASM_POLICY.p12 file

3) Click on test connection > ensure test connection is successful and click Save.

4) If there are multiple USS nodes, repeat the step 1 to 3 for the other USS nodes.

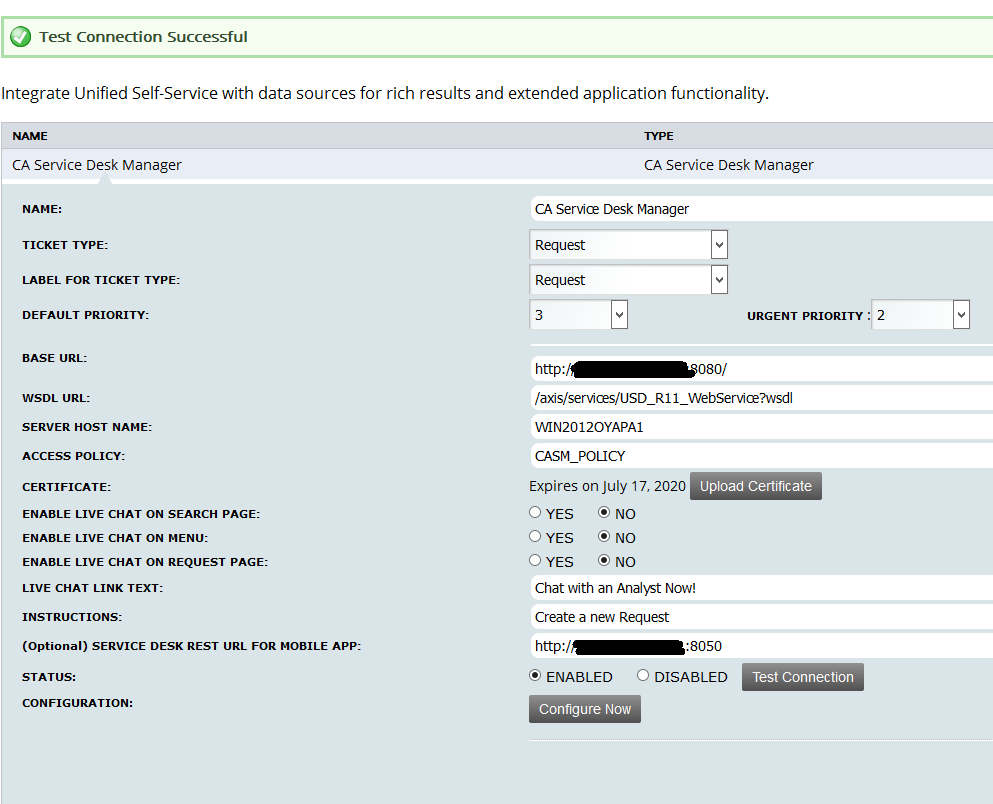

Example of a successful connection:

<Please see attached file for image>

How to configure the integration between Service Catalog and CA SDM: Doc KB000005697

How to configure Service Desk and Service Catalog integration so that to open service desk ticket link within a catalog request correctly: Doc kb000009839

USS auto integration with SDM failed: Doc kb000046066




ADDITIONAL INFO:
If a new SDM policy file CASM_POLICY.p12 was created on the SDM server, follow below additional steps if the original steps above did not resolve the issue:

1) Restart SDM
2) Copy the correct CASM_POLICY.p12 file to USS node.
3) Stop USS,
4) Search for *.p12 in C:\Program Files\CA\Self Service\OSOP
5) There should be a CASM_POLICY.p12 file here: C:\Program Files\CA\Self Service\OSOP\shared\aquila_temp\10196
6) Move it over to a backup folder and delete the file
7) Restart USS
8) From a browser machine (copy the correct CASM_POLICY.p12 file to the browser machine first), try to configure the SDM data source again now with the correct CASM_POLICY file.
