After enabling JasperReports 6.3 integration - spectrum reports and folders are missing

Products

• CA Spectrum
• DX NetOps

Issue/Introduction

The Jasper Integration was successful, but the spectrum folder is missing under the JasperReports 6.3 Repository.

Environment

CA Spectrum 10.x

JasperReports 6.3

Cause

In the C:\Program Files\CA\SC\CA Business Intelligence\apache-tomcat\logs\SpectrumProxy.log file, the following error was found:

2016-12-23 12:57:35,752 [http-apr-8080-exec-9] ERROR com.aprisma.spectrum.app.reporting.spectrumproxy.servlets.ActionController {} 15026166 - login failed for user superuser



As the Jasper Admin Password seemed to be already typed, it was not re-typed when enabled the Jasper Integration.

Resolution

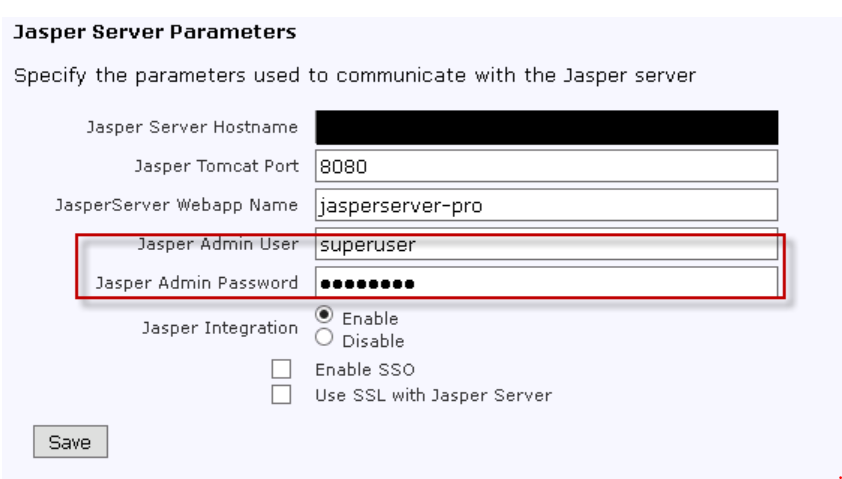

Delete the password located in the password field.

Type in the proper superuser password.  Default password is "superuser".

src="/servlet/servlet.FileDownload?file=0150c000004AKH3AAO" alt="SNAG_Program-0051.png" width="570" height="317">



The integration will now be both successful and upload the Spectrum specific data.
