At times, an Oracle DBMS may be slow in returning results back to the Service Desk Manager application. This impacts the performance of the Service Desk application by making searches and updates slow. This document describes methods to diagnose this problem.
Service Management 17.x
CA Service Desk Manager and Oracle DBMS
At times, an Oracle DBMS may be slow in returning results back to the Service Desk Manager application. This would impact the performance of the Service Desk application by making searches and updates slow.
Service Desk will log to its STDLOG files, located in NX_ROOT\LOG, any statement (SELECT, INSERT, UPDATE or DELETE) that takes longer than 1,000 milliseconds to complete.
The STDLOG file will show messages like the following:
<hostname> sqlagt:select5 3284 MILESTONE orclclass.c 1345 The following statement took 5346 milliseconds: SELECT
call_req.open_date, call_req.id, min(attached_sla.time_to_violation) AS "mintime", min(usp_target_time.target_time) AS "mintgt", call_req.ref_num
FROM
(call_req LEFT JOIN attached_sla ON call_req.persid = attached_sla.mapped_cr LEFT JOIN usp_target_time ON call_req.persid =
usp_target_time.mapped_cr)
WHERE ( call_req.assignee = HEXTORAW('######') AND call_req.active_flag = 1 AND call_req.type = N'I' ) AND ( call_req.type
= N'I' ) GROUP BY call_req.open_date, call_req.id, call_req.ref_num ORDER BY call_req.open_date DESC
In the above, "######" represents a given UUID value for the associated record, in this case, the call_req.assignee.
Before troubleshooting this performance scenario, be sure to understand:
@NX_ORACLE_CASE_INSENSITIVE=1
1 = Service Desk is case insensitive
0 = Service Desk is case sensitive
This setting only needs to be performed on the Service Desk primary server. A recycle of the Service Desk is required if any change is made to this setting. If set to "1" (case insensitive), some SELECTS may function differently when it comes to how indexes are used in Oracle.
Note: Much of what is covered below, with the exception of the section on the Virtual Database and connections, is the realm of an experienced Oracle Database Administrator and not CA Support.
Slow Running SELECT statements
Searches, internal processing and Scoreboard Query nodes in Service Desk translate to SELECT statements sent to the Oracle MDB database. If Oracle is not returning results in sub-second time frames, the performance and response time of the Service Desk application will be impacted.
Service Desk will log to its STDLOG files any database statement that takes longer than one (1) second to return results. That may not be adequate to narrow down performance problems. To get a list of the SQL statement that took longer than one (1) second to return from Oracle, issue the following command from the Service Desk primary server:
pdm_logstat -f orclclass.c MILESTONE
Once the test is over, issue the following command to turn it off the tracing:
pdm_logstat -f orclclass.c
Note: These commands impact how quickly the STDLOG log files roll over, so the commands should only be enabled for short periods of time.
For Unix Environments :
@NX_ORACLE_CASE_INSENSITIVE=1
1 = Service Desk is case insensitive
0 = Service Desk is case sensitive

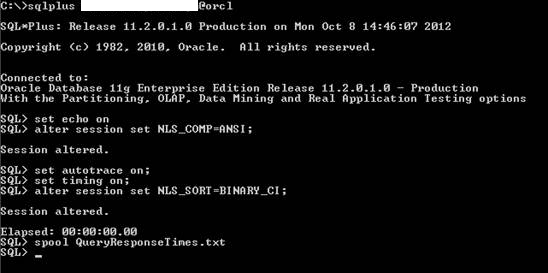

sqlplus user/password@ServiceName
Figure 1
set echo on
alter session set NLS_COMP=ANSI;
set autotrace on;
set timing on;
If you have Service Desk configured for case insensitivity (@NX_ORACLE_CASE_INSENSITIVE=1 within the Service Desk NX.env file), set:
alter session set NLS_SORT=BINARY_CI;
Create an output file so that the results can be provided to your DBA or CA Support:
spool QueryResponseTimes.txt
Figure 2
Figure 3
Review the output with the help of your DBA or provide it to CA Support as directed. Please note the output file will be empty until you turn off spool or exit SQLPLUS
Sample output:
OPEN_DATE ID mintime mintgt REF_NUM
---------- ---------- ---------- ---------- ------------------------------
1349722446 400004 33
Elapsed: 00:00:00.01
Execution Plan
----------------------------------------------------------
Plan hash value: 2162407762
--------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 148 |
6 (34)| 00:00:01 |
| 1 | SORT GROUP BY | | 1 | 148 |
6 (34)| 00:00:01 |
|* 2 | HASH JOIN OUTER | | 1 | 148 |
5 (20)| 00:00:01 |
| 3 | NESTED LOOPS OUTER | | 1 | 103 |
2 (0)| 00:00:01 |
| 4 | TABLE ACCESS BY INDEX ROWID| CALL_REQ | 1 | 58 |
2 (0)| 00:00:01 |
|* 5 | INDEX RANGE SCAN | CALL_REQ_X4 | 1 | |
1 (0)| 00:00:01 |
| 6 | TABLE ACCESS BY INDEX ROWID| ATTACHED_SLA | 1 | 45 |
0 (0)| 00:00:01 |
|* 7 | INDEX RANGE SCAN | ATTACHED_SLA_X2_CI | 1 | |
0 (0)| 00:00:01 |
| 8 | TABLE ACCESS FULL | USP_TARGET_TIME | 1 | 45 |
2 (0)| 00:00:01 |
--------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access(NLSSORT("CALL_REQ"."PERSID",'nls_sort=''BINARY_CI''')=
NLSSORT("USP_TARGET_TIME"."MAPPED_CR"(+),'nls_sort=''BINARY_CI'''))
5 - access("CALL_REQ"."ASSIGNEE"=HEXTORAW('######')
AND + "CALL_REQ"."ACTIVE_FLAG"=1)
filter(NLSSORT("CALL_REQ"."TYPE",'nls_sort=''BINARY_CI''')=HEXTORAW('006900') )
7 - access(NLSSORT("CALL_REQ"."PERSID",'nls_sort=''BINARY_CI''')=
NLSSORT("MAPPED_CR"(+),'nls_sort=''BINARY_CI'''))
Statistics
----------------------------------------------------------
0 recursive calls
0 db block gets
2 consistent gets
0 physical reads
0 redo size
677 bytes sent via SQL*Net to client
415 bytes received via SQL*Net from client
2 SQL*Net roundtrips to/from client
1 sorts (memory)
0 sorts (disk)
1 rows processed
Your Database Administrator or Oracle Support should be able to assist with interpreting the output. However, from the output, you might be able to identify a high cost involved in a part of the WHERE clause. It may become evident that an index or case insensitive index is needed.
If an index is used, but is performing poorly, your DBA can determine how to address the health of that table index. Consult your Oracle documentation for the steps to perform related to your environment. Oracle provides a number of tools for this purpose.
Slow Running INSERTs and UPDATEs
Oracle INSERTs and UPDATEs statements can slow down for many different reasons as a table grows in size.
Here are some of the common reasons for slow running INSERTs and UPDATEs that you need to discuss with your DBA:
Try to re-analyze the table and ALL indices on the table:
EXEC DBMS_STATS.gather_table_stats('MDBADMIN', 'CALL_REQ');
EXEC DBMS_STATS.gather_index_stats('MDBADMIN', 'CALL_REQ_PK');
2. NEXT extent size
3. Consult with your Oracle DBA about other possible reasons.
Service Desk Virtual Database and Database Agents
Service Desk Manager uses a server side "Virtual Database" server to fetch and update data from the MDB database. To check the health of the Virtual Database, use the Service Desk Diagnostic tool "pdm_vdbinfo".
pdm_vdbinfo Report Output
The pdm_vdbinfo report output is divided into several sections. The header section contains most of the information necessary for making preliminary judgments about the state of the bpvirtdb_srvr process. This information includes the following details:
Note: If query requests are being queued, determine the cause before making any adjustments. Otherwise, if you increase the number of database agents without knowing the actual cause of the increased queuing, the result may be degraded performance rather than improved performance. For example, if the database is already overworked as the result of bad index statistics and cannot handle more requests efficiently, then increasing the number of requests sent to the database could result in a slower response, and ultimately more queuing.
It may be useful to run pdm_vdbinfo under different load conditions to determine the effect of load level on queuing. Compare the results to the STDLOGs to determine if long-running queries are being executed at the time. Remember to look both forward and backward in the log because long-running queries are logged only when the query completes (which may occur after you detect queuing). If throughput was acceptable and the backlog was based on load, try increasing the number of database agents.
The pdm_vdbinfo report also includes a Delayed ID Queue section, which identifies the "select short" cache usage. A select short query is one that has the WHERE clause of "WHERE id=?" and only returns one row. Consider the following example:
This listing displays any table that is accessed as part of a select short query. For each table entry, the following information appears:
I/O Requests
Tables with many I/O requests use the ID 00 database agent. ID 00 is the generic update agent. This agent updates all tables that do not have specific agents associated with them. If there are many updates to a specific table on agent 00, the agent is busy processing those updates and is not available to process updates for other tables. Moving this table to a separate agent alleviates the overhead caused by updates to this single table. The primary function of this report is to identify the amount of work currently en route, or queued to the database agents. To make the most of this information, compare it to the STDLOG output and in the context of the end-user perceived performance.
