How to create dashboard that shows reports per several child projects

Products

• Rally On-Premise
• Rally SaaS

Issue/Introduction

Find out how to create a Rally dashboard that will display multiple reports that show results for different projects within the same hierarchy.

How to create dashboard that shows reports per several child projects?

Resolution

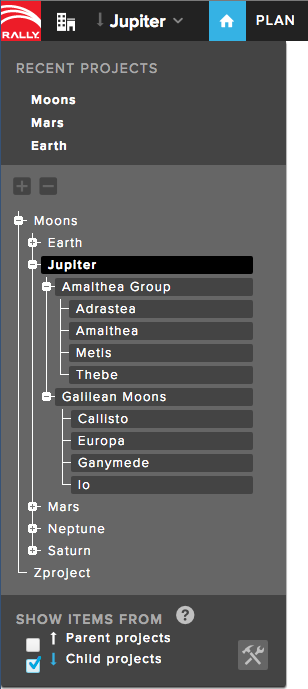

Here is a screenshot that shows the project tree used for the example below:

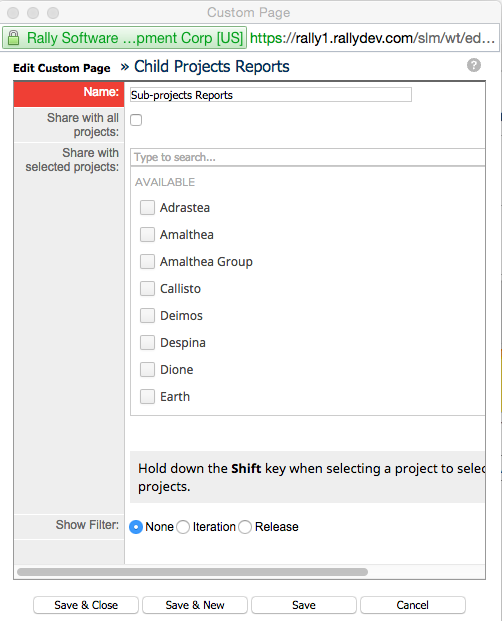

We start with creating a new custom page:



Next we add an app from the App Catalog, e.g. Project Cumulative Flow Chart:

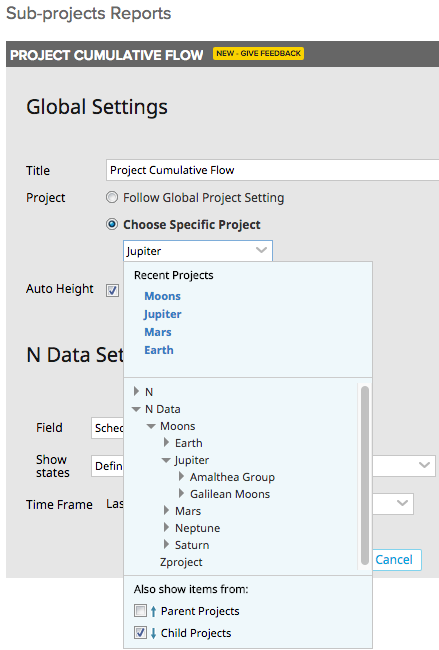

Go to the Setting under the app's gear menu to change the scope from the default global scope to a specific project. In this example our top project is Jupiter, and one of its child projects is selected:

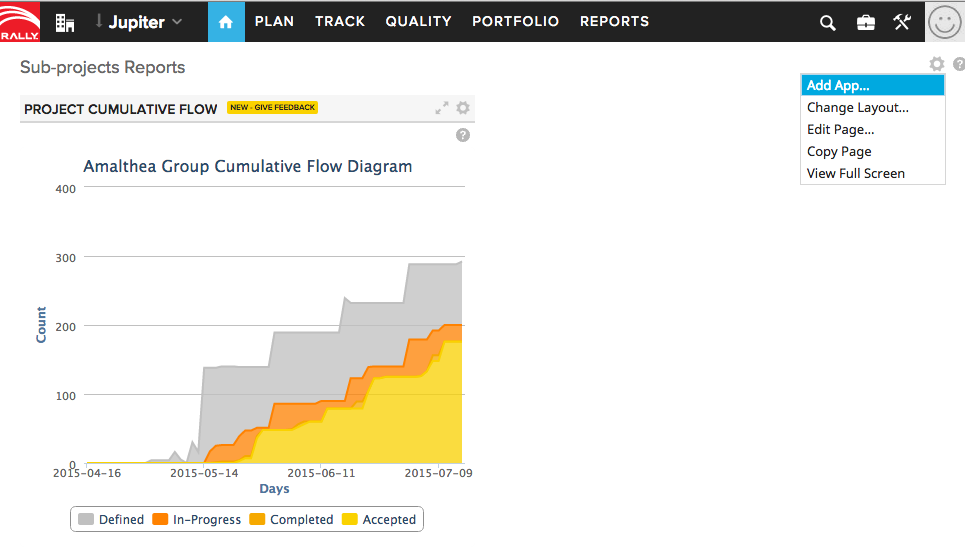

The app loads. Next we add the same Project Cumulative Flow Chart and set it's scope to a different child of the same parent project. Click on the gear icon for the entire page to access "Add App" menu item:

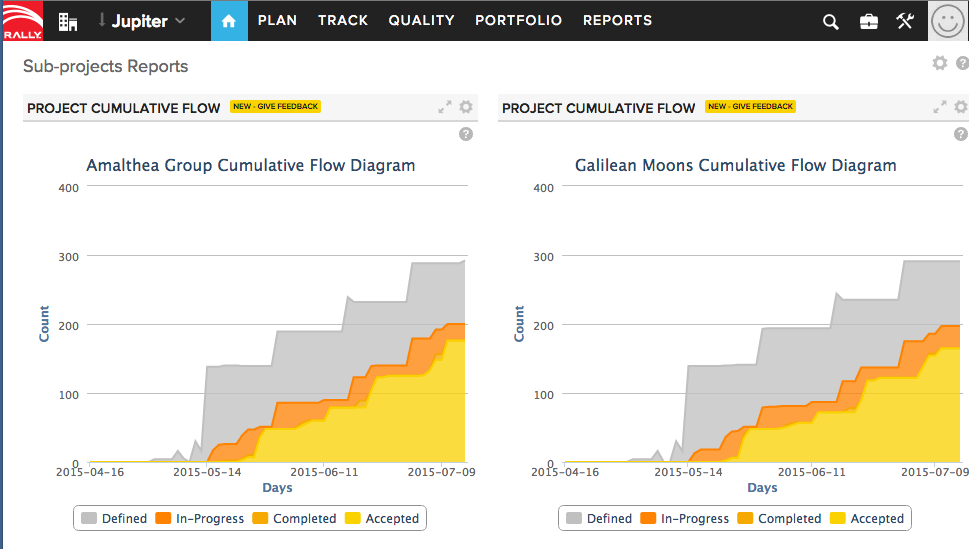

Now the custom page displays two reports side by side:

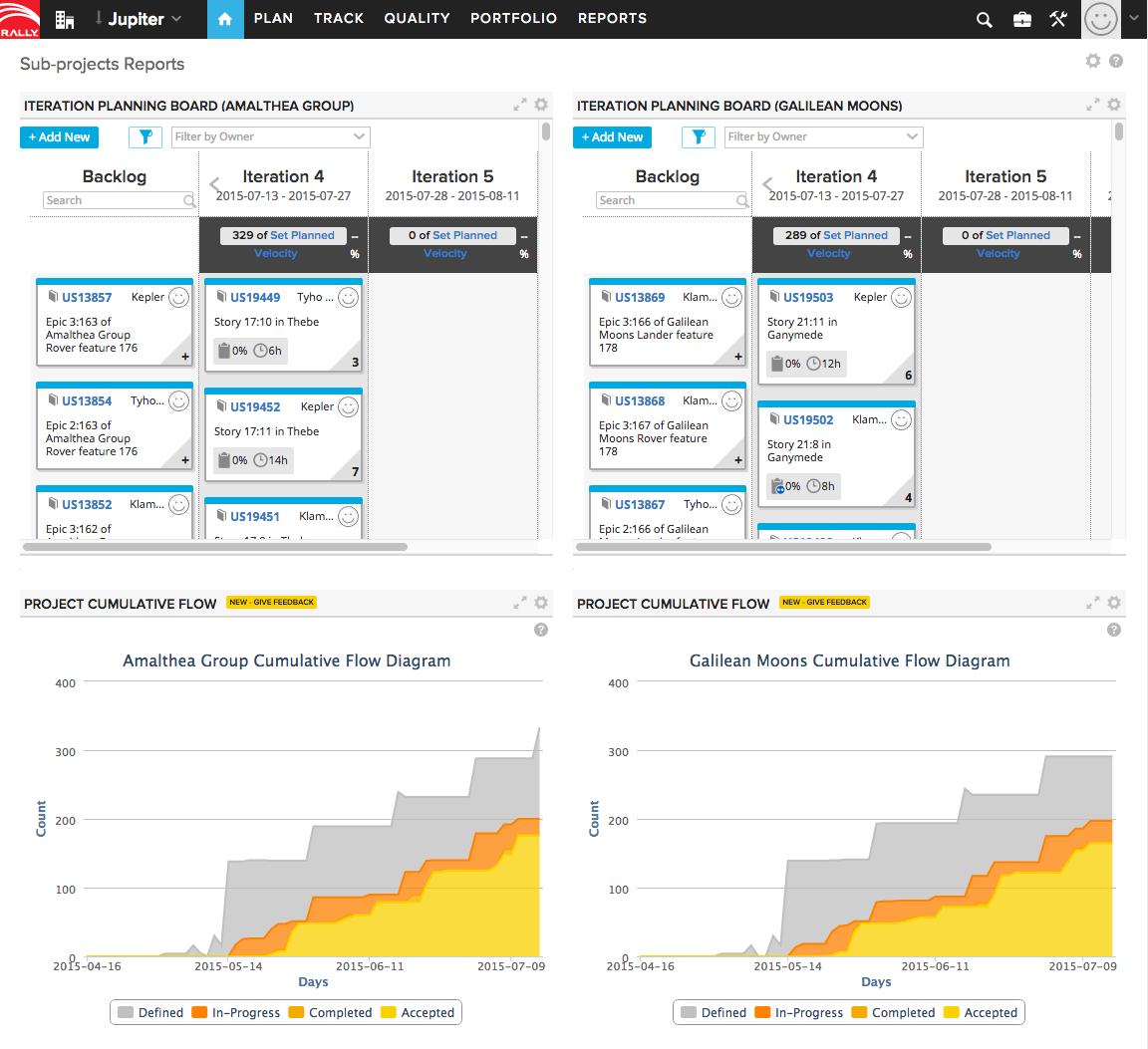

The same steps are repeated to add Iteration Planning Board for the same to child projects:
