Provisioning Diagram fails to load Machine Allocation stages in VCF Automation 9.1

Products

• VCF Automation

Issue/Introduction

Symptoms

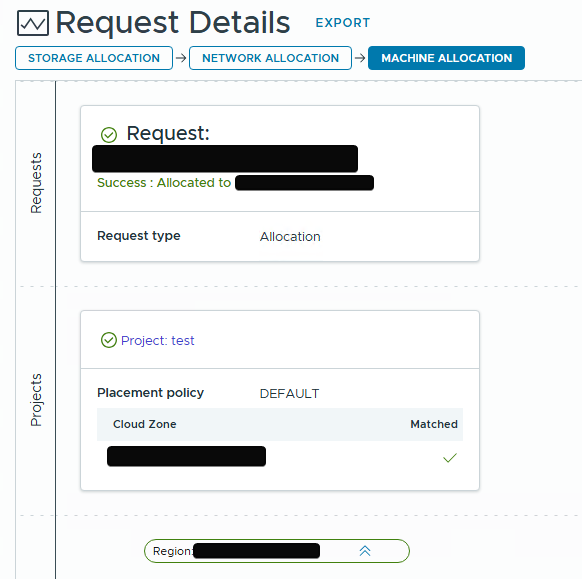

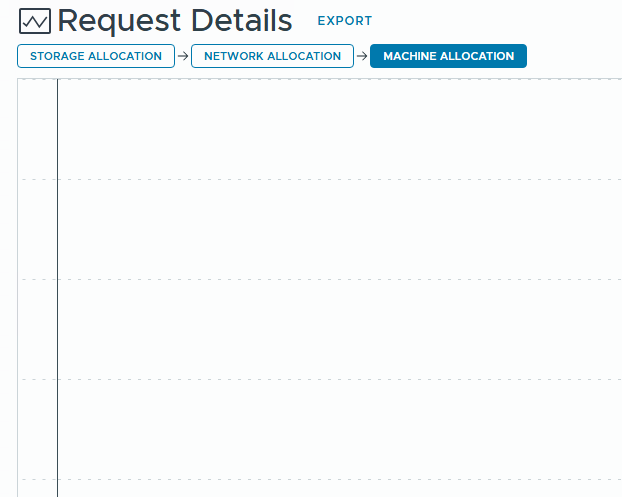

• The Provisioning Diagram exhibits rendering inconsistencies during deployments or Cloud Template test simulations, specifically failing to load machine-related stages when navigating from the storage or network views.


  Expected :



• The issue is consistently reproduced when navigating from the storage or network stage to the machine stage within the Provisioning Diagram view.

Environment

VCF Automation 9.1

Resolution

Broadcom Engineering is aware of this issue and an investigation is in progress.

There is no workaround currently available. To stay updated on the status of this investigation, please subscribe to this article.
