vCenter has frequent failed Sync volume tasks when using Cloud Native Storage (CNS)

Products

• VMware vSphere Kubernetes Service
• VMware vCenter Server

Issue/Introduction

• Confirmed that the issue is not a match of similar KB CNS tasks in vCenter Server frequently fail with the error, A specified parameter is not correct.
• The datastore shared across vCenter Server instances.

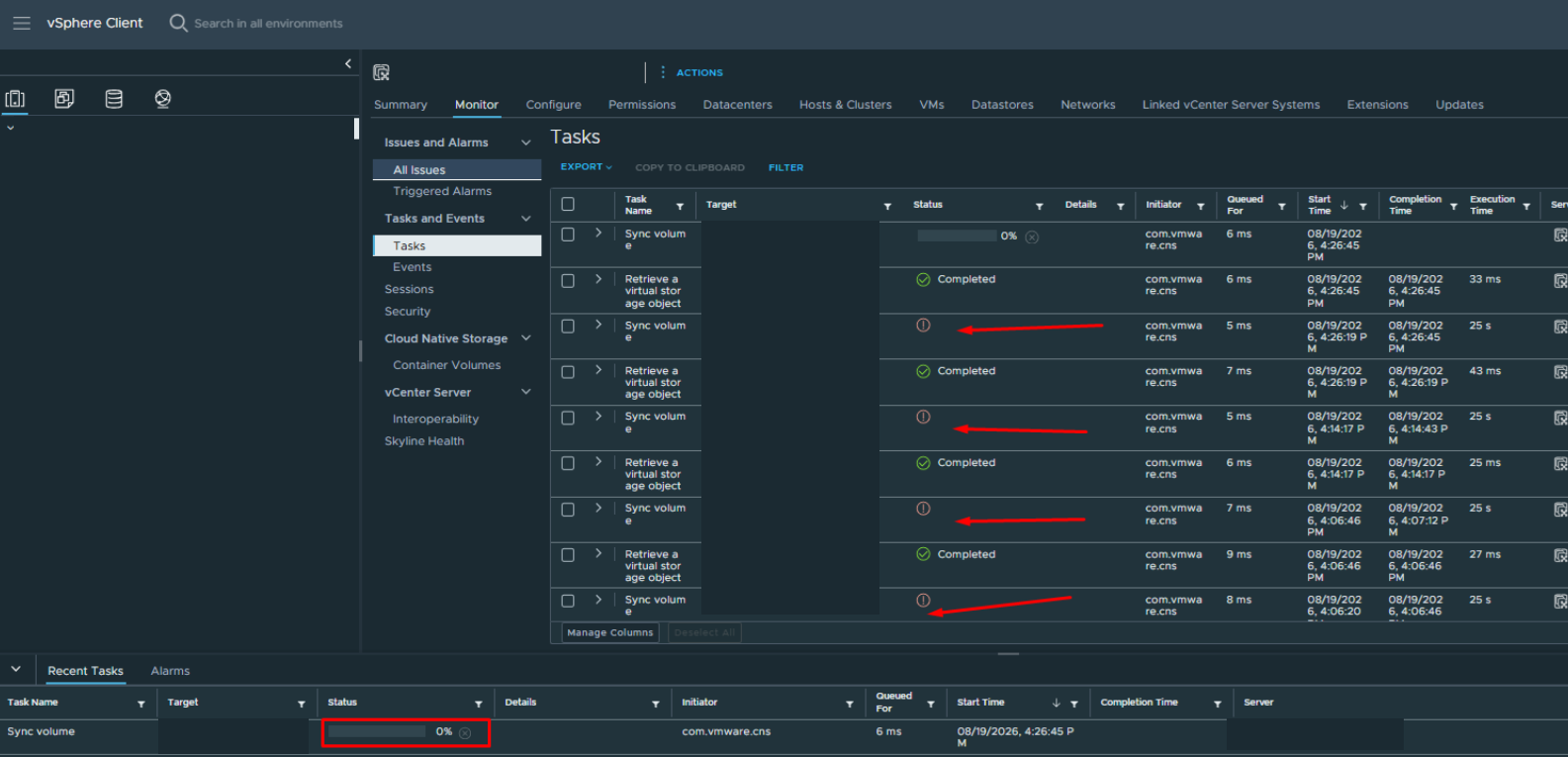

• In the journalctl log, the following log repeatedly occurs.

  [vim.event.TaskEvent] [info] [com.vmware.cns] [] [***] [Task: Retrieve a virtual storage object]
[vim.event.TaskEvent] [info] [com.vmware.cns] [] [***] [Task: Sync volume]


• In the vpxd log, failed lock vmdk file log repeatedly occurs.
  yyyy-mm-ddThh:mm:ss.nnn error vpxd ERROR VStorageObjectManager – vim.vslm.vcenter.VStorageObjectManager.retrieveVStorageObjectMetadata: :vmodl.fault.SystemError
--> Result:
--> (vmodl.fault.SystemError) {
--> faultCause = (vmodl.MethodFault) null,
--> faultMessage = <unset>,
-> reason = "Failed to lock the file: api = D





Cause

vSphere Container Storage Plug-in does not support datastores shared across vCenter instances.

See vSphere Functionality Supported by vSphere Container Storage Plug-in

Resolution

Detach LUNs so that there are no shared datastores across multiple vCenters and carefully review the Pre-unmount checklist in the following KB.

Detach a LUN device from ESXi hosts
