What are the requirements for a device to be placed into the Spectrum Configuration Manager "CISCO IOS - SSH Capable" Device Family?
search cancel

What are the requirements for a device to be placed into the Spectrum Configuration Manager "CISCO IOS - SSH Capable" Device Family?

book

Article ID: 45330

calendar_today

Updated On:

Products

CA Spectrum DX NetOps

Issue/Introduction

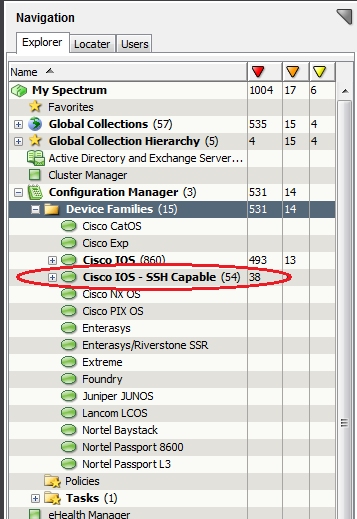

What are the requirements for a device to be placed into the Spectrum Configuration Manager "CISCO IOS - SSH Capable" Device Family seen in the Explorer tab of the Navigation panel?



Environment

Release: Any
Component:

Resolution

To place a device into the Cisco IOS - SSH Capable family, the following conditions must be met:



  • The device descriptor must indicate a firmware version of 12.2 (18) or greater.
  • The feature set must contain letters "K9" indicating the device has the necessary encryption functionality that is needed for SCP.
  • SSH access for the device must be unblocked at the time of discovery.

Additional Information

See: Network Configuration Manager Extension Utility

Note some devices may have 9k in the sysDescr instead of K9,

See the note on that page:

"Add cisco_ssh_check=9K in the <SPECROOT>/SS/.vnrmc file and restart the SpectroSERVER, to place the Cisco 9300 series devices in the correct device family."

This can apply to other cisco device families as well.
